BRIDGE MODE 2 CHANNEL AMPLIFIER
For increasing the output power, the amplifier can be run in bridge mode.
The minimum speaker impedance may be 4 Ohm. When running in bridge
mode, only mono replay is possible.

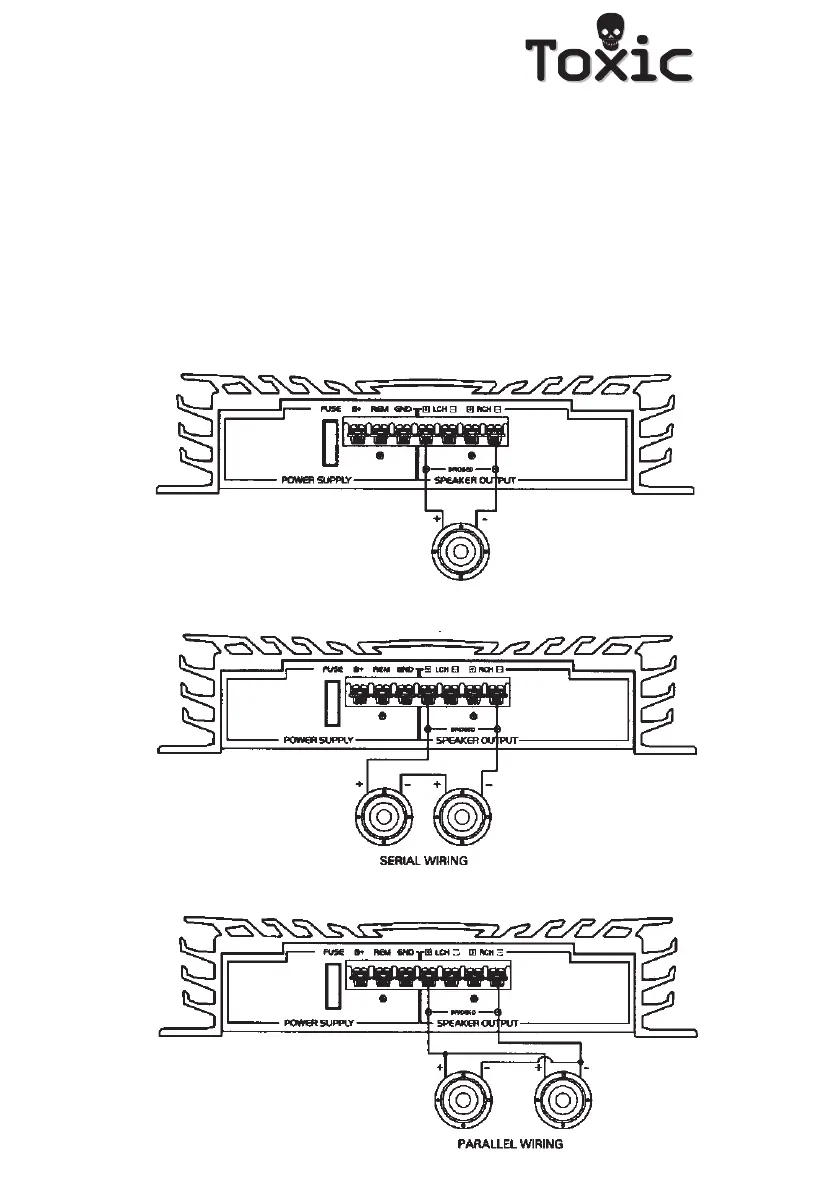

Bridge operation with 1 loudspeaker:
Bridge operation with 2 loudspeakers (4 ohm) in series connection:
Bridge operation with 2 loudspeakers ( 8 ohm) in parallel connection:
