HGM410N/HGM420N GENSET
CONTROLLER USER MANUAL
14
Suggestion: Suggestion: Expand relay with high capacity in start and fuel output is recommend.

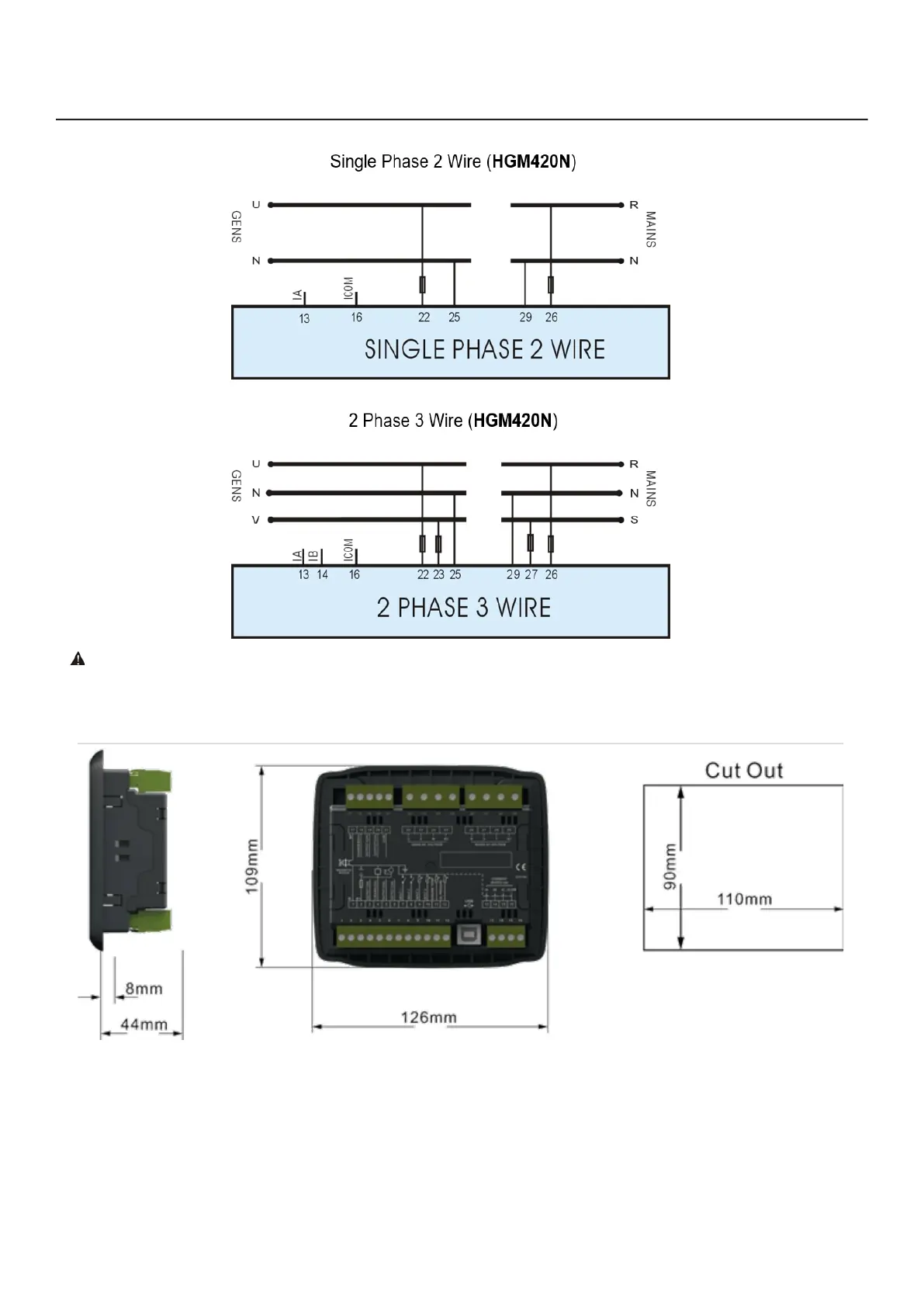

6.1 OVERALL DIMENSION AND PANEL CUTOUT
1) Battery Voltage Input1) Battery Voltage Input
HGM400N series controller can suit for widely range of battery voltage DC(8~35)V. Negative of battery must be
connected with the engine shell. The diameter of wire from power supply to battery must be over 2.5mm2. If oating
charge congured, please rstly connect output wires of charger to battery’s positive and negative directly, then,
connect wires from battery’s positive and negative to controller’s positive and negative input ports in order to pre-
vent charge disturbing the controller’s normal working.
