2005 CAMRY (EWD586U)
44
G ELECTRICAL WIRING ROUTING

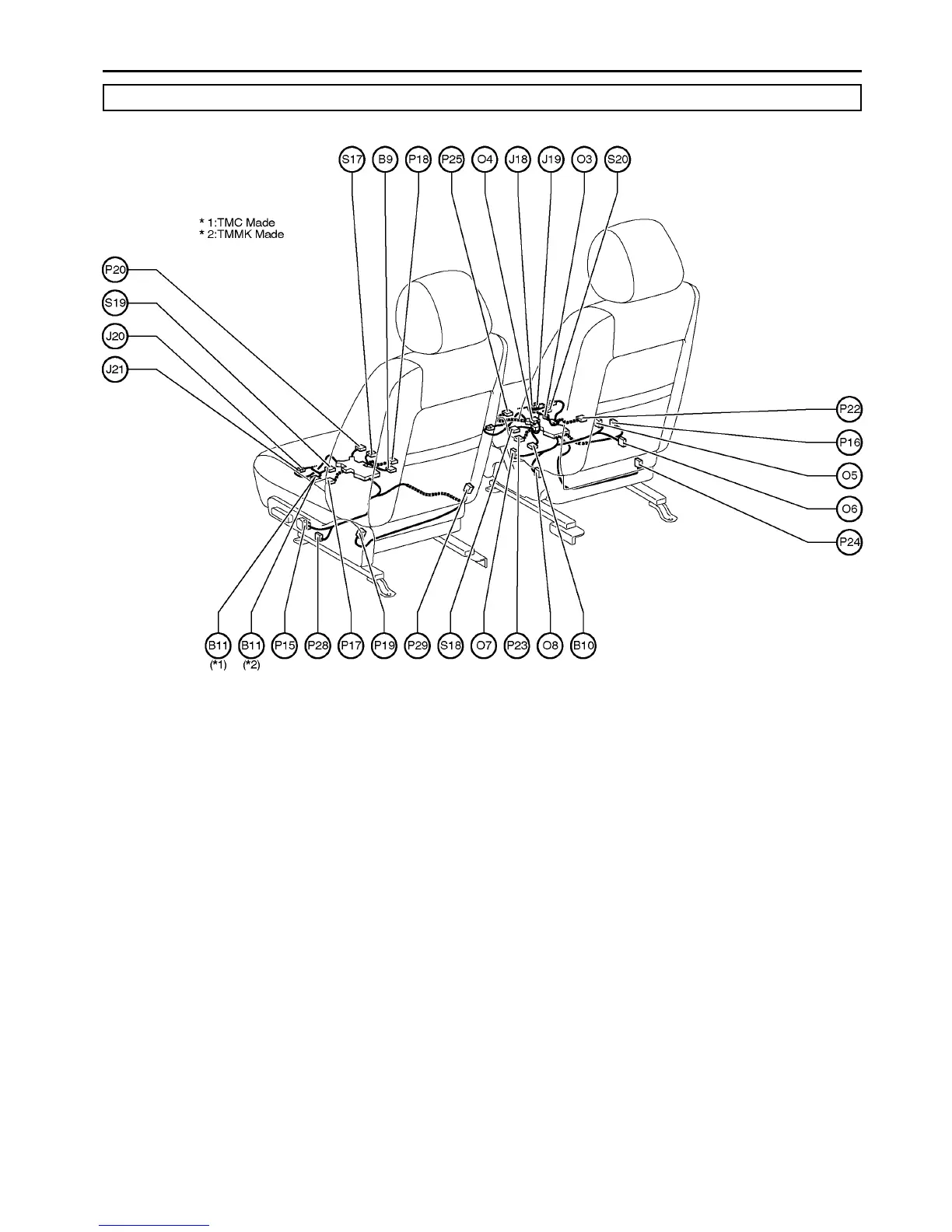

Position of Parts in Seat
[w/ Power Seat]
B 9 Buckle SW LH
B10 Buckle SW (Front Passenger’s Side)
B 11 Buckle SW LH
Seat Position Airbag Sensor
J 18 Junction Connector
J 19 Junction Connector
J 20 Junction Connector
J 21 Junction Connector
O 3 Occupant Classification ECU
O 4 Occupant Classification ECU
O 5 Occupant Classification Sensor Front RH
O 6 Occupant Classification Sensor Rear RH
O 7 Occupant Classification Sensor Front LH
O 8 Occupant Classification Sensor Rear LH
P15 Power Seat Control SW (Driver’s Seat)
P16 Power Seat Control SW (Front Passenger’s Seat)
P17 Power Seat Motor (Driver’s Seat Front Vertical Control)
P18 Power Seat Motor (Driver’s Seat Lifter Control)
P19 Power Seat Motor (Driver’s Seat Reclining Control)
P20 Power Seat Motor (Driver’s Seat Slide Control)
P22 Power Seat Motor
(Front Passenger’s Seat Front Vertical Control)
P23 Power Seat Motor
(Front Passenger’s Seat Lifter Control)
P24 Power Seat Motor
(Front Passenger’s Seat Reclining Control)
P25 Power Seat Motor
(Front Passenger’s Seat Slide Control)
P28 Power Seat Control SW
(Driver’s Seat Lumbar Support Control)
P29 Power Seat Motor
(Driver’s Seat Lumbar Support Control)
S17 Seat Heater LH
S18 Seat Heater RH
S19 Side Airbag Squib LH
S20 Side Airbag Squib RH
To Next Page
