2005 CAMRY (EWD586U)

G ELECTRICAL WIRING ROUTING

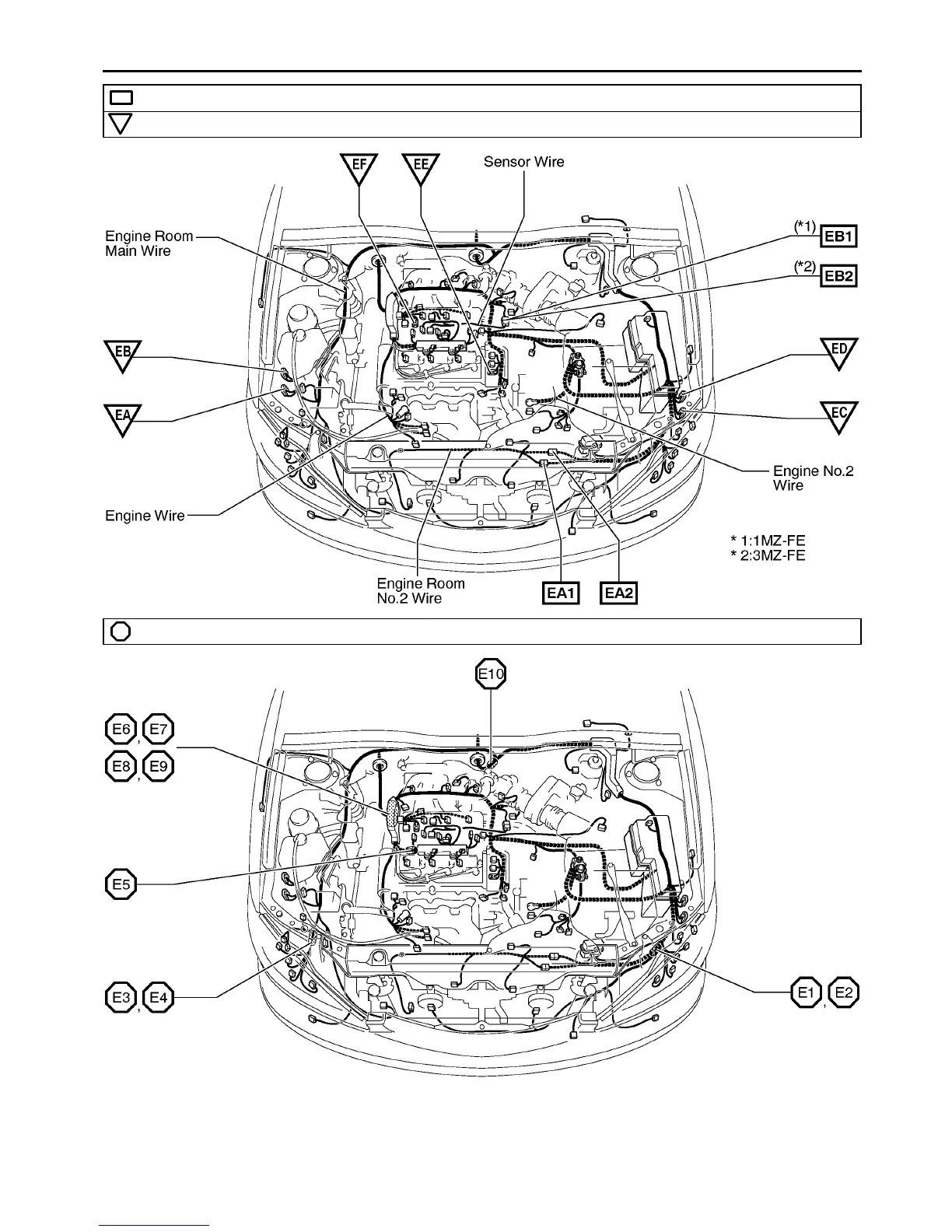

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Ground Points

[1MZ–FE, 3MZ–FE]

: Location of Splice Points

Stop Light5
How to Use this Manual5
Ground Point9
Power Source (Current Flow Chart)10
Engine Room R/B10
Connector List11
Part Number of Connectors12
Continuity and Resistance Check13
Voltage Check13
Troubleshooting13
Finding a Short Circuit14
Disconnecting of Male and Female Connectors14
How to Replace Terminal15
Abbreviations18
Glossary of Terms and Symbols19
Relay Locations21
Engine Compartment21
Body21
Instrument Panel22
Seat22
Engine Room J/B Inner Circuit27
Driver Side J/B Inner Circuit31
Inside-The-Plate Wiring Connection Diagram34
Position of Parts in Engine Compartment37
1Mz–Fe, 3Mz–Fe37
2Az–Fe39
Position of Parts in Body43
W/ Power Seat45
W/O Power Seat46
Location of Connector Joining Wire Harness and Wire Harness47
Location of Ground Points47
Location of Splice Points47
Connector Joining Wire Harness and Wire Harness48
Table of Contents59
2005 Camry Electrical Wiring Diagram System Circuits59
Starting and Ignition for 1MZ–FE and 3MZ–FE65
Starting and Ignition for 2AZ–FE69
Charging73
Engine Control for 1MZ–FE and 3MZ–FE75
Engine Control for 2AZ–FE87
Engine Immobilizer System101
Headlight103
Fog Light109
Automatic Light Control111
- Light Auto Turn off System113
- Interior Light117
- Illumination121
- Turn Signal and Hazard Warning Light125
- Taillight127
- Back–Up Light131
- Navigation and Audio System133
- Audio System for Separate Type Amplifier137
- Audio System for Built–In Type Amplifier141
Combination Meter143
- I Ground Point149
- J Power Source (Current Flow Chart)157
Cruise Control (1MZ-FE, 3MZ-FE)159
Cruise Control (2AZ-FE)159
Electronically Controlled Transmission and A/T Indicator159
(1Mz-Fe, 3Mz-Fe)159
Electronically Controlled Transmission and A/T Indicator (2AZ-FE)159
Engine Control (1MZ-FE, 3MZ-FE)159
Engine Control (2AZ-FE)159
Engine Immobilizer System159
Headlight159
Horn159
Interior Light160
Key Reminder161
Power Outlet179
Power Seat180
- Overall Electrical Wiring Diagram181
- System Index183
