5-33

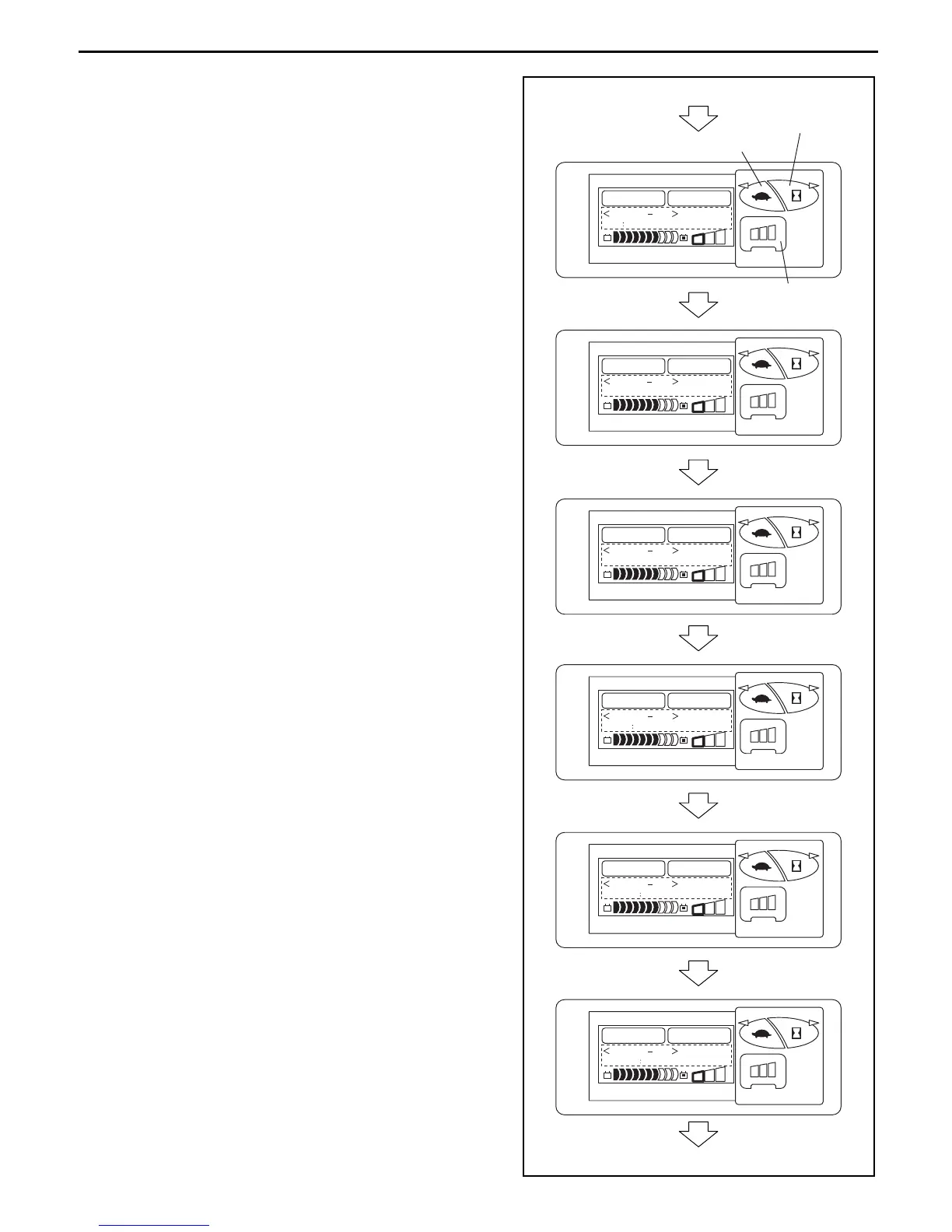

(3) I/O 1-3 screen
TD: Drive motor (1) (2) temperature (°C)
Temperatures of the drive motor (1) (2) is displayed.
• Checks if the temperature measurement function is
functioning properly.
• The temperatures at the time of measurement are
displayed.
(4) I/O 1-4 screen
TP: Pump motor temperature (°C)
Temperature of the pump motor is displayed.
• Checks if the temperature measurement function is
functioning properly.
• The temperatures at the time of measurement are
displayed.
(5) I/O 1-5 screen
TBD:
Traveling AC driver 1/2 board surface temperature
(°C)
Surface temperatures of the traveling AC driver 1/2
board are displayed.
• Checks if the temperature measurement function is
functioning properly.
• The temperatures at the time of measurement are
displayed.
(6) I/O 1-6 screen
TBP:
Material handling AC driver board surface
temperature (°C)
Surface temperature of the material handling AC
driver board is displayed.
• Checks if the temperature measurement function is
functioning properly.
• The temperatures at the time of measurement are
displayed.
(7) I/O 1-7 screen
TEMP: CPU board temperature (°C)
The surface temperature of the main controller CPU
board is displayed.
• Checks if the temperature measurement function is
functioning properly.
• The temperatures at the time of measurement are
displayed.
(8) I/O 1-8 screen
VB48: Battery voltage (V)
The battery voltage is displayed.
Standard: 48 V
2+5/
S
P
H
S
P
H
MENU
I/O1 3
T
D
+25
(3) I/O 1-3 screen
S
P
H
S
P
H
MENU
I/
O
14
T
P
:+25
(4) I/O 1-4 screen
I/O 1-2 screen
S
P
H
S
P
H
MENU
I/O1 5
T
B
D: 2+5/ +25
(5) I/O 1-5 screen
S
P
H
S
P
H
MENU
I/O1 6
T
B
P
+25
(6) I/O 1-6 screen
S
P
H
S
P
H
MENU
I/O1 7
T
E
MP
+25. 0
(7) I/O 1-7 screen
S
P
H
S
P
H
MENU
I/O1 8
V
B
48
50. 0
(8) I/O 1-8 screen
I/O 1-9 screen
Press button (3)
Press button (3)
Press button (3)
Press button (3)
Press button (3)
Press button (3)
Button (3)
Button (1)
Button (2)
