1998 COROLLA(U)
49
—Built- in child restraint
The built- in child restraint system mainly
consists of a child seat integrated in the

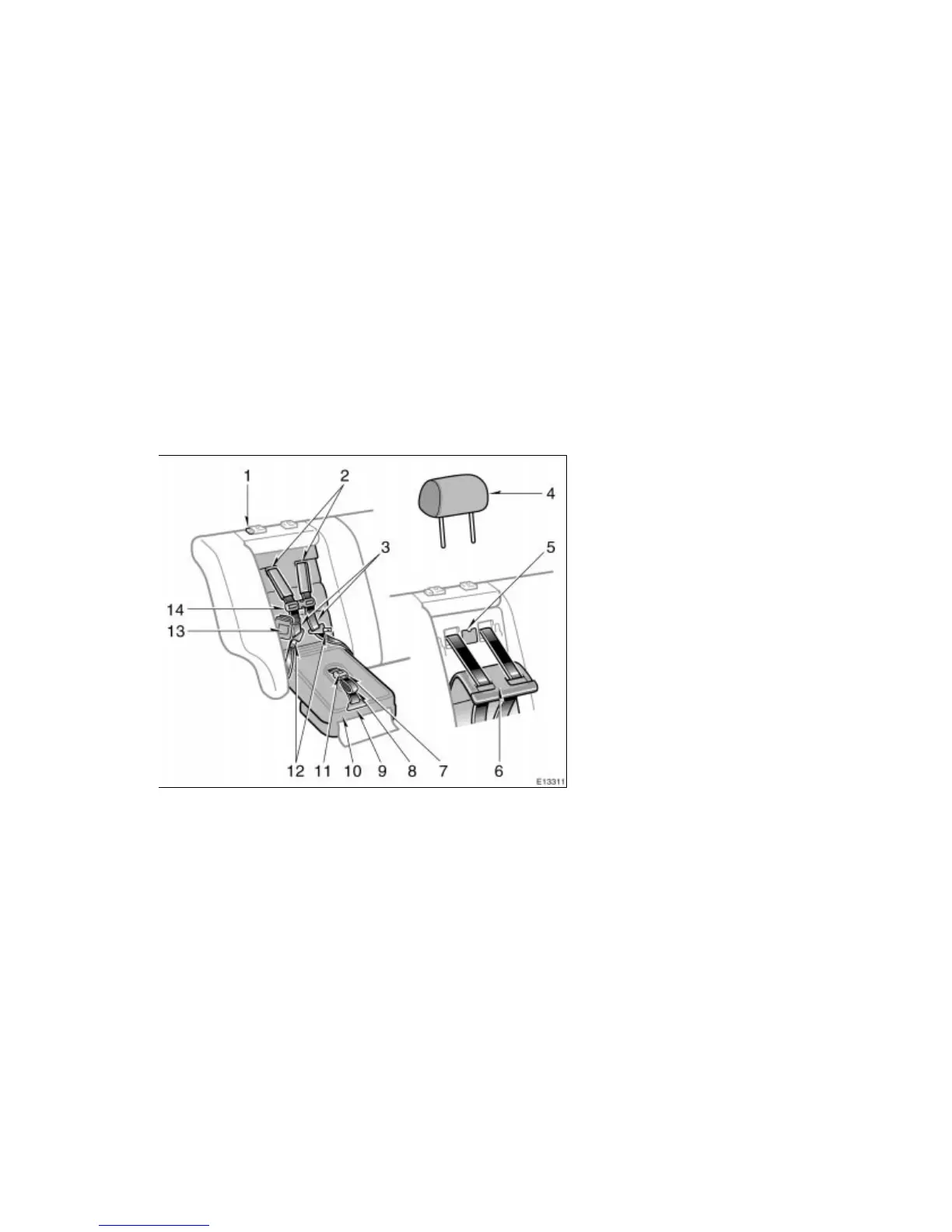

rear seat and 5- point seat belts. Refer to
the illustration to become familiar with the
parts of the system. This child restraint
system conforms to U.S. Motor Vehicle
Safety Standard No.213 and Canada Motor
Vehicle Safety Standard No.213.4.
1. Head restraint lock release button
2. Shoulder pads
3. Shoulder belts
4. Head restraint
5. Maximum shoulder height indicator
label
6. Removable pad
7. Seat belt buckle
8. Seat belt release strap (black)
9. Seat belt adjustment strap (gray tab)
10. Child seat cushion
11. Seat belt buckle release button
12. Seat belt tabs
13. Owner’s manual supplement
14. Shoulder belt clip
To Next Page
