3. HEAD UNIT INSTALLATION – C-HR SATELLITE NAVIGATION
C-HR │ Dec ‘16 Onwards Issue: 2.0 │ Date: July 2018 │ Page 4 of 10

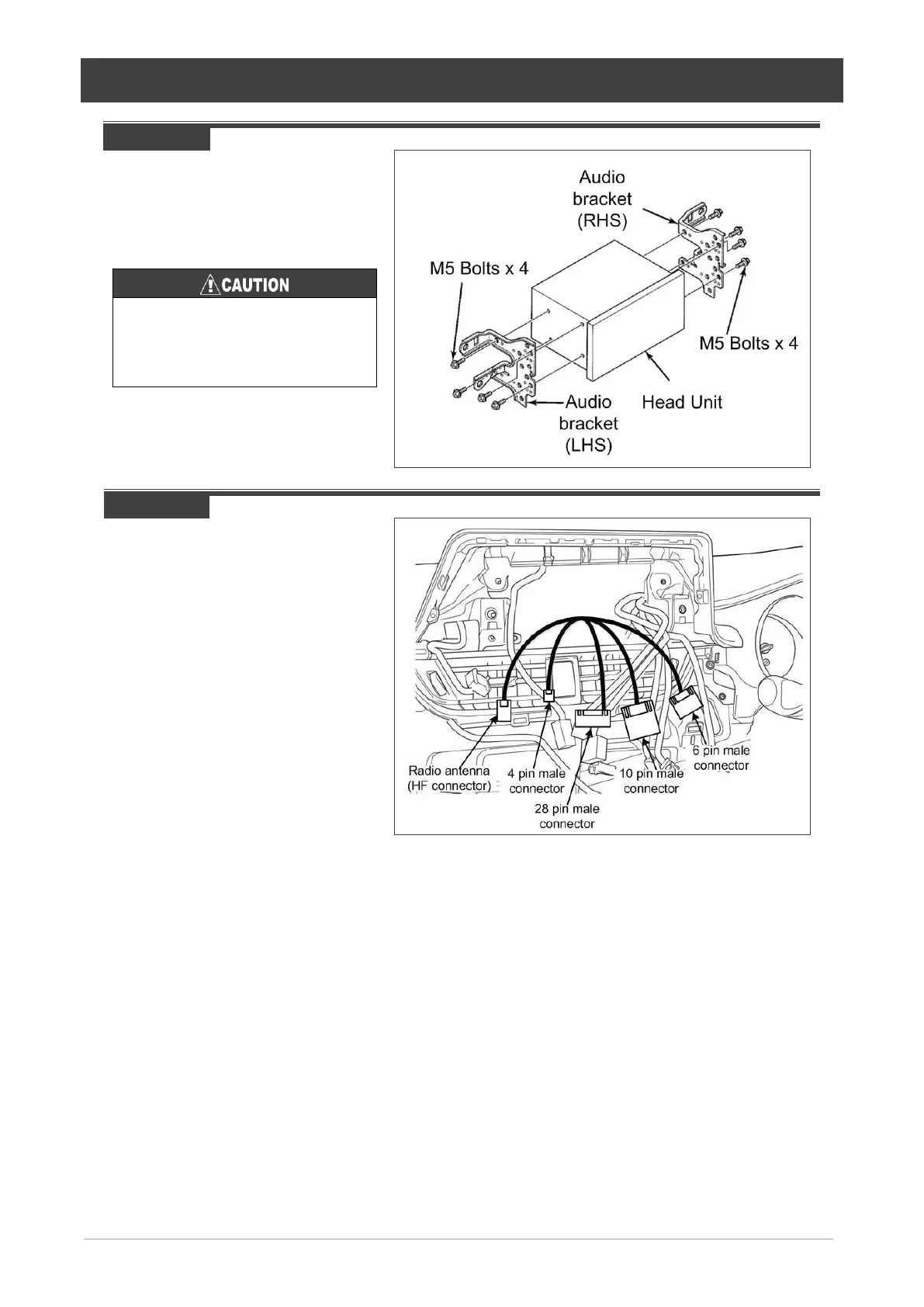

Step 1.
Attach brackets to Head Unit as
shown, using the M5x8 Bolts
provided.
.
DO NOT USE SELF-TAPPING SCREWS!
 Using self-tapping screws on the Head Unit
will damage internal parts of the unit and will
render the Head Unit inoperable or un-
repairable.
Step 2.
Locate the vehicle connectors as
shown in the diagram.
