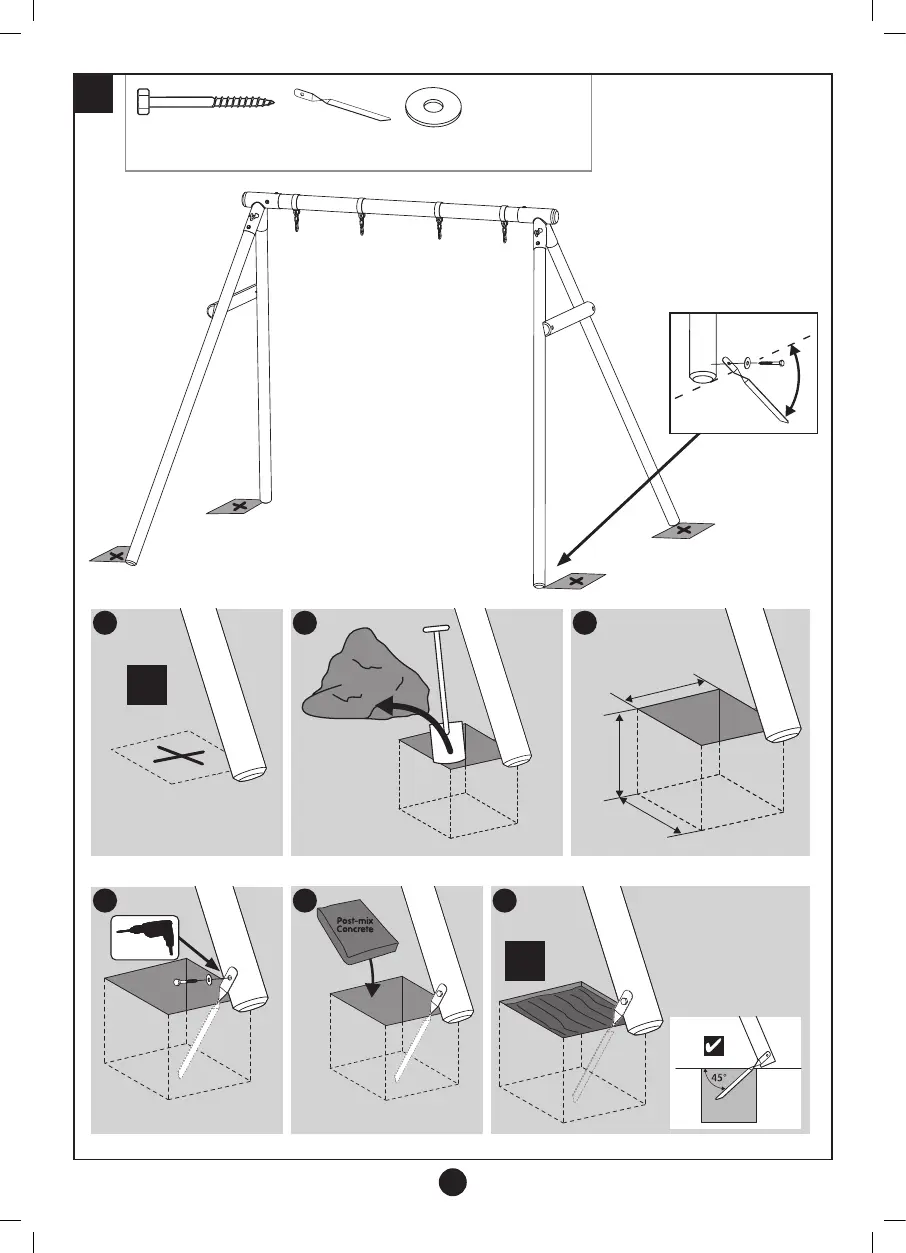

TP active fun Single - Assembly Step 9: Ground Anchoring; Stake and Concrete Anchoring

14
Single, Double, Triple and Double with Extension
70mm FA8439
x4
PR5069
x4
x4
Ensure the stakes are
positioned into the
setting Post-Mix concrete.
Warning: Never
set the legs of the
playset in concrete.
Dig holes:
300mm x
300mm x
300mm deep.
Mark leg/hole position.
Not
Supplied.
Fill holes with Post-Mix concrete.Fix stakes to legs.
1 2 3
5 64
x4
TP814
300mm
300mm
300mm
M8 x25mm
FA8440
x4
45°
9
5mm
