TP-Link AC500 - 7.7.2 Application for Onekey Online

76

Network Topology

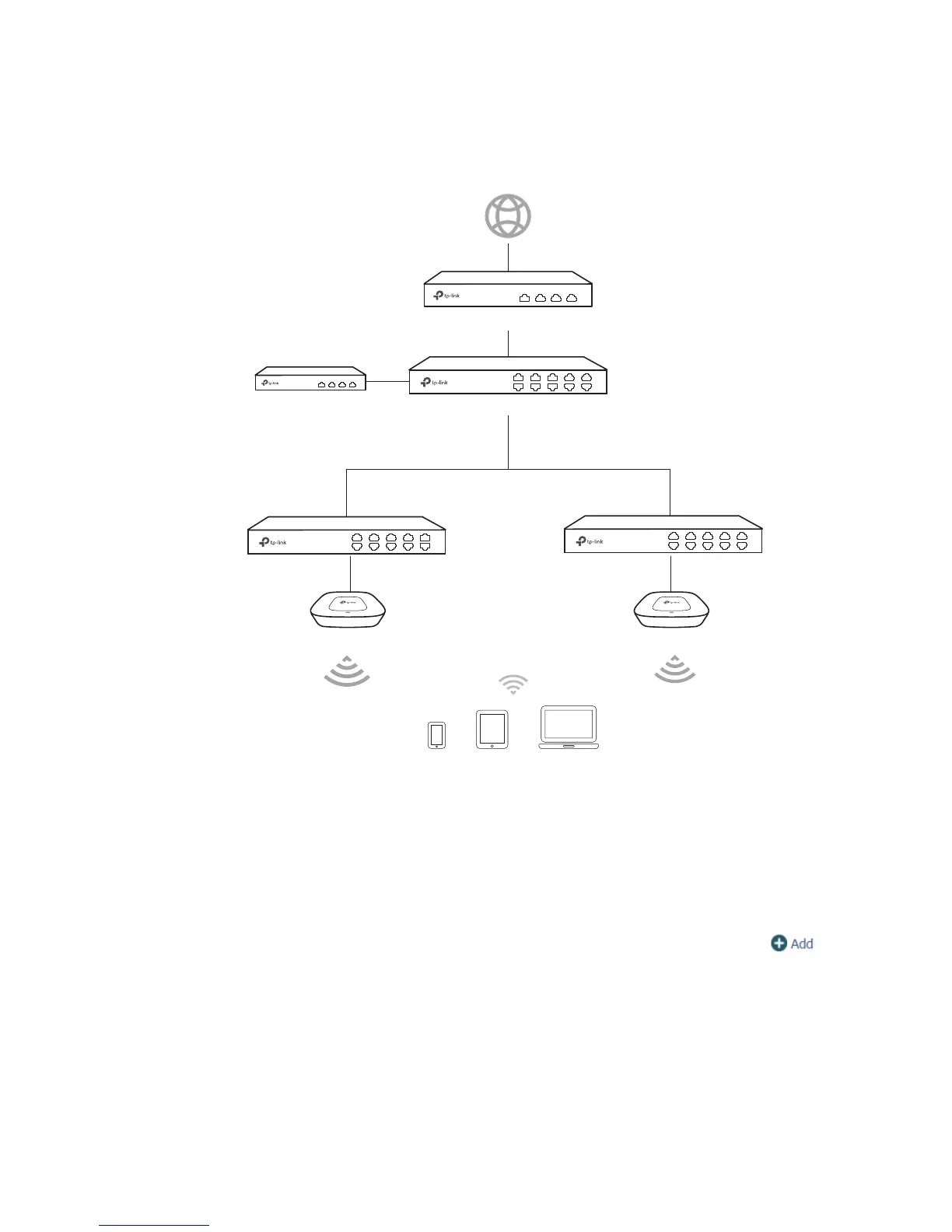

Figure 7-37 Network Topology
Clients
CAP CAP
Core Switch
AC
PoE Switch PoE Switch
Router
Internet

Configuration Steps
1 Create SSID
Create an SSID for the clients in the Wireless module.
2 Configure the Splash Page
Choose the menu Authentication > Portal Authentication > Splash Page. Click
to
add a new entry.
Set the Authentication Type as Web Authentication and set the related parameters. Here
you can upload the logo image and a promotional image of the hotel to the device.
