Network Topology

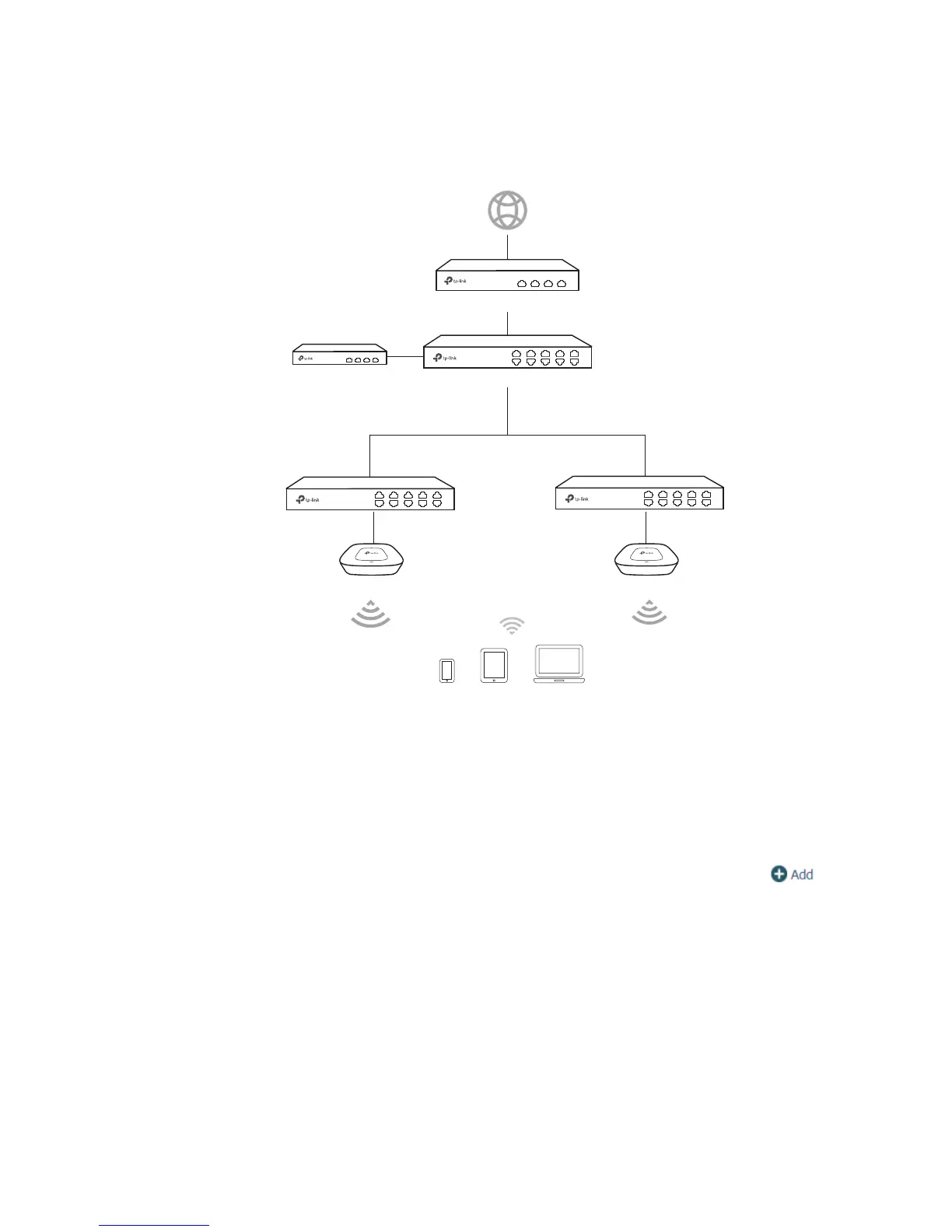

Figure 7-44 Network Topology
Clients
CAP CAP
Core Switch
AC
PoE Switch PoE Switch
Router
Internet

Configuration Steps
1 Create SSID
Create an SSID for the clients in the Wireless module.
2 Configure the splash page.
Choose the menu Authentication > Portal Authentication > Splash Page. Click
to
add a new entry.
Set the Authentication Type as Voucher and set the related parameters.
