Archer C2 AC750 Wireless Dual Band Gigabit Router
- 14 -
3) If the connection type detected is PPPoE/Russia PPPoE, the next screen will appear as
shown in Figure 3-9. Configure the following parameters and then click Next to continue.

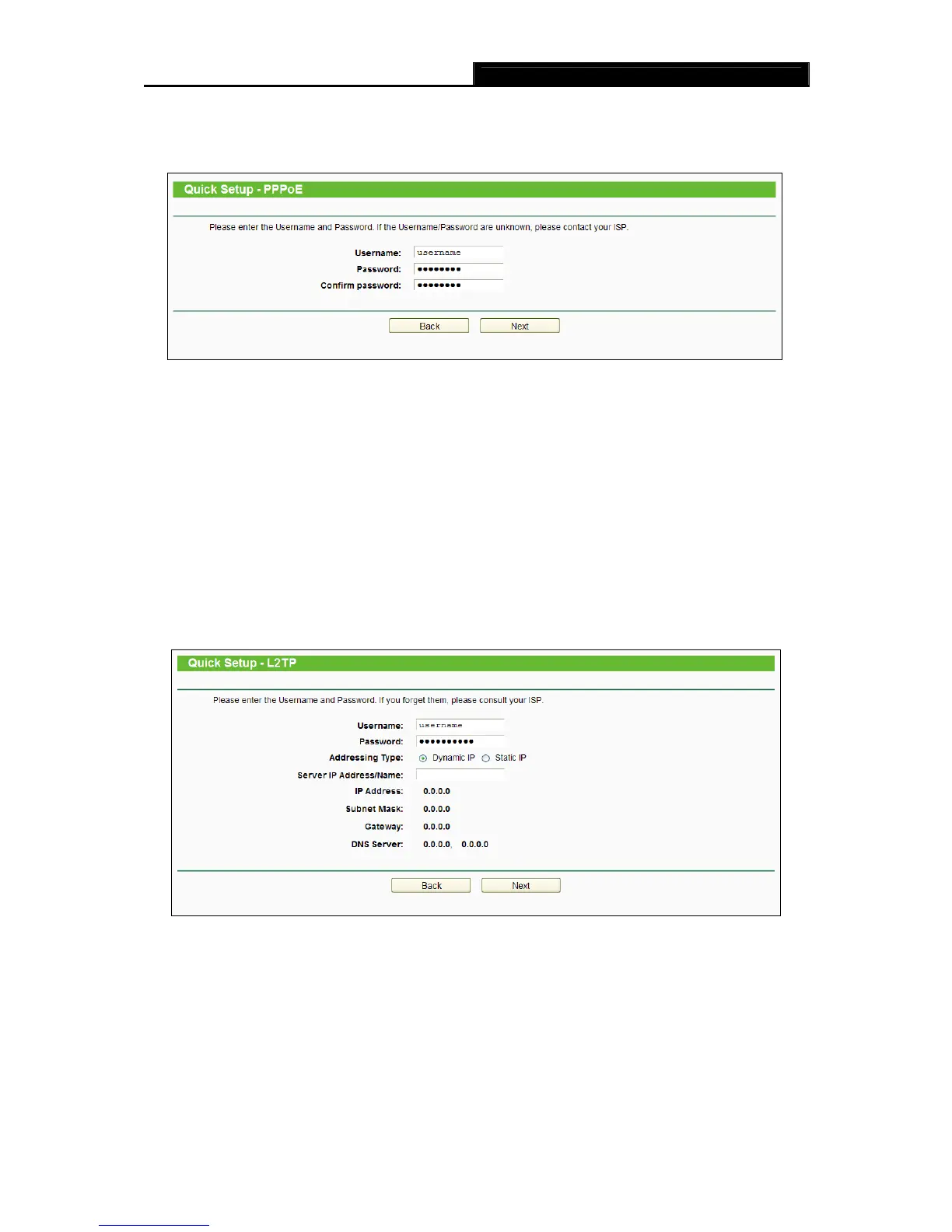

Figure 3-9 Quick Setup – PPPoE/Russia PPPoE
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Confirm Password - Enter the password again to make sure that the password is
correct.
4) If your connection type is L2TP/ Russia L2TP, select L2TP/Russia L2TP in Figure 3-6
and the next screen will appear as
shown in Figure 3-10.Configure the following
p
arameters and then click Next to continue.
Figure 3-10 Quick Setup – L2TP/Russia L2TP
Username/Password - Enter the Username and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have
been provided by your ISP. Then please enter server IP address or domain name provided by
your ISP, and also enter the corresponding parameters.
