TP-Link RE505X Manual

· Certication
CE, RoHS
· System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser
· Package Contents
Wi-Fi Range Extender RE505X
Quick Installation Guide
Others
Hardware
· Button: WPS Button, Reset Button
· Port: 1 Gigabit Ethernet Port
· Antenna: 2 External Antennas
· Power Consumption: 10W
· Dimensions (W × D × H): 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Wireless
· Wireless Standards: IEEE 802.11a/n/ac/ax 5 GHz, IEEE
802.11b/g/n 2.4 GHz
· Frequency: 2.4 GHz and 5 GHz
· Signal Rate: 300 Mbps at 2.4 GHz, 1200 Mbps at 5 GHz
· Transmit Power: 2.4G
＜
20dBm, 5G
＜
30dBm
· Reception Sensitivity:
5 GHz:
11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm
11ac HT20 MCS8:-70dBm
11ac HT40 MCS9:-66dBm
11ac HT80 MCS9:-62dBm
2.4 GHz:
11g 6Mbps:-94dBm, 11g 54Mbps:-77dBm
11n HT20 MCS7:-75dBm, 11n HT40 MCS7:-72dBm
· Wireless Function: Enable/Disable Wireless Radio,
Wireless Statistics
· Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2
encryptions
Specications
Attention: This device may only be used indoors in all EU member states and EFTA countries.
Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies CO., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2019 TP-Link Technologies Co., Ltd. All rights reserved.
†
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specications. Actual wireless data throughput and wireless coverage per ft² are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials,
obstacles, volume and density of trac, and client location.
‡
The product may not be compatible with routers or gateways with rmware that has been altered, is based on open source programs, or is non-standard or outdated.
§
Smart Roaming is designed for devices that support the 802.11k/v standard.
△
Up to 4x Capacity refers to 4x increase in median throughput under dense environment compared to 11ac wave 2 range extender.
*Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
For more information, please visit
https://www.tp-link.com/home-networking/range-extender/re505x/
or scan the QR code left
www.tp-link.com

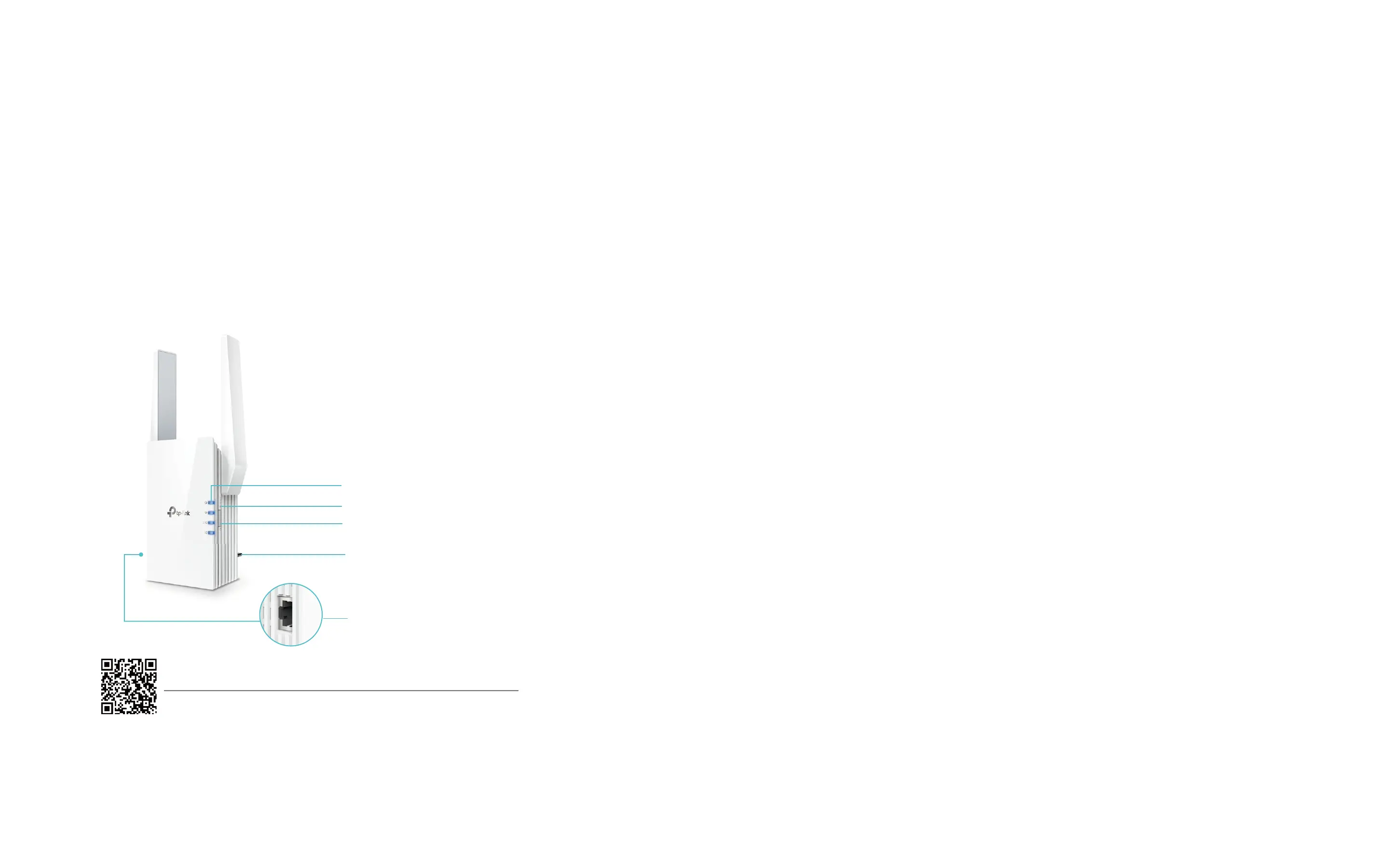

LEDs
WPS Button
Plug
TP-Link AX1500 Wi-Fi Range Extender
RE505X
Reset Button
Ethernet Port

TP-Link RE505X Specifications

Wireless Specifications

wireless standards	IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz
frequency	2.4 GHz and 5 GHz
signal rate	300 Mbps at 2.4 GHz, 1200 Mbps at 5 GHz

Power

transmit power 2.4G	<20dBm
transmit power 5G	<30dBm
power consumption	10W

Dimensions and Physical Features

dimensions	2.9×1.8×4.9 in. (74.0×46×124.8 mm)
antenna	2 External Antennas
port	1 Gigabit Ethernet Port
