TL-MR3420 3G/3.75G Wireless N Router
-13-
Internet service is successfully detected by the Router.

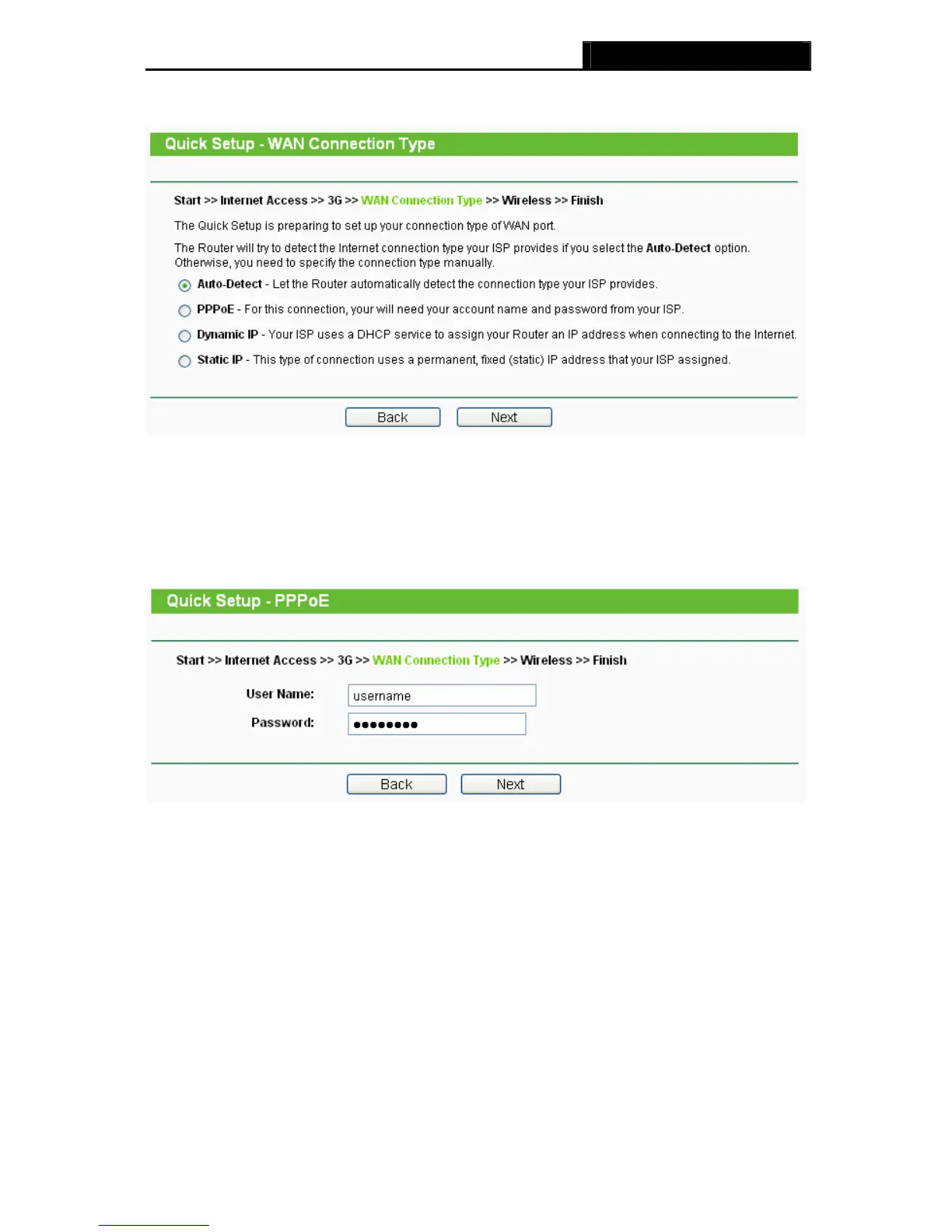

Figure 3-8
¾ If the connection type detected is PPPoE, the next screen will appear as shown in Figure 3-9.
Enter the User Name and Password provided by your ISP. These fields are case sensitive. If
you have difficulty with this process, please contact your ISP.
Figure 3-9 Quick Setup – PPPoE
¾ If the connection type detected is Dynamic IP, the next screen will appear as shown in Figure
3-11. Then you can go on with the wireless configuration.
¾ If the connection type detected is Static IP, the next screen will appear as shown in Figure
3-10. Enter the parameters in the corresponding blanks.
