Note:
TL-POE10R is applicable to the device that has no external
connections other than the Ethernet cables.
1.2 Features
¾ Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3af
standards
¾ Data and Power carried over the same cable
¾ Supports optional 5V DC or 12V DC power supply
¾ Supports Plug-and-Play for the devices，without any configuration
¾ Elegant appearance with space-saving mini size
Chapter 2. Identifying External Components

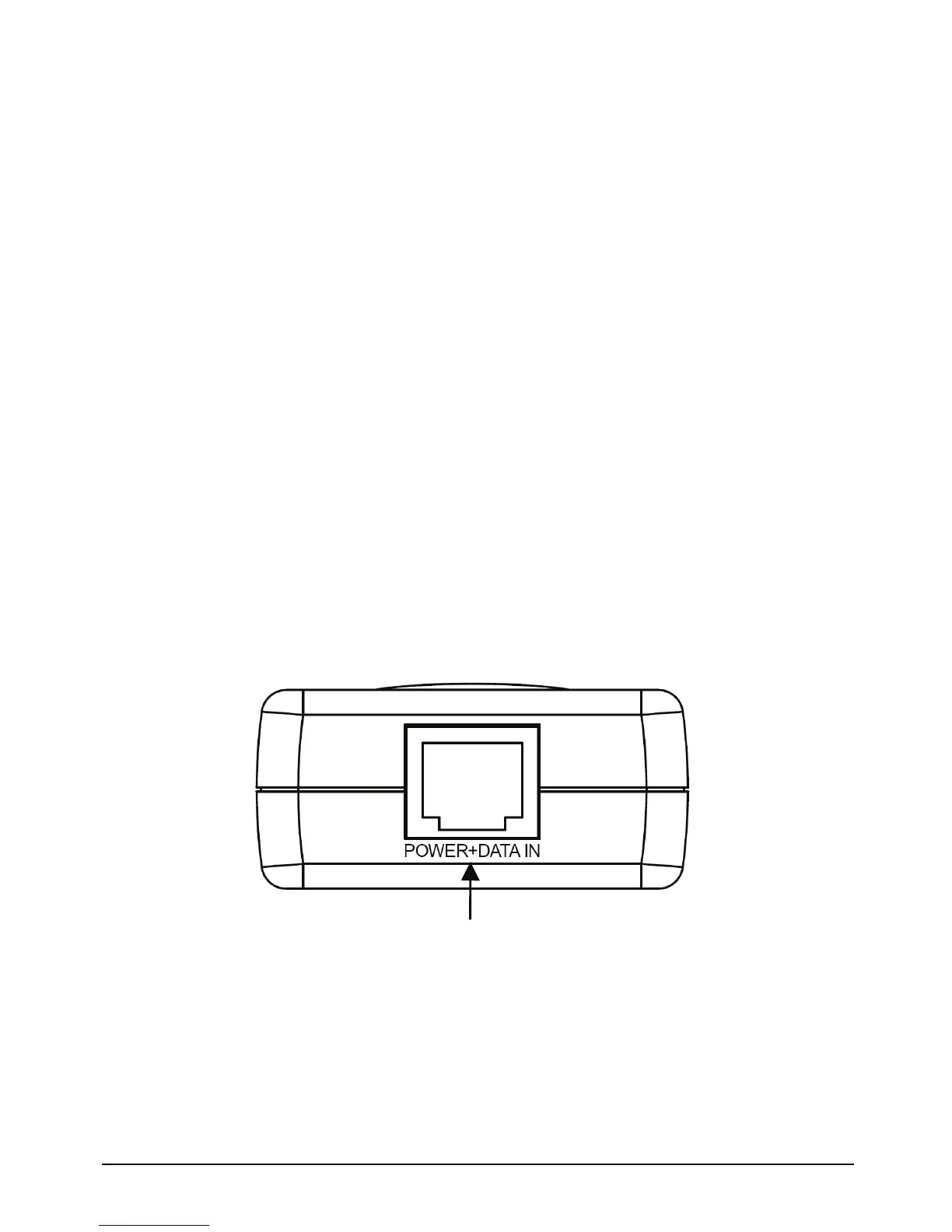

POWER+DATA IN: Connect to the PSE or PoE Supplier
Adapter with a CAT5 UTP cable.
