Chapter 3. Connecting the PoE Receiver Adapter
You can use TL-POE10R PoE Receiver Adapter with PSE or PoE
Supplier Adapter to expand your network to where there are no
power lines or outlets, where you wish to fix devices such as APs, IP
Cameras or IP Phones, etc. The following steps will tell you how to
connect the PoE Receiver Adapter correctly.

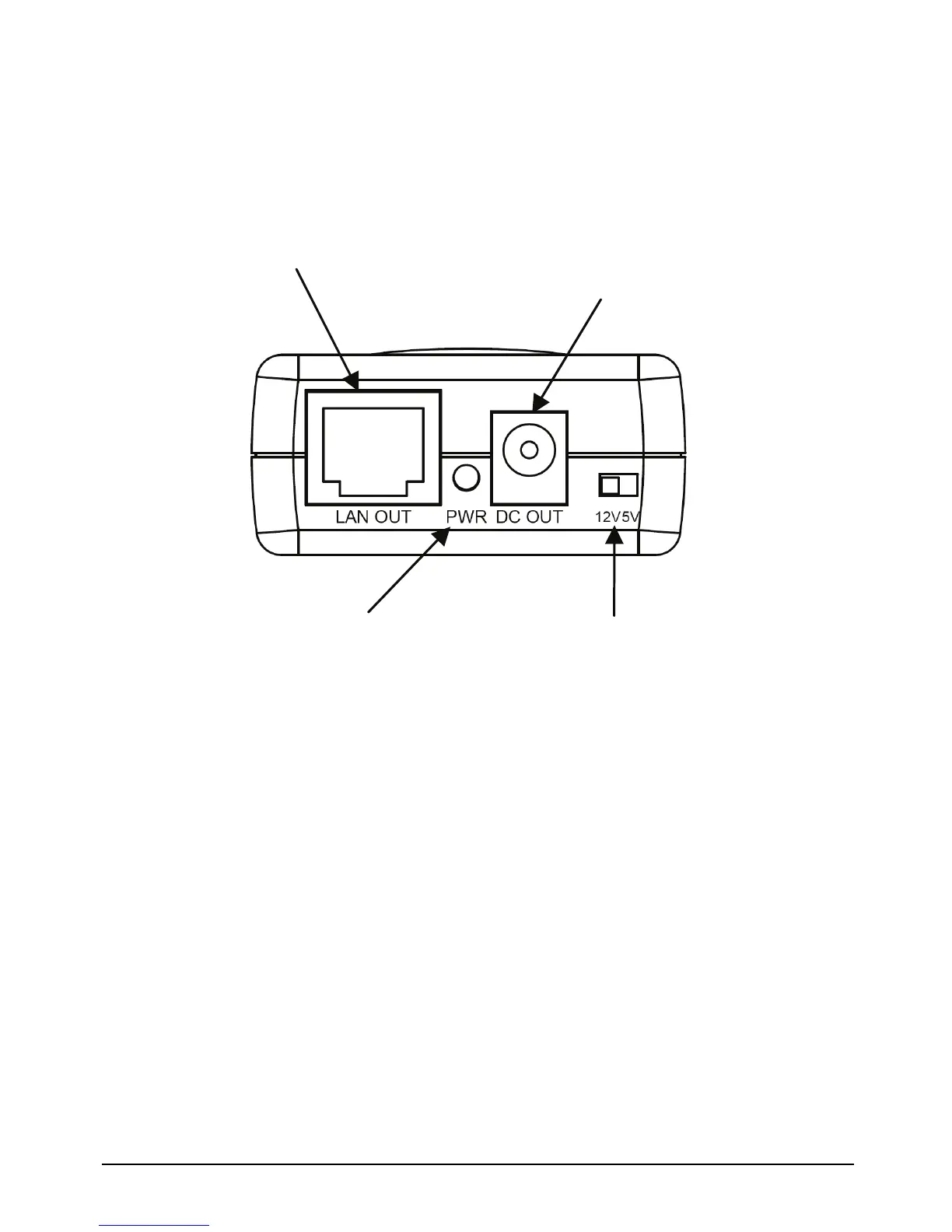

LAN OUT: Connect to
the Ethernet device with
CAT5 UTP cable to
transmit data.
DC OUT: Connect to the
power port of the Ethernet
device with the provided
power cable to supply the
p
ower of 5V or 12V DC.
PWR: Power LED, a
steady green light
indicates that the
connected PSE or
PoE Supplier Adapter
can supply power.
Power-mode switch:
You can choose the
DC output as 12V or
5V by turning the
switch left or right.
