- 72 -

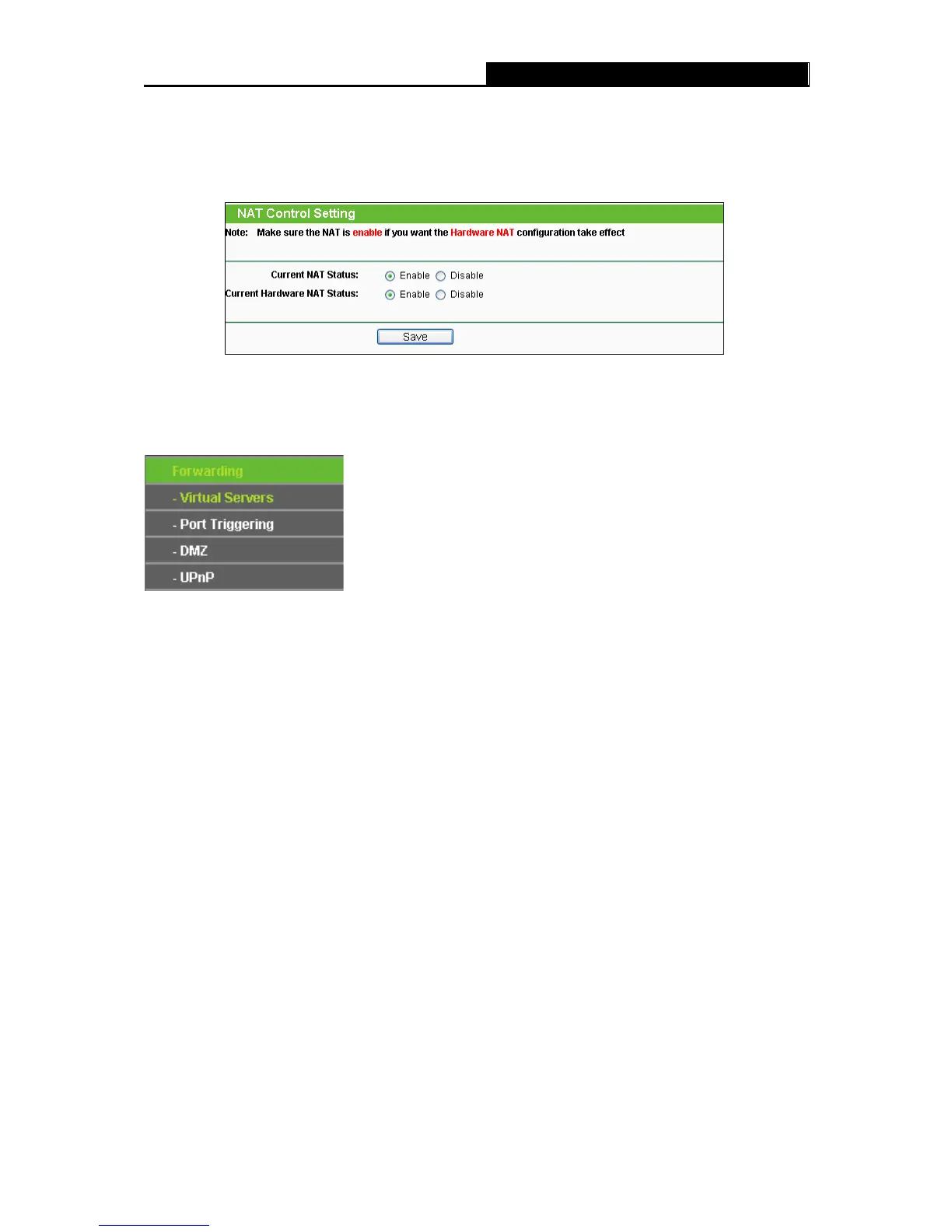

4.11 NAT
Choose “NAT”, and you can enable or disable the NAT function.
Figure 4-64 The Forwarding menu
4.12 Forwarding
Figure 4-65 The Forwarding menu
There are four submenus under the Forwarding menu (shown in Figure 4-65): Virtual Servers,
Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the
corresponding function.
4.12.1 Virtual Servers
Choose menu “Forwarding
Virtual Servers”, and then you can view and add virtual servers in
the next screen (shown in
Figure 4-66). Virtual servers can be used for setting up public services
on your LAN. A virtual server is defined as a service port, and all requests from Internet to this
service port will be redirected to the computer specified by the server IP. Any PC that was used
for a virtual server must have a static or reserved IP address because its IP address may change
when using the DHCP function.
