54M
Wireless
Adapter User GuideTL-WN310G
- 15 -

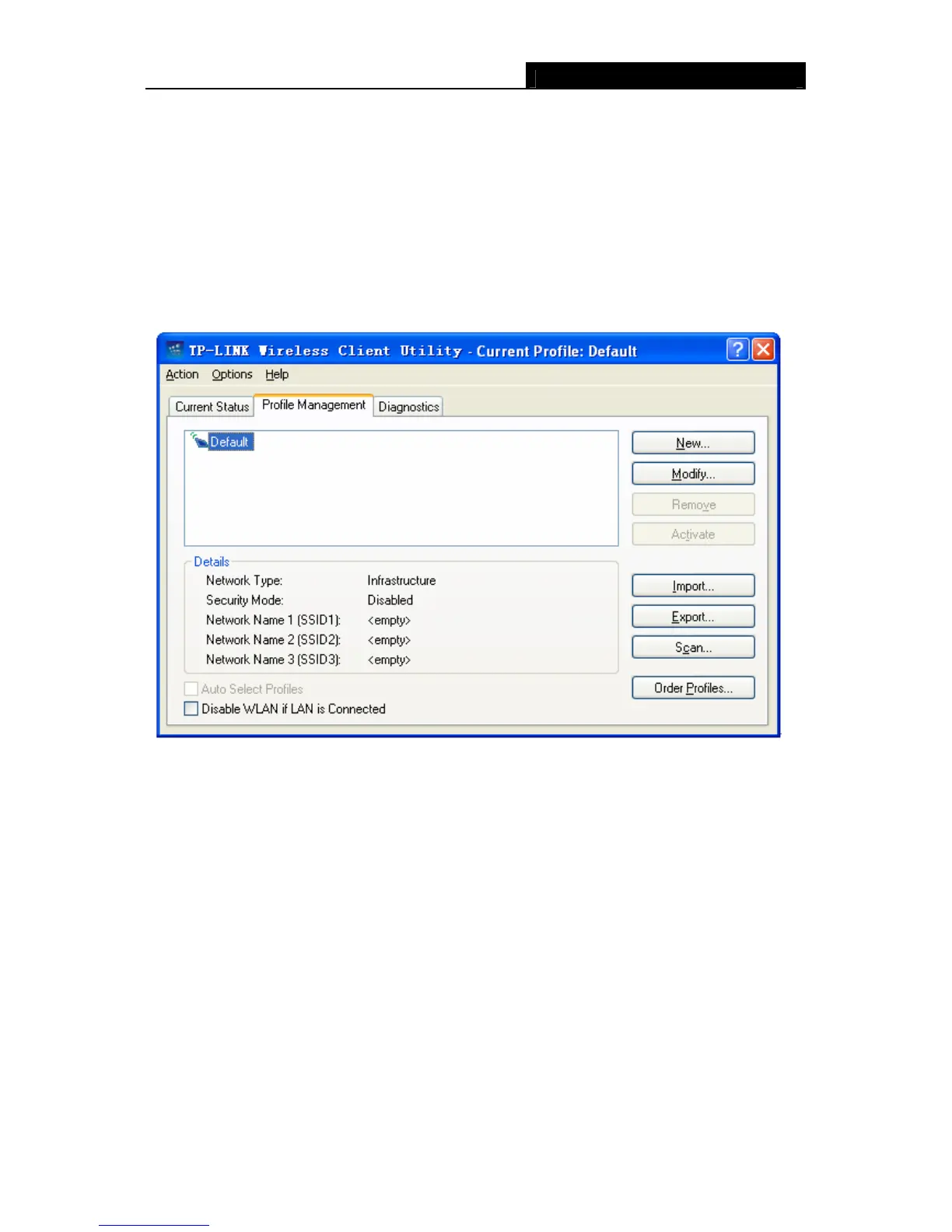

Figure 3-2. The Profile Management screen provides tools to:
¾ Add a profile
¾ Edit a profile
¾ Remove a profile
¾ Switch to another Profile
¾ Import a Profile
¾ Export a Profile
¾ Scan Available Networks
¾ Order profiles
Figure 3-2
3.2.1 Add or Modify a Configuration Profile
To add a new configuration profile, click New on the Profile Management tab. To modify a
configuration profile, select the configuration profile from the Profile list and click Modify.
The Profile Management dialog box will display a screen similar to that shown in Figure 3-3.
1. Edit the General tab
¾ Profile Name - Identifies the configuration profile. This name must be unique. Profile
names are not case-sensitive.
¾ Client Name - Identifies the client machine.
¾ Network Names (SSIDs) - The IEEE 802.11 wireless network name. This field has a
maximum limit of 32 characters.
