TP-Link TL-WN851N User Manual

TL-WN851N 300Mbps Wireless N PCI Adapter
34
Chapter 4 QSS Configuration
QSS (Quick Secure Setup) function allows you to add a new wireless device to an existing
network quickly.
If the wireless card supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless card and router using either Push Button Configuration (PBC)
method or PIN method.
First, the QSS software should be installed. Insert the Resource CD into your CD-ROM drive,
and the Figure 4-1 will appear. To continue, select the TL-WN851N.There will be a menu
including: Install Driver & Utility, Install QSS and User Guide.

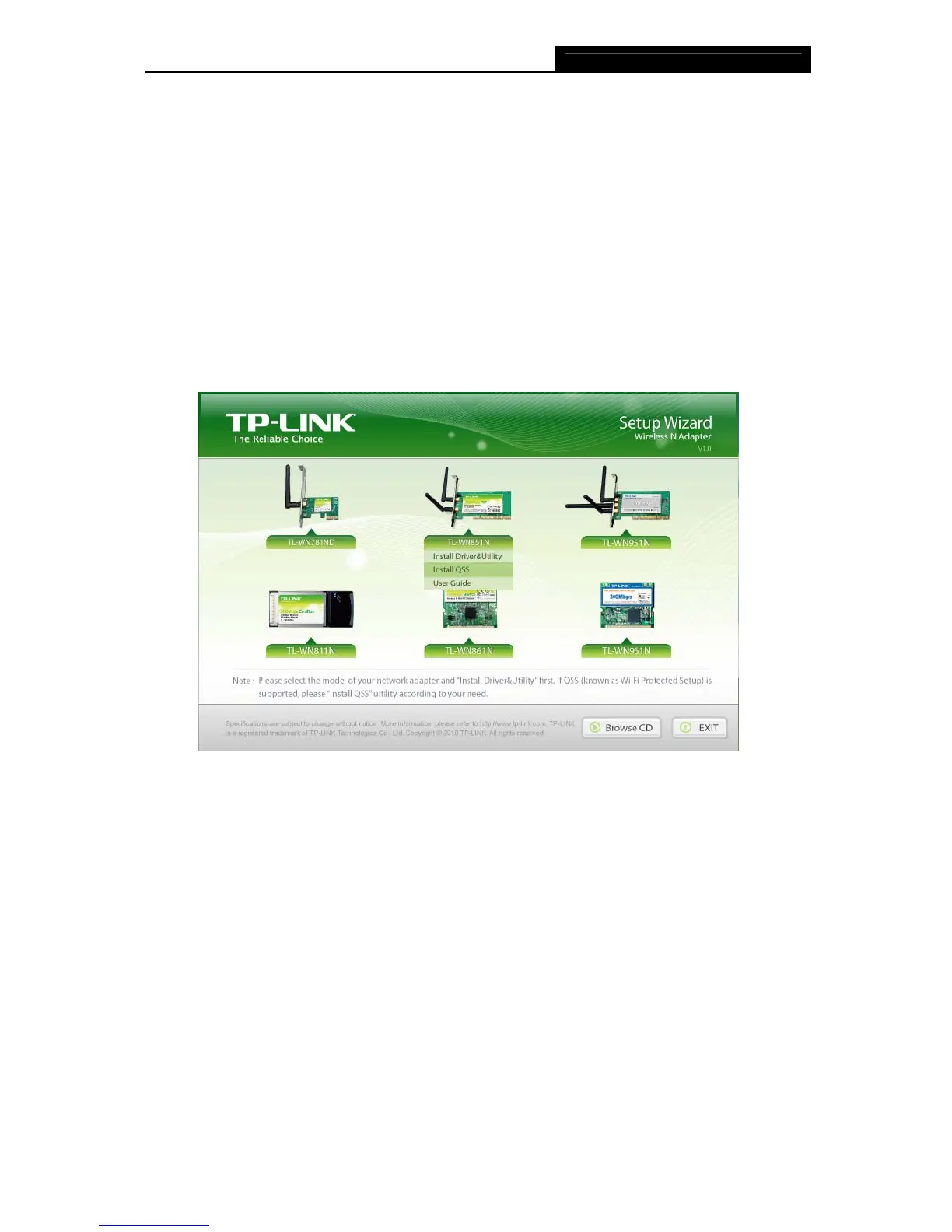

Figure 4-1
Next, select Install QSS to load the following screen.

TP-Link TL-WN851N Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK
Maximum data transfer rate	300 Mbit/s
Connectivity technology	Wireless
Gain	2 dBi
Dimensions (WxDxH)	133 x 121 x 22 mm
Compliance industry standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Compatible operating systems	Windows 2000/XP/Vista/7
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Chipset	Atheros
Internal	No
Certification	CE, FCC
