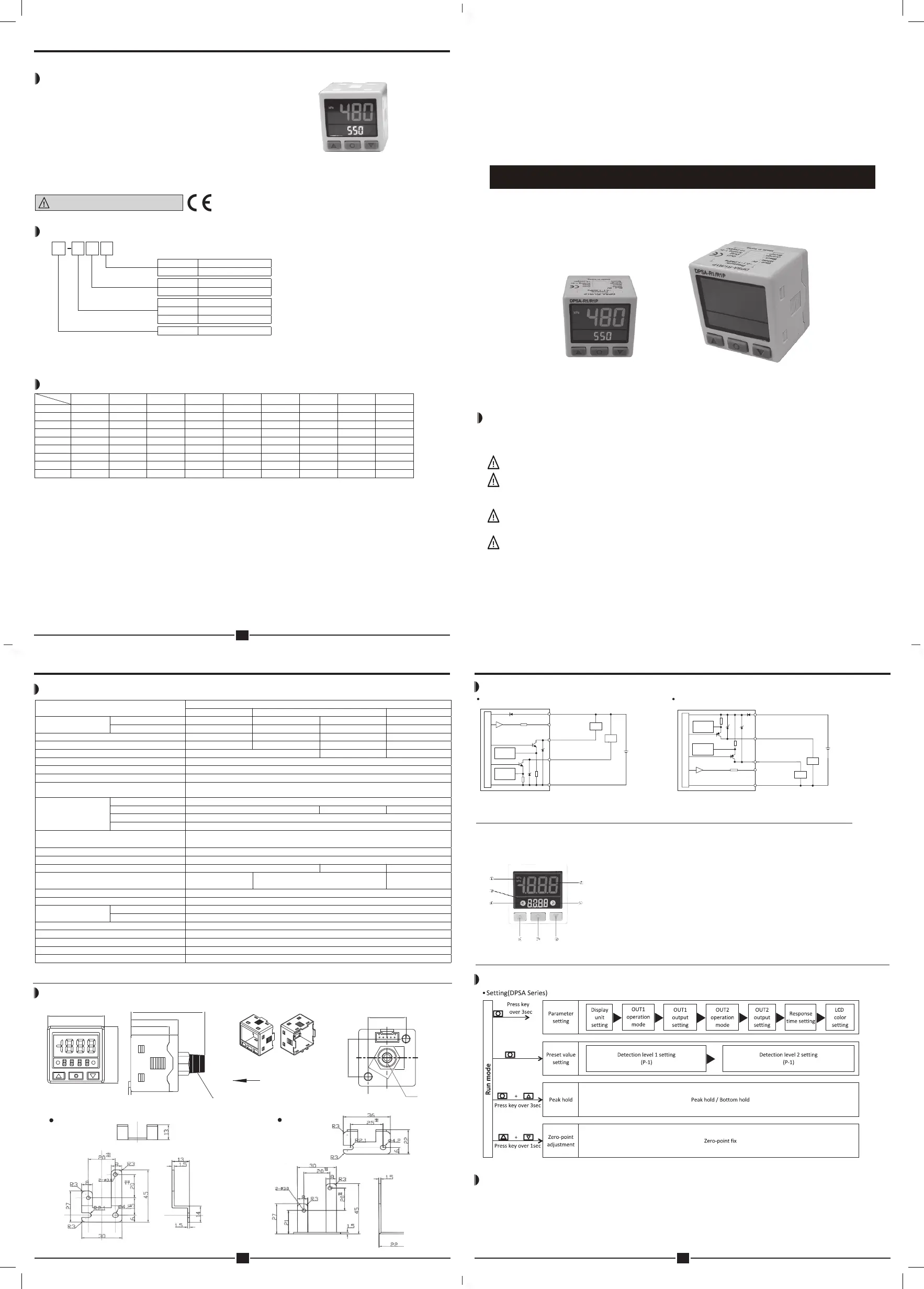

3
DPSA Series
Pressure Sensor
① Pressure unit subdisplay : The current set pressure unit is displayed.
Settings other than Mpa and Kpa are possible but not displayed.
② 2 color main dispaly : Detecting pressure value, Various display setting value
and erro contents.
③ Setting value indicator : Set pressure value, Various display setting mode.
④ Out 1 lamp : Lights during OUT1 operation.
⑤ Out 2 lamp : Lights during OUT2 operation.
⑥ UP key : Used to change the setting value in the measurement mode to higher
lever or to change the pressure unit, output mode, output mode setting,
response time, LCD color setting etc.
⑦ SET key : Enter parameter setting and save setting value.
⑧ DOWN key : Used to change the setting value in the measurement mode to
lower lever or to change pressure unit, output mode, output mode setting,
response time, LCD color setting etc.
(DPSA Series)
※
There is no short-circuit protection in analog voltage output. Do not connect this output to power supply or capacitive load directly.
※
Please observe input impedance of connected equipment when use analog voltage output.
And be sure to check voltage drop caused by resistance of extended wire.
Zero point adjustment(DPSA Series)
1. In operation mode, press the <up>key and <down>key simultaneously for more than 1 second after opening the pressure port.
2. When zero setting is completed, 0 is displayed.
* If zero setting is going on while external pressure is applied, Er1 flashes while pressing the key.
* Please perform zero adjustment periodically.
Control output diagram(DPSA)
Front panel identification
Setting(DPSA)
NPN open collector output type PNP open collector output type
Main circuit
Overcurrent
protection
Overcurrent
protection
(Blue)0V
1kΩ
(White)OUT1
(Black)OUT2
(Orange)Analog
voltage output
(Brown)+V
12-24VDC
Load
Load
+
-
Main circuit
Overcurrent
protection
Overcurrent
protection
1kΩ
12-24VDC
Load
Load
+
-
(Blue)0V
(Black)OUT2
(Orange)Analog
voltage output
(Brown)+V
(White)OUT1
Digital Pressure Sensor
DPSA SERIES
MANUAL
Thank you for choosing our prodiuct.
Please read the following safety considerations before use.
Safety Consideraions
※
Please observe all safety considerations for safe and proper product operation to avoid hazards.
※
Safety considerations are categorized as follows.
Warning
Failure to follow these Instructions may result in serious injury or death.
Caution
Failure to follow these Instructions may result in personal injury or product damage.
※
The symbols used on the product and instruction manual represent the following.
symbol represents caution due to special circumstances in which hazads may occur.
Warning
1. Fail-safe device must be installed when using the unit with machinery that may cause
serious injury or substantial
economic loss. (e.q. nuclear power control, medical equipment,
ships, vehicles, railways, aircraft, combustion appartus,
safety equipment, crime/disaster
prevention devices, etc.)
2. Do not use it in ammable gas because it dose not have an explosion proof construction.
Failure to follow this instruction may result in explosion.
1
DPSA Series
Pressure Sensor
Small size, High accuracy pressure control digital pressure sensor
Features
• High accuracy digital pressure sensor
• High brightness LCD display.
• High resolution : 1/1000
• Convertible pressure unit
- Compound pressure : kPa, kgf/cm
2, bar, psi, mmHg, mmH2O, inHg
- Standard pressure : kPa, kgf/cm
2, bar, psi, Mpa
• Various output modes : Hysteresis mode, One point selting mode.
Independent 2 output mode, Window comparative output mode
• Chattering prevention for output (Selectable response time : 2.5, 5, 100, 500ms)
• Analog output(1-5VDC) scale function
• Reverse power polarity and overcurrent protection circuit
• Zero-point adjustment function
• Peak and Bottom hold display
Model configuration
Pressure conversion chart
Output type
Appearance
DPS PC01A
No mark NPN Open collect output
P PNP Open collect output
01 -100kPa ~ 100kPa
1 -100kPa ~ 1,000kPa
R Standard pressure
C Compound pressure
A Regular square
Appearance
Ex) For calculating 760mmHg as kPa : According to above chart, 1mmHg is 0.133322kPa, therefore 760mmHg will be 760×0.133322kPa=101.32472kPa.
Please read “Caution for your safety” in operation
manual before using.
to
from
Pa kPa MPa kgf/cm
2
mmHg mmH
2
O psi bar inHg
1Pa 1 0.001 0.000001000 0.000010197 0.007501 0.101972 0.000145038 0.000010000 0.0002953
1kPa 1000.000 1 0.001000 0.010197 7.500616 101.9716 0.145038 0.010000 0.2953
1MPa 1000000 1000 1 10.197162 7500.61683 101971.553 145.038243 10 295.299875
1kgf/cm
2
98066.54 98.066543 0.09806 1 735.5595 10000.20 14.22334 0.980665 28.95878
1mmHg 133.322368 0.133322 0.000133 0.001359 1 13.5954 0.019336 0.001333 0.039370
1mmH
2
O 9.80665 0.00980 - 0.000099 0.0735578 1 0.00142 0.000098 0.002895
1psi 6894.757 6.89757 0.00689 0.070307 51.71630 703.07 1 0.068947 2.036003
1bar 100000.0 100.0000 0.100000 1.019689 750.062 10196.89 14.50339 1 29.52998
1inHg 3386.417 3.388418 0.003386 0.034532 25.40022 345.31849 0.491158 0.033863 1
DPSA Series
● DPSA Series
MPa
kPa
1 2
20
12
12
20
30
30
20.2
25
1.2
PT1/8
VIEW_'B'
Bracket B
Bracket A
DPSA Series
Pressure Sensor
Specifications
Dimensions
Pressure type
Gauge pressure
Srandard pressure Compound pressure
Model
NPN Open collect output DPSA-R1 DPSA-C01
PNP Open collect output DPSA-R1P DPSA-C01P
Rated pressure gauge -100~1,000kPa -100.0~100.0kPa
Display and set pressure range -100~1,100kPa -101.3~110.0kPa
Max. pressure range 1.5MPa
300kPa
Applied fluid Air, Non-corrosive gas
Power supply 12-24VDC +- 10%(Ripple P-P : Max 10%)
Current consumption Max 40mA (with no load)
Control output
NPN or PNP open collect output (Load voltage: Max 30VDC
Load current: Max 100mA,
Residual voltage: Max 2V
Hysteresis
*1
1 digit xed(2 digits for psi unit )
Repeat error ±0.2% F.S. ±1digit ±0.2% F.S. ±2digit
Response time Selectable 2.5ms, 5ms, 100ms, 500ms
Short circuit protection Built in
Analog output
•
Output voltage : 1-5VDC +-2% F.S.
•
zero point : Within 1VDC +-2% F.S.
•
Output impedance: 1K
Ω
Display digit 3½ digit LCD
Display method 7 segment LCD
Min. display interval 1digit( psi unit : 2 digit)
Pressure unit kPa, Mpa, kgf/cm², bar, psi kPa,kgf/cm², bar,psi,
mmHg,mmH2O,inHg
Display accuracy 25ºC : Max +-2% F.S.
Vibration 15mm Amplitude at frequence of 10 to 55HZ FOR 1 Min. in each or of X,Y,Z directions for 2 hours.
Environment
Ambient temperature 'Use : 0~50ºC, storage : -10~60ºC ( Be not freezing or consesation)
Abbient humidity
35~85% RH, storage : 35~85 RH
Material
Case : PC , Pressure port : SUS
IP 40
CE
Protection
Cable 4mm,5-wire,2M(AWG26,core dia.:0.08mm, Number of core : 30, Insulation out dia.: 1.0mm)
APPROVAL
Weight
*2
Approx. 160g(Approx. 60g)
*1. In hyteresis output mode, it is variable. *2. The weight is in packed condition and parenthesized is body only.
* F.S(Full Scale) : Rated pressure * The environmental conditions of use are not freezing or condensation.
2
M5
Output type
DPS PV 01A
No mark NPN Open collect output
P PNP Open collect output
01 -100kPa ~
1 -100kPa ~ 1,000kPa
V Negative
R Standard pressure
C Compound pressure
A Regular square
Pressure type
Gauge pressure
Srandard pressureNegative pressure Compound pressure
Model
NPN Open collect output DPSA-R01 DPSA-C01
PNP Open collect output DPSA-R01P DPSA-C01P
Rated pressure gauge 0.0~100.0kPa -100.0~100.0kPa
Display and set pressure range -5.0~110.0kPa
DPSA-R1
DPSA-R1P
-100~1,000kPa
-100~1,100kPa
DPSA-V01
DPSA-V01P
0.0 ~ -101.3KPa
5.0 ~ -101.3kPa -101.3~110.0kPa
Max. pressure range 2 times of rated pressure
2 times of rated pressure1.5 time of rated
pressure
Applied fluid Air, Non-corrosive gas
Power supply 12-24VDC +- 10%(Ripple P-P : Max 10%)
Current consumption Max 40mA (with no load)
Control output
NPN or PNP open collect output (Load voltage: Max 30VDC
Load current: Max 100mA,
Residual voltage: Max 2V
1 digit fixed(2 digits for psi unit )
Hysteresis
*1
Repeat error ±0.2% F.S. ±1digit±0.2% F.S. ±2digit ±0.2% F.S. ±2digit
Response time Selectable 2.5ms, 5ms, 100ms, 500ms
Short circuit protection Built in
Analog output
•
Output voltage : 1-5VDC +-2% F.S.
•
Output impedance: 1K
Ω
Display digit 3½ digit LCD
Display method 7 segment LCD
Min. display interval 1digit( psi unit : 2 digit)2 digit 2 digit
Pressure unit kPa, kgf/cm², bar, psi,
mmHg, mmH₂O, inHg
kPa, kgf/cm², bar, psi
mmHg, mmH2O, inHg
kPa, Kgf/cm², MPa, bar, psi
Display accuracy 25ºC : Max +-2% F.S.
Vibration 15mm Amplitude at frequence of 10 to 55HZ FOR 1 Min. in each or of X,Y,Z directions for 2 hours.
Environment
Ambient temperature Use : 0~50ºC, storage : -10~60ºC ( Be not freezing or consesation)
Abbient humidity
35~85% RH, storage : 35~85 RH
Material
Case : PC, Pressure port : SUS
IP 40
CE
Protection
Cable 4mm, 5-wire, 2M(AWG26, core dia : 0.08mm, Number of core : 30, Insulation out dia : 1.0mm)
APPROVAL
Weight
*2
Approx. 160g(Approx. 60g)
*1. In hyteresis output mode, it is variable. *2. The weight is in packed condition and parenthesized is body only.
* F.S(Full Scale) : Rated pressure * The environmental conditions of use are not freezing or condensation.
•
zero point : Within 1VDC +-2% F.S.
