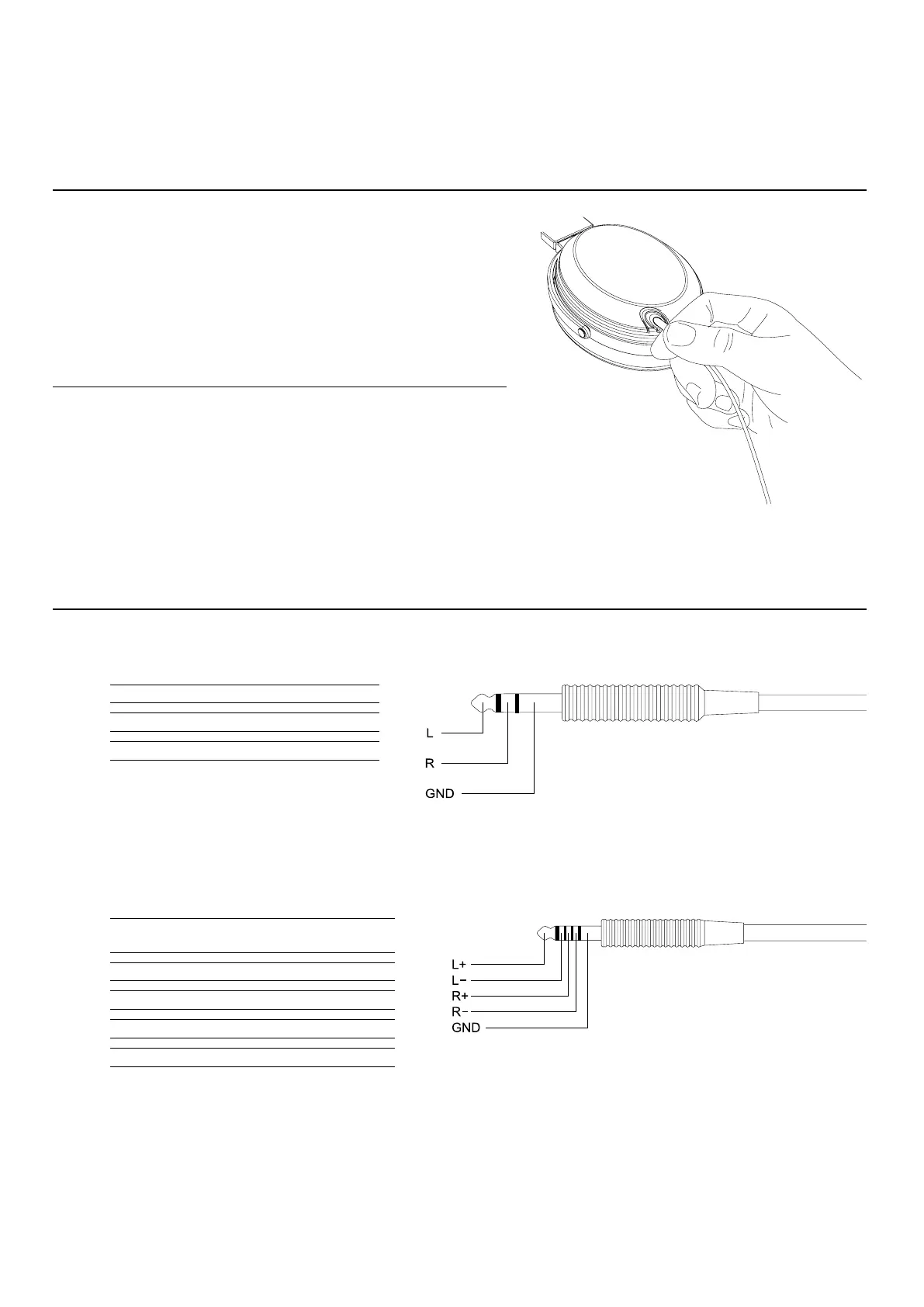

Changing the connecting cable
Disconnect the plugs from the earcups
• To change the connection cable, pull the plugs
straight down out of the earcups.
• Grasp the plugs directly at the bend protection
(see illustration). Do not pull on the cord; always
grasp the plug!
• Connect the required connection cable as descri-
bed in the chapter „Connecting the headphones“.
j
The connectors are self-locking. You will therefore
feel a slight resistance when you remove and insert
the plug.
Pin assignment of the plugs
GND Common ground connection
R Signal contact right channel
L Signal contact left channel
GND Common ground connection
(Shield)
R+ Signal contact right channel (+)
R- Signal contact right channel (-)
L+ Signal contact left channel (+)
L- Signal contact left channel (-)
24
6,35 mm unbalanced
4,4 mm balanced
(Pentaconn)
