TRAC-RITE

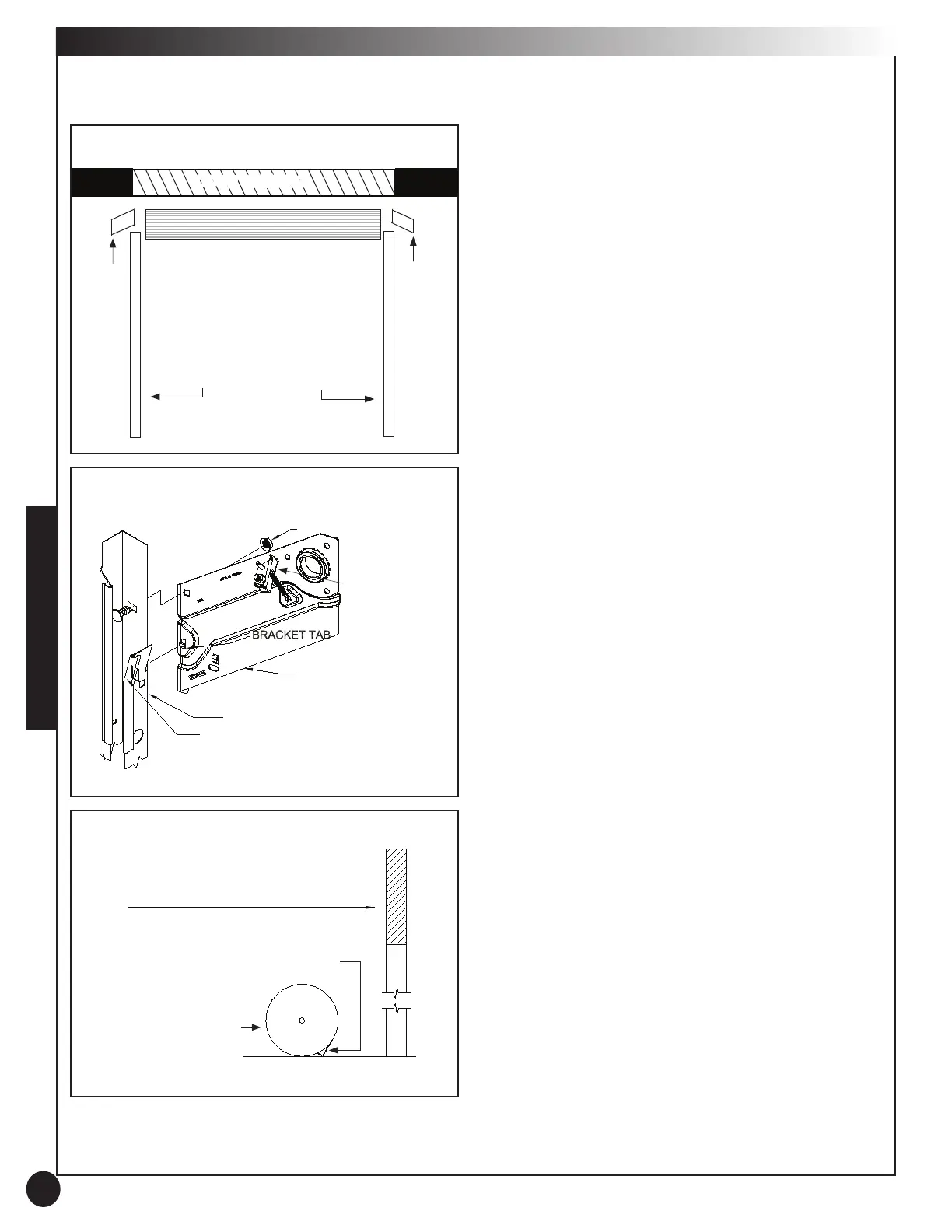

3. BRACKET AND GUIDE ASSEMBLY
3.1 Position the guides and brackets inside the
building on the floor near their mounting location.
3.2 Place the guides on the ground with the mounting
holes facing the ground and the bent curtain lead-in
up and toward the door opening (See Figure 2 for
example of right hand guide).
3.3 Now place each bracket with the correct guide.
Each bracket is labeled left or right (See Figure 1A).
3.4 Attach a bracket to each guide with one (1) 5/16”
flat head track bolt and one (1) whiz-nut as shown
in Figure 2. Nuts go to outside of guide. MAKE
SURE THE BACK OF THE BRACKET AND GUIDE
ARE FLUSH WHEN DONE MOUNTING BOTH
BRACKETS (See Figure 4).
3.5 Place a protective material on the floor of the
work area to protect door nest while on the floor.
3.6 With enough room between the guides for the
door nest, bring the nest in and lay it between the
guides on the floor. Orient the door nest in the
opening as shown in Figure 3.
3.7 Slide the door bracket over the door axle, through
the bearing. If needed, rotate the tension wheel to
allow the adjustment wheel to slide past the tension
adjustment pawl.
3.8 Install a steel washer onto the axle and secure
with cotter pin through axle’s hole. If the washer
blocks the cotter pin hole, don’t use the washer.
3.9 Using pliers, bend both ends of the cotter pin
back to secure it.
Repeat steps 3.7 - 3.9 for other side of door.
LEFT
BRACKET
DOOR OPENING
RIGHT
BRACKET
RIGHT GUIDELEFT GUIDE
GENERAL ASSEMBLY LAYOUT
WALL
WALL
INSIDE
OUTSIDE
3
Figure 3
Figure 1A
DOOR NEST
WHIZ-NUT & 5/16”
TRACK BOLT
RIGHT HAND DOOR
BRACKET
DOOR GUIDE
BENT CURTAIN LEAD IN
Figure 2
INSIDE OPENING LOOKING OUT
NOTE DIRECTION AND POSITION
OF BOTTOM SEAL
DOOR NEST
TENSION PAWL
