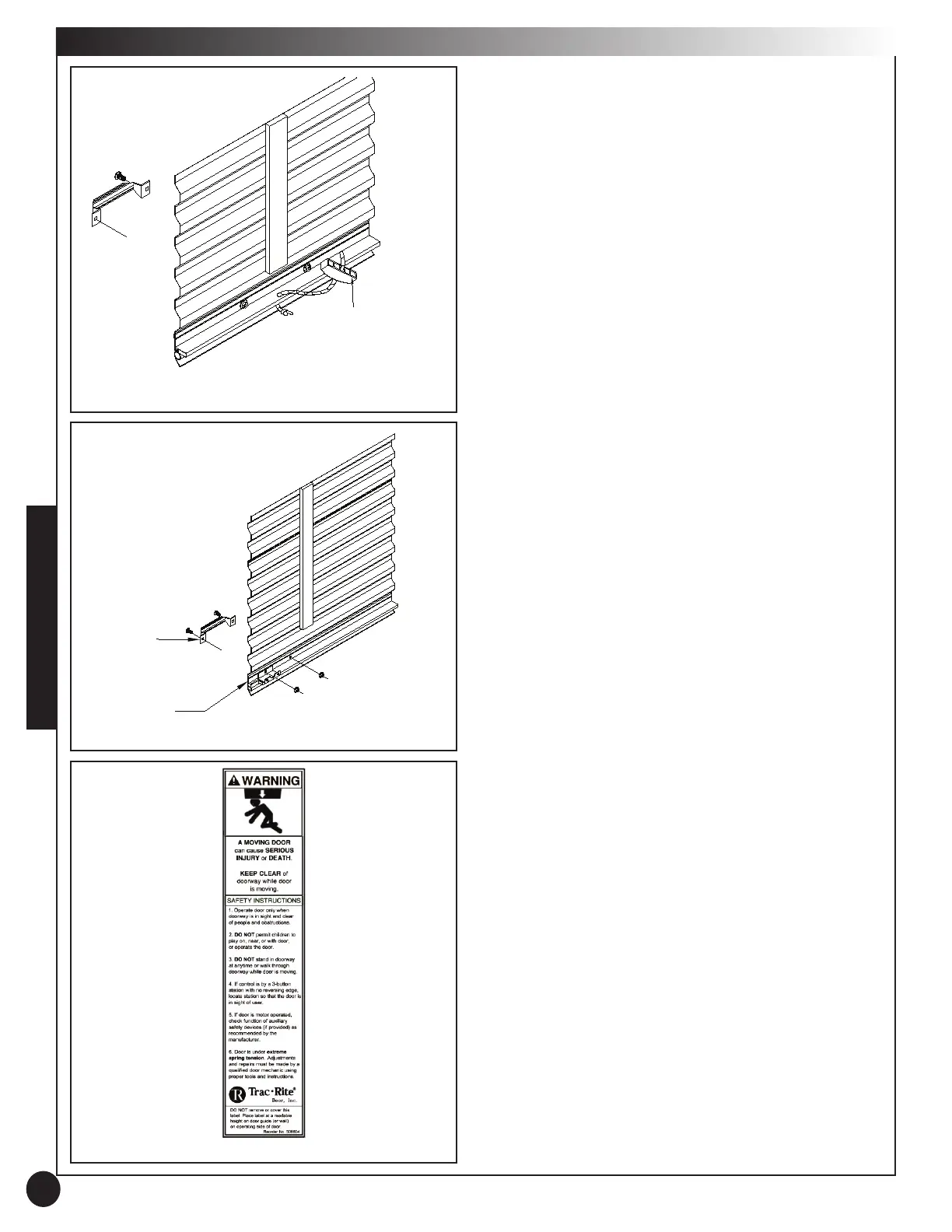

Figure 11
8.3 Attach the guide warning label (See Figure 11)
to wall next to the guide at eye level. If mounting to
an unfinished surface such as bare masonry or wood,
attach the label to a nonporous surface and use
mechanical fasteners to mount on wall.
8. FINAL ASSEMBLY
8.1 Pull rope handle: Tie a knot in one end of the
rope. Slide the plastic handle onto the rope and pull
the knot up into the handle. Pass the other end of
the rope through the hole in the center of the bottom
edge of the door and tie another knot in the end to
keep the rope from pulling through (See Figure 9).
Figure 10
8.2 Exterior handle: Attach the handle(s) to the bottom
exterior edge of the door with two (2) 1/4” carriage
bolts and whiz nuts provided (See Figure 10). Doors
8’ wide and larger will have two handles.
Figure 9
7
PULL ROPE
HANDLE
EXTERIOR
HANDLE
BOTTOM
ASSEMBLY
