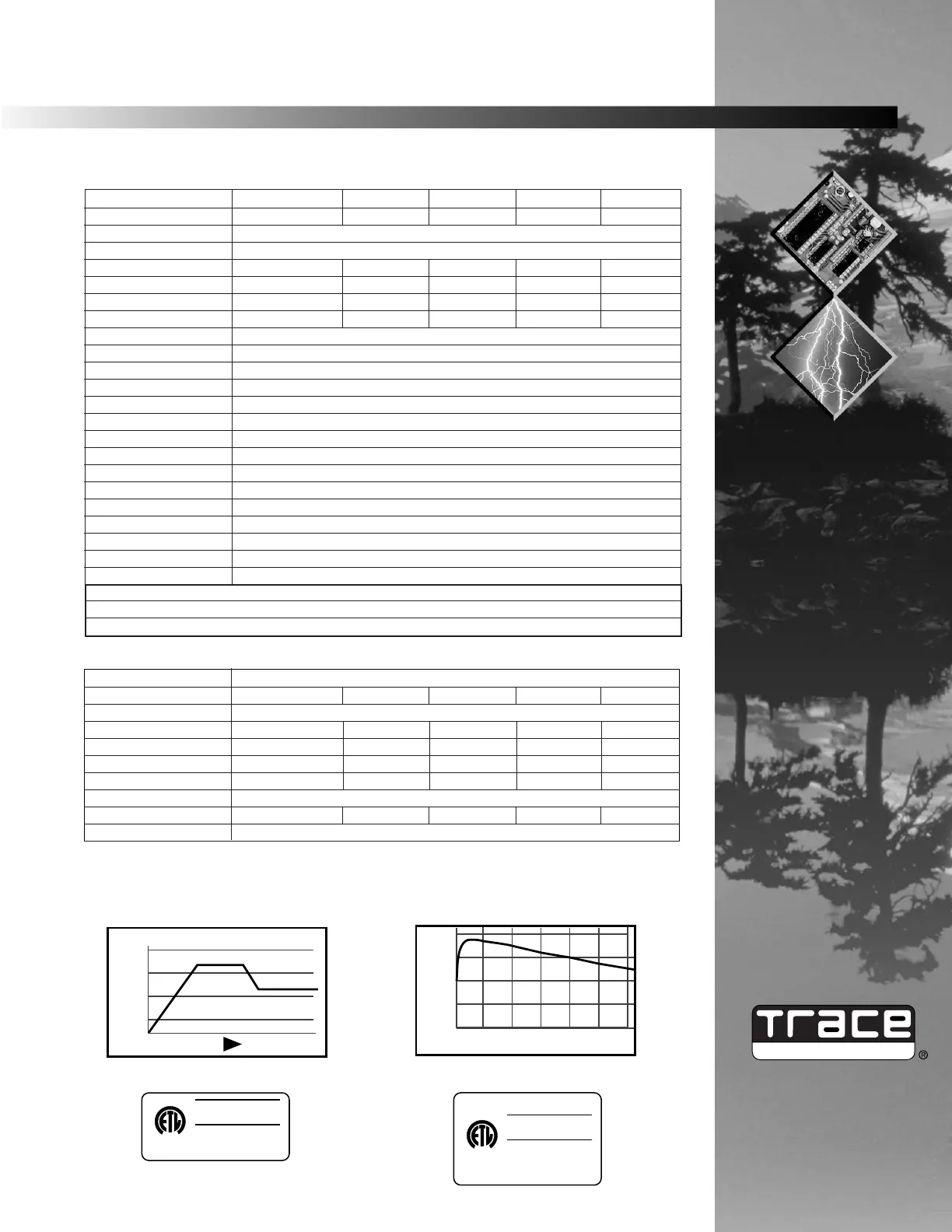

Warranty 2 year parts and labor
Continuous Power* 2500 Watts 2600 Watts 2200 Watts 2500 Watts 2500 Watts
Surge Power** 8000 Watts 8000 Watts 6500 Watts 8000 Watts 8000 Watts
Efficiency 96% peak - greater than 85% from 50 watts to rated output
No Load Current
-Search Mode .030 amps .018 amps .016 amps .014 amps .012 amps
-Full Voltage .60 amps .36 amps .32 amps .28 amps .24 amps
Nominal Input Voltage 12 VDC 24 VDC 32 VDC 36 VDC 48 VDC
Input Voltage Range 8.8 - 15.6 14.9 - 30.7 19.9 - 42.9 19.9 - 47.0 22.4 - 62.6
Nominal Output Range 120 VAC (100, 220, 230, 240, VAC - 50 or 60 Hz models also available)
Voltage Regulation ±2% RMS
Frequency Regulation-60Hz ±.04% RMS
Waveform Modified Sine
Power Factor Power factor of load can vary from -1 to +1
Stacking Option Available YES
Load Sensing Sensitivity 5 to 80W
Inverter Protection Circuits:
with Auto Reset High battery, low battery, high temperature, instantaneous over-current with linear temp compensation.
with Manual Reset Extended over-current (more than 20 seconds), inverter output connected to grid or genset.
Battery Protection Circuit Load compensated, “smart” overdischarge protection
Cooling Thermally activated AC fan
Dimensions (HxWxD) 9.5 x 11.5 x 13.5
Weight Product weight: 42 - 44 lbs. Ship weight: 47 - 49 lbs.
Other Voltage/frequency specs for export are as follows: (Example 2512 /NE)
/A = 240VAC/50Hz /NE = 220VAC50Hz /J = 100VAC/50Hz /K - 100VAC/60Hz
/W = 220VAC/60Hz /E = 230VAC/50Hz /U = 240VAC/60Hz (Two wire output only)
Model
2500 Series
SPECIFICATIONS
THE POWER COMPANY
Available From:
Inverter Model Number 2512 2624 2232 2536 2548
* All power specifications based on 20°C ambient and resistive loads.
** Largest bank of incandescent light bulbs that inverter can start simultaneously and operate for at least one minute.
*** Marine/RV models (/M) standard with battery charger, digital meter and polarized AC output.
**** Specifications may change without notice.
NOTE: All Trace inverter/chargers can be made in export voltage configurations.
Automatic Transfer Relay 30 amp/1HP - switches from inverter to battery charger with 10 second delay for generator spinup
Maximum Charge Rate 120 amps 60 amps 45 amps 40 amps 30 amps
Battery Charger Program Three Stage: (1) Bulk (constant current), (2) Absorption & (3) Float (constant voltage)
Bulk Stage 0 - 120 amps 0 - 60 amps 0 - 45 amps 0 - 40 amps 0 - 30 amps
Absorbtion Stage-vdc 14.1 - 14.7 28.2 - 29.4 37.6 - 39.2 42.3 - 44.1 56.4 - 58.8
Float/ Maintenance Stage-vdc 12.8 - 13.5 25.8 - 27.0 34.4 - 36.0 38.7 - 40.5 51.6 - 54.0
Transfer to Float 0 - 20 amps 0 - 10 amps 0 - 7.5 amps 0 - 6.7 amps 0 - 5 amps
Temp Compensation Manual adjustment from 20° to 100° Farenheit
Equalize Function-vdc 15.5 - 16.1 31.0 - 32.2 41.3 - 42.9 46.5 - 48.3 62.0 - 64.4
Battery Charger (StandBy Option)***
BATTERY VOLTAGE
TIME
15
14
13
12
ABSORPTION
FLOAT/
MAINTENANCE
BULK CHARGE
100
90
80
70
% EFFICIENCY
POWER IN WATTS
0 500 1000 1500 2000 2500 3000
60
Safety Timer Limits time spent in Bulk or Equalize Mode — Adjustable 2 to 20 hours
Trace 2500 Series Inverters (60 Hertz Models)
Changing Profile
Efficiency Curve
®
L
I
S
T
E
D
C
67664
POWER CONDITIONING UNITS FOR
USE IN PHOTOVOLTAIC POWER
SYSTEMS STANDARD UL1741
POWER CONVERTERS AND POWER
CONVERTER SYSTEMS FOR
RECREATIONAL VEHICLES
STANDARD UL458
COMMERCIAL AND INDUSTRIAL
POWER SUPPLIES
CERTIFIED TO
CAN/CSA-C22.2 NO. 107.1-M1
ETL TESTING LABS. INC
CORTLAND, N.Y.
®
L
I
S
T
E
D
67664
POWER CONVERTERS AND POWER
CONVERTER SYSTEMS FOR
RECREATIONAL VEHICLES
STANDARD UL458
MARINE BATTERY CHARGES
STANDARD UL1236
ETL TESTING LABS. INC
CORTLAND, N.Y.
5916 195th St. N.E. ARLINGTON, WA. USA 98223 Phone (360) 435-8826 Fax (360) 435-2229 Web: www.traceengineering.com
