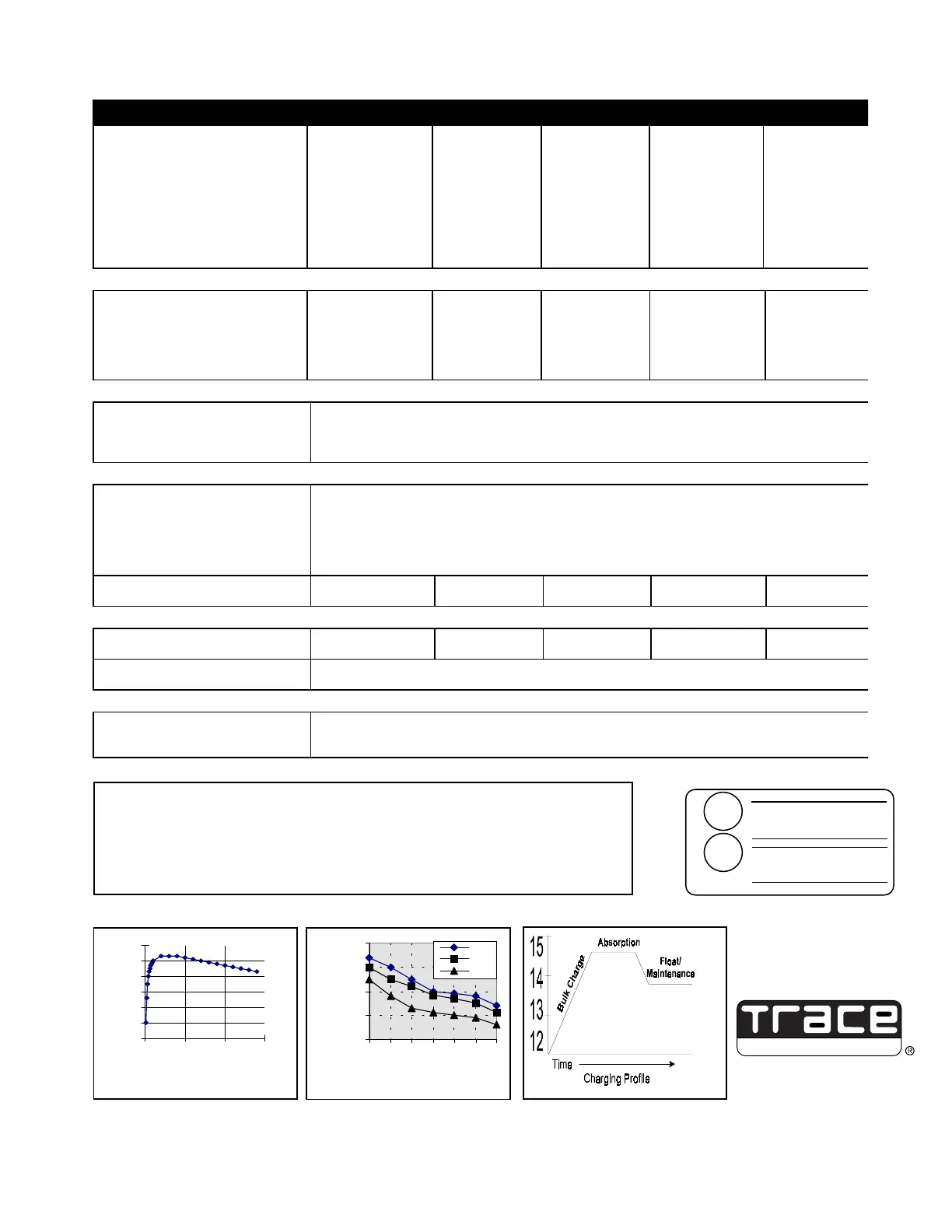

SPECIFICATIONS AND FEATURES
(rev. 1.0)
Model UX Series
MODEL UX512E UX612 UX1112 UX1112E UX1412
Nominal DC Input Voltage
12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
AC Output Voltage (RMS)
230 VAC 120 VAC 120 VAC 230 VAC 120 VAC
Nominal Frequency
50 HZ 60 HZ 60 HZ 50 HZ 60 HZ
Continuous Power @ 25
°Ÿ
C
500 VA 600VA 1100 VA 1100 VA 1400 VA
Continuous Current @ 25
°Ÿ
C
2 amps AC 5 amps AC 9 amps AC 5 amps AC 12 amps AC
Maximum Current (100 mSec Record) 10 amps AC 18 amps AC 22 amps AC 11 amps AC 30 amps AC
Maximum Power (Light Bulb Rating) 2500 W 2500 W 3000 W 3000 W 3400 W
Efficiency (peak) 92% max 92% max 90% max 90% max 92% max
DC INPUT REQUIREMENTS
Search Mode 0.022 A (0.4W) 0.022 A (0.4W) 0.045 A (0.5W) 0.045 A (0.5W) 0.060 A (0.7W)
On Mode (no load - idle) 0.400 A (5.0W) 0.400 A (5.0W) 0.450 A (5.5W) 0.450 A (5.5W) 0.600 A (7 W)
At Full Rated Power 54 amps 63 amps 120 amps 120 amps 153 amps
Input Voltage Range 10.8 to 15.5 VDC 10.8 to 15.5 VDC 10.8 to 15.5 VDC 10.8 to 15.5 VDC
10.8 to 15.5 VDC
Low Battery Cutout (w/out SB Option) 9.5 VDC 9.5 VDC 9.5 VDC 9.5 VDC 9.5 VDC
High Voltage Cutout 15.7 VDC 15.7 VDC 15.7 VDC 15.7 VDC 15.7 VDC
AC OUTPUT CHARACTERISTICS
AC Output Waveform Modified sinewave
Voltage Regulation +/- 5% Maximum, +/- 2.5% Typical
Power Factor Allowed -1 to 1
Frequency Regulation +/- 0.01% (crystal regulated)
ENVIRONMENTAL LIMITATIONS
Enclosure Type Indoor, ventilated, steel chassis with powdercoat finish
Specified Temperature Range
32
°Ÿ
F to 104
°Ÿ
F (0
°Ÿ
C to +40
°Ÿ
C) (output will meet specified tolerances)
Allowed Operating Temperature Range
-40
°Ÿ
F to 140
°Ÿ
F (-40
°Ÿ
C to +60
°Ÿ
C) (output may not meet specified tolerances)
Dimensions - Inverter Only 10.5” (26.7 cm) high, 15.5” (39.4 cm) wide, 6” (15.2 cm) deep (when wall mounted)
Dimensions - Shipping 20.5” (52 cm), 27” (69 cm) 15.5” (40 cm)
Mounting Wall or Shelf Mount
Weight - Inverter only 25 lbs (11.4 kg) 25 lbs (11.4 kg) 30 lbs (13.6kg) 35 lbs (15.9 kg) 35 lbs (15.9 kg)
Weight - Shipping 30 lbs (13.6 kg) 30 lbs (13.6 kg) 35 lbs (15.9kg) 40 lbs (18.2 kg) 40 lbs (18.2 kg)
STAND-BY (SB) OPTION
Automatic AC Transfer Relay 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC
Maximum Battery Charging Rate 25 amps DC 25 amps DC 50 amps DC 50 amps DC 50 amps DC
3-stage Charger Regulation Method
Bulk (constant current), Absorption (constant voltage) and Float (maintenance voltage & current)
Selectable Low Battery Cutout 9.5 VDC (allows deep discharge) or 11.8 VDC ( for use with starting or shallow cycle batteries)
ADDITIONAL
OPTIONS
Battery Temperature Sensor BTS/15: 15 foot plug-in battery temperature sensor with phone jack (can be extended)
Remote Control Panel RC8/50: 50 foot On/Off remote with LED status indicator
RC8/100: 100 foot On/Off remote with LED status indicator
Note: All specifications are subject to change without notice
Rugged:
Designed for maximum service, all UX models offer powder coated chassis,
stainless fasteners, conformal coated circuit boards and gold plated connectors.
AC wiring
terminates cleanly inside the wall or shelf mountable chassis.
The Bottom line:
The Trace UX series of compact inverters provides quiet, dependable
power whenever and wherever you need it, at a price you can afford.
5916 195th St. N.E. ARLINGTON, WA. USA 98223 Phone (360) 435-8826 Fax (360) 435-2229 Web: www.traceengineering.com
Rev# 4/98
U
L
®
U
L
®
LISTED
39FL
C
POWER CONDITIONING UNITS FOR
USE IN PHOTOVOLTAIC POWER
SYSTEMS— STANDARD UL 1741
COMMERCIAL AND INDUSTRIAL
POWER SUPPLIES—CERTIFIED TO
CAN/CSA-C22.2 NO. 107.1-M91
Typical Efficiency Power vs. Time Battery Charger Method
40
50
60
70
80
90
100
0 500 1000 1500
Output in Watts
Efficiency %
0
1,000
2,000
3,000
4,000
1
2
4
8
16
32
64
TIME IN MINUTES
POWER IN WATTS
1412
1112
612
ENGINEERING
THE POWER COMPANY
