Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
• For help identifying small parts, refer to the
PART IDENTIFICATION CHART on page 5.
The following tools (not included) are required
for assembly:
•Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
1
1
Decal
27
27
31
29
87
3
2
87

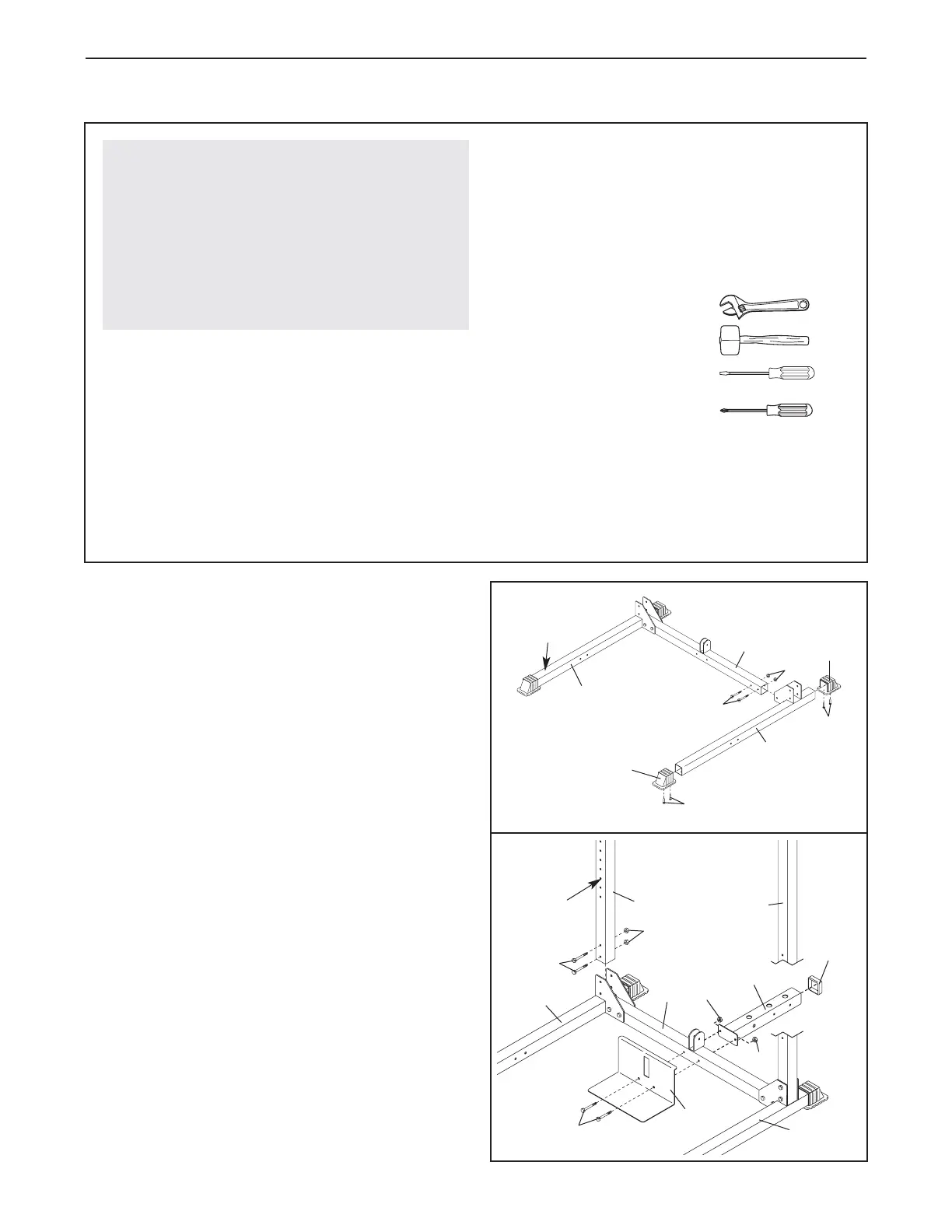

1. Attach two Large Base Caps (27) to the ends of
the Left Base (3) with four M4 x 16mm Screws
(87).
Attach the Left Base (3) to the Center Base (2)
with two M10 x 78mm Bolts (31) and two M10
Nylon Locknuts (29). Do not tighten the
Locknuts yet.
Repeat this step with the Right Base (1). Make
sure the warning decal is in the indicated
location.
2
1
2
5
31
31
29
29
29
4
3
85
8
Adjustment
Holes
8
2. Identify the two Rear Uprights (8), which are
shorter than the Front Uprights (not shown).
Attach the Rear Uprights (8) to the Left and Right
Bases (1, 3) using four M10 x 78mm Bolts (31)
and four M10 Nylon Locknuts (29). Do not tight-
en the Locknuts yet. Make sure the Uprights
are oriented with the adjustment holes on the
indicated side near the bottom.
Press a 50mm Square Outer Cap (85) onto the
end of the Weight Guide Base (4).
Orient the Foot Plate (5) and the Weight Guide
Base (4) as shown. Attach the Foot Plate and the
Weight Guide Base to the Center Base (2) using
two M10 x 78mm Bolts (31) and two M10 Nylon
Locknuts (29). Do not tighten the Locknuts yet.
ASSEMBLY
To Next Page
