Calculate the correct VCC value according to relays parameter to comply with the following requirements:
Output open drain sink voltage (ineffective) 45V max
Output Low voltage sink current (effective) 500mA max

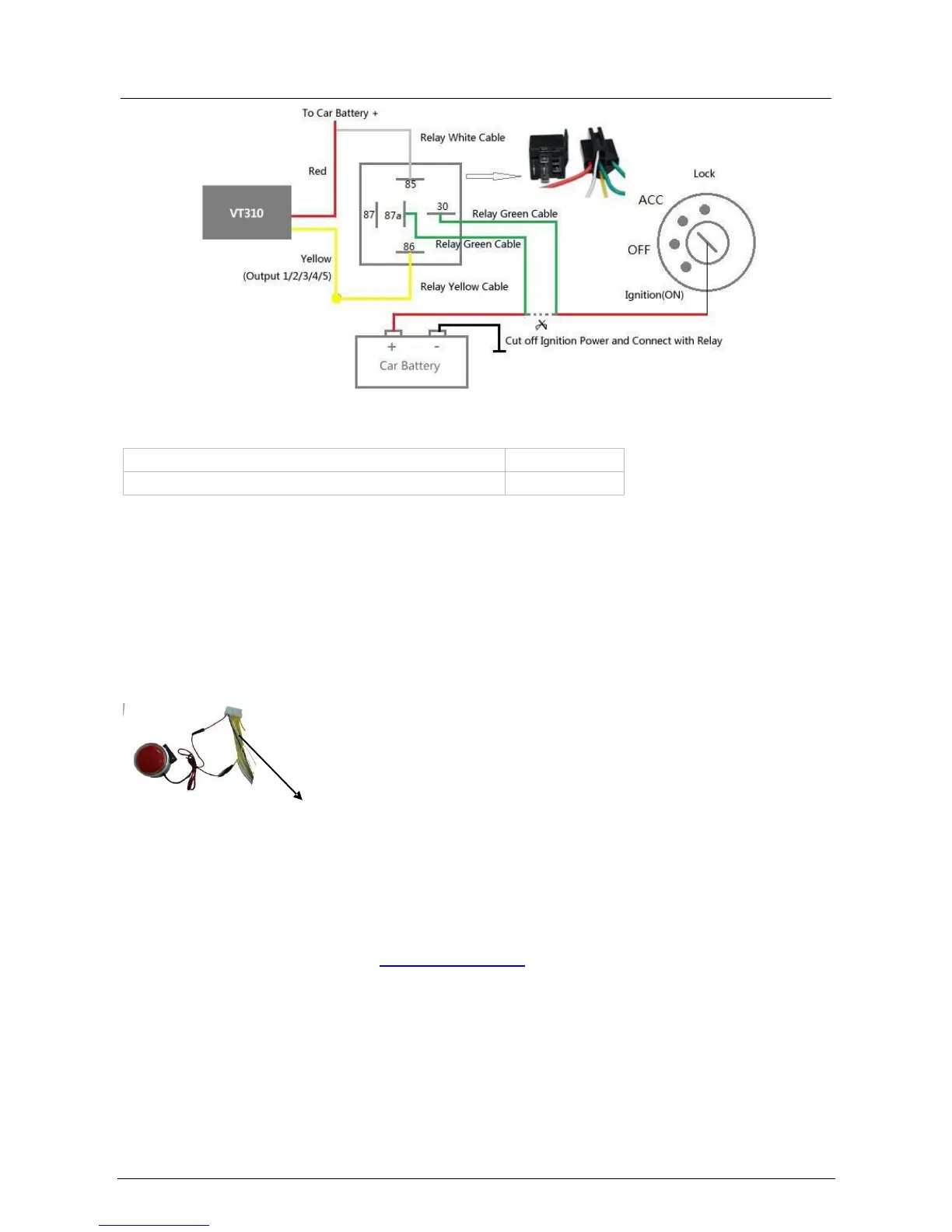

Normally two green wires are connected solidly (P1 and P2 are Normal Close[NC] in the relay), when output
is open (Output be low voltage), two green wires will disconnect, the engine is then cut.
5.6 Connecting with Car Alarm
When the Output that connected to the car alarm is open, the alarm will start to work.
Alarm
Output 3
Contacts
