GPS LED (Blue)
On One button is pressed or input is active.
Flashing ( every 0.1 second) The unit is being initialized
Flashing (0.1 second on and 2.9 seconds off) VT10 has a GPS fix
Flashing (1 second on and 2 seconds off) VT10 has no GPS fix
GSM LED (
Green
)
On One call is coming in / one call is being made
Flashing ( every 0.1 second) The unit is being initialized
Flashing (0.1 second on and 2.9 seconds off) VT10 is connected to the GSM network
Flashing (1 second on and 2 seconds off) VT10 is not connected to the GSM network
Power On/Off Button
Press and hold for 3~5 seconds to turn on/off VT10
.
SOS Button
SOS button is connected with the wires. Press it to send SOS alarm to
the preauthorized phone number.
Mini USB
Used for firmware update, configuration on PC and exporting stored
data. (USB-to-Serial Adaptor is required for firmware update,
configuration and exporting stored data)
SIM Card
Holder
To insert SIM card here
GSM Antenna
Connector for GSM antenna
GPS Antenna
Connector for GPS antenna
Screw Holes
There are 4 screw holes on the tracker, 2 along either side that act as
fixing points to the vehicle

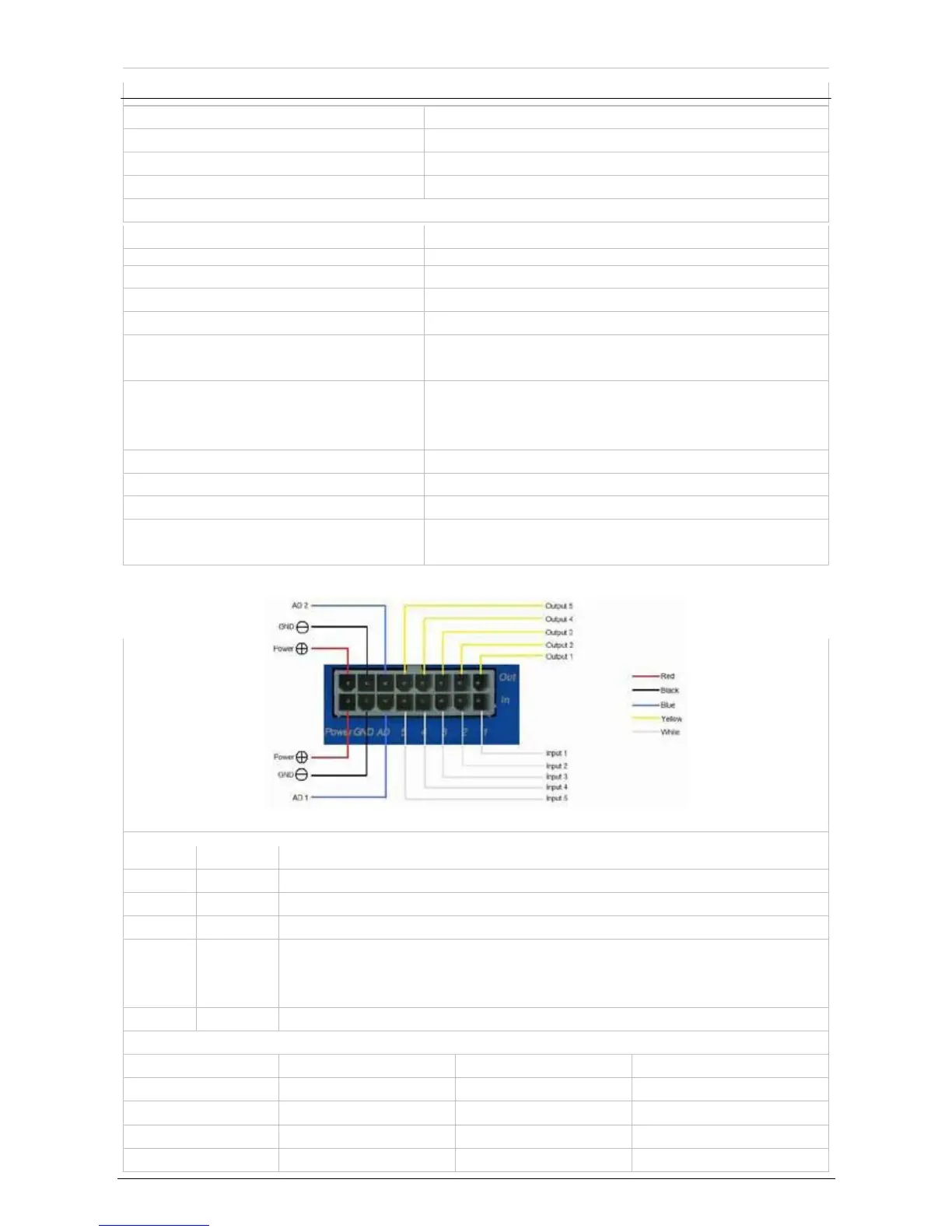

PINs Connector
P IN
Color
Function
Power Red DC In (power input)
.
Input voltage: 9V~36V
.
12V suggested.
GND Black Ground
In
White Digital Inputs
.
In1, In2 and In3 are negative triggering; In4 and In5 are positive triggering.
Out Yellow Outputs. Low voltage (0V) when effective and open drain when ineffective.
Output open drain sink voltage (ineffective): 45V max.
Output low voltage sink current (effective): 500mA max.
AD Blue 10 Bits Resolution Analog Inputs. Input voltage: 0~6V.
DC Characteristics of PINs
PIN
In active
Active
Maximum
Input 1/2/3 Open drain or >1V 0V(GND) 45V
Input 4/5 Open drain or 0V(GND) >3V 45V
Output 1/2/3/4/5 Open drain 0V (GND) 45V/500mA
DC IN
/
9-36V 45V
