7

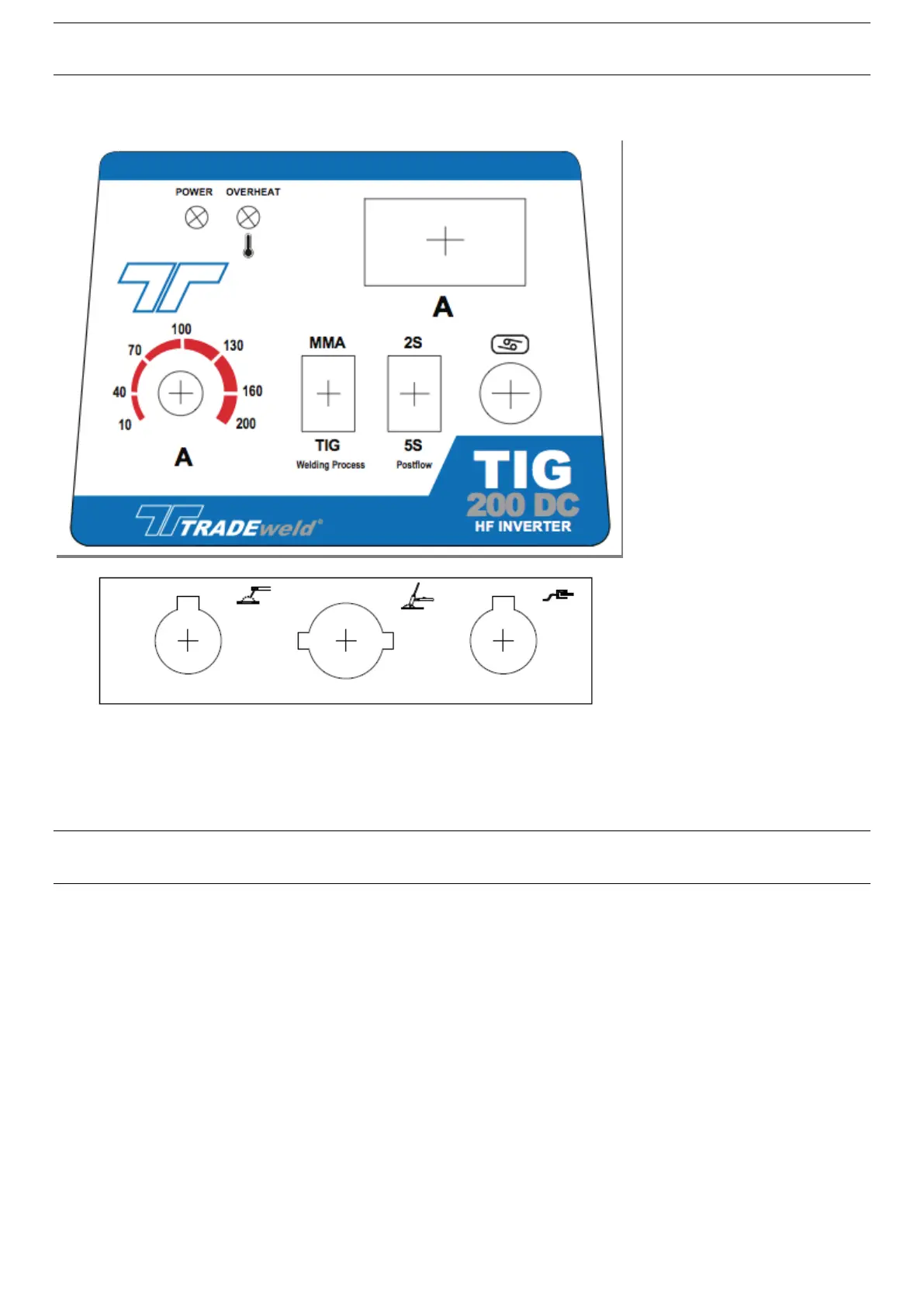

FRONT PANEL LAYOUT TIG 200D
TIG WELDING TIPS
Sharpen tungsten point length to 1.5 times the thick ness of the tungsten.
Make sure grinding marks are in line with the tip.
Weld in the same direction the gas is flowing. (Leaves smoke marks if pulling)
Dip the filler rode in front of the pool (in front of direction you are moving)
Practice on same type material you are going to weld on.
If tungsten burns away too fast – lower the amperage or use thicker tungsten.
