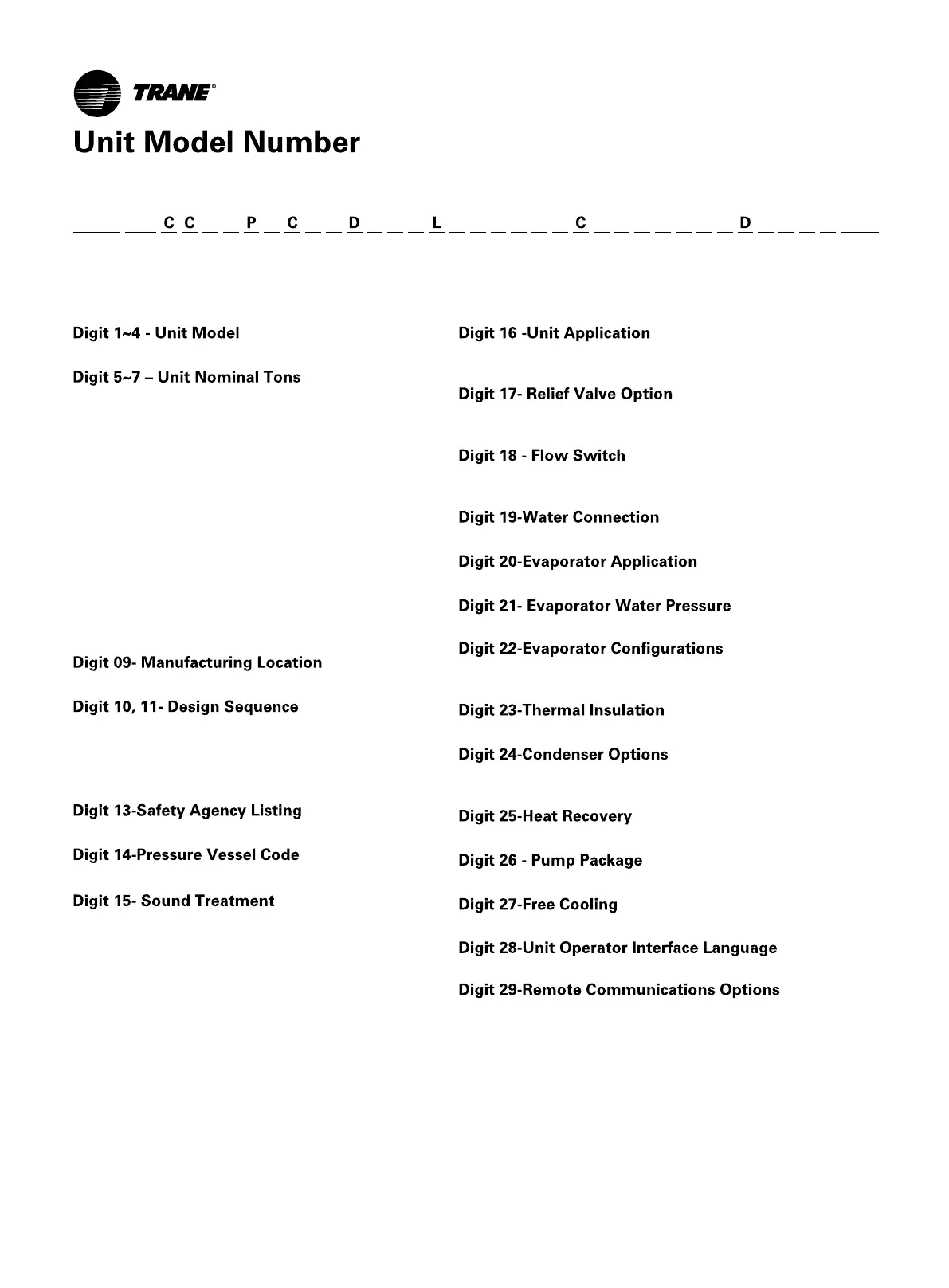

An example of a typical unit model number is:
RTAG 190 A 0 0 S N X F N 2 S T X X X X 0 X F R V 0 1 N N I X N
1~4 5~7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
Model number digits are selected and assigned in accordance with the following definitions using the model number
example shown above.
RTAG -Air cooled Screw Chiller
=
=
=
=
=
=
=
=
=
=
E
F
G
= 380V/60Hz/3Ph
460V/60Hz/3Ph
400V/60Hz/3Ph
=
=
C = Taicang, China
A0 = Factory Assigned
H = High Efficiency
0 = No Safety Agency Listing
A = ASME Pressure Vessel Code
S = Standard
X = Medium low noise ( compressor or tube
sound attenuation )
L = Low noise(compressor +tube sound wrap)
M = Low noise + night noise set back
N = Standard Ambient 14ºF~114.8ºF(-10ºC~46ºC)
H = High Ambient 14ºF~125ºF(-10ºC~52ºC)
S = Single Relief Valve
D = Dual Relief Valve With 3 Way Valve
X = No Flow Switch
F = Field Installed Flow Switch
F = Flange
N = Standard Cooling(4ºC~20ºC)
L = 150psi
2 = 2 Pass Evaporator
1 = 1 Pass Evaporator
S = Standard Thermal Insulation
B = Copper tube/Al Fin Coil, with Black Coated
C = Copper tube/Copper Fin Coil
X = No Heat Recovery
X = Pump Signal On/Off
X = None
E = English
X = None
B = BACnet Interface
M = Modbus Interface
L = Lontalk Interface
8 RTAG-SVX001H-EN
225 Nominal Tons
230 Nominal Tons
285 Nominal Tons
310 Nominal Tons
340 Nominal Tons
375 Nominal Tons
400 Nominal Tons
440 Nominal Tons
460 Nominal Tons
500 Nominal Tons
225
230
285
310
340
375
400
440
460
500
Digit 8 - Unit Power Supply
Digit 12 - Efficiency
P = Premium Seasonal Efficiency
