0 = Without
X = None
S = Rapid restart-NoUPS
A = External Set Points & Capacity Outputs
B = Rpd rst-NoUPS, Ext.Set Pts & Cap.Output
F = Full Charge (R134a)
N = Nitrogen (R134a)
P = 12kg Charge (R134a)
R = Standard Functional Test
P = Non-witnessed Performance Test, With Report
W = Customer-witnessed Performance Test, With
Report

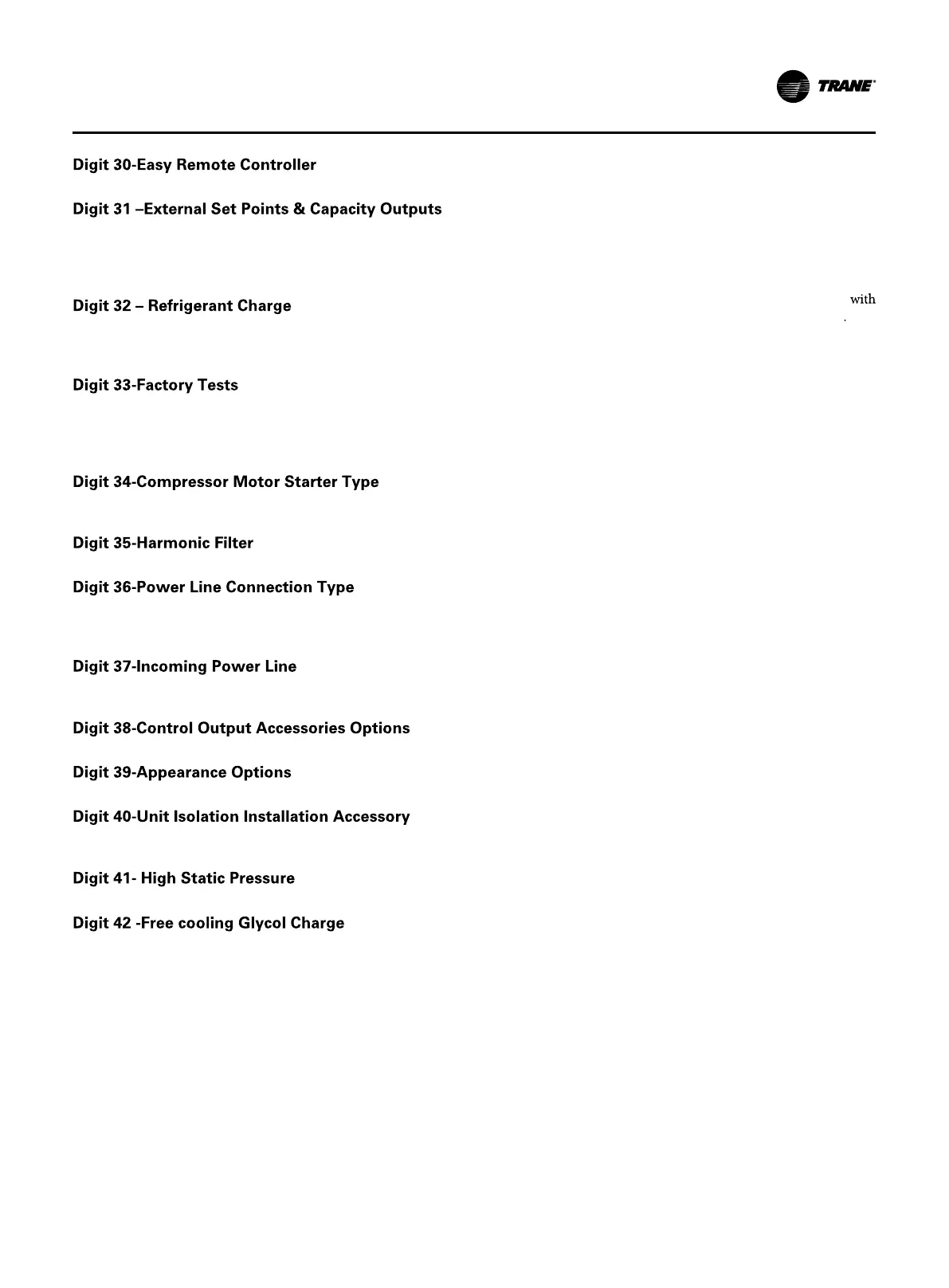

Unit Model Number
V = VFD
Y = Wye-delta closed transition
0 = None
T = Terminal Block Connection
D = Mech Disconnect Switch
C = Circuit Breaker
1 = Single Point Power Connection
2 = Dual Point Power Connection
A = Alarm Relay Outputs
N = No Appearance Options
X = None
I = Neoprene Isolators
X = None
N = None glycol charge in factory
Model number discretion here only list RTAG standard
units available option. There will be more option in fu-
ture.
Main options implementation scheme:
Medium low noise option of Sound Treatment use
sound wrap depends compressor configuration: N5, N6
use tube sound wrap, N6E2 use compressor sound box.
this option is only for unit nominal tonnage >225.
Low noise option of Sound Treatment use sound wrap
to reduce the compressor, suction and discharge line,
oil separator noise; low noise with night noise setback
is implement with both sound wrap and variable speed
fan, adjust fan speed.
For Unit Application, High Ambient option is added
oil cooler base on Standard ambient configuration But
units with VFD or economizer always have oil cooler.
Alarm relay outputs can be connected to the sound &
light alarm warning elements. It is highly recommended
that users install the corresponding alarm elements with
this function, so that when the unit encounters a fault,
they can get the information in time and go to the trou-
bleshooting.
RTAG-SVX001H-EN 9
