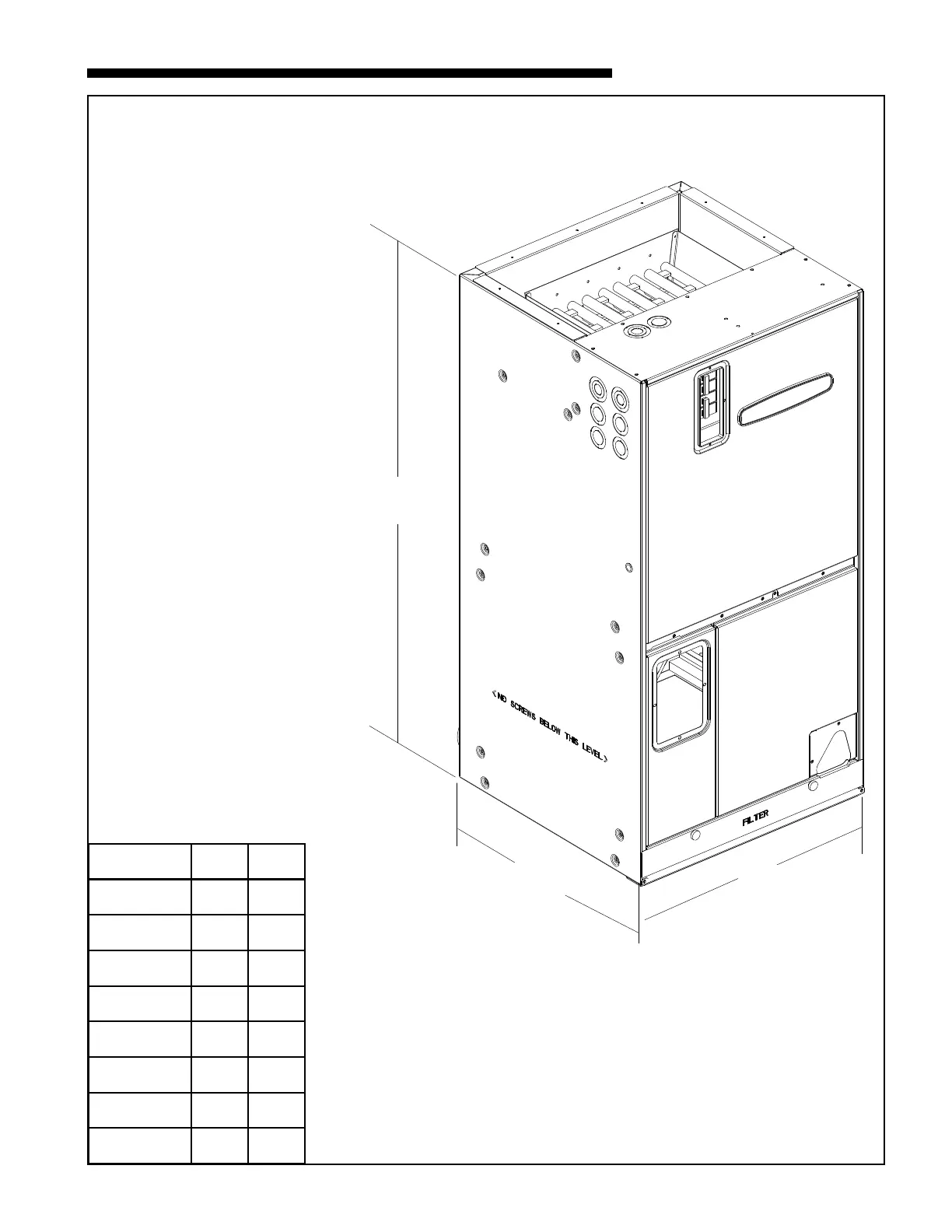

2/4TEC AIR HANDLER DIMENSIONAL DATA
H
W
21.0"
2/4TEC3F48B & 60B
are two piece cabinets
MODEL H W
2/4TEC3F18B 43.00 21.50
2/4TEC3F24B 43.00 21.50
2/4TEC3F30B 45.00 21.50
2/4TEC3F36B 45.00 21.50
2/4TEC3F42C 51.75 23.50
2/4TEC3F48B 57.90 23.50
2/4TEC3F55B 57.90 26.00
2/4TEC3F60B 57.90 23.50
