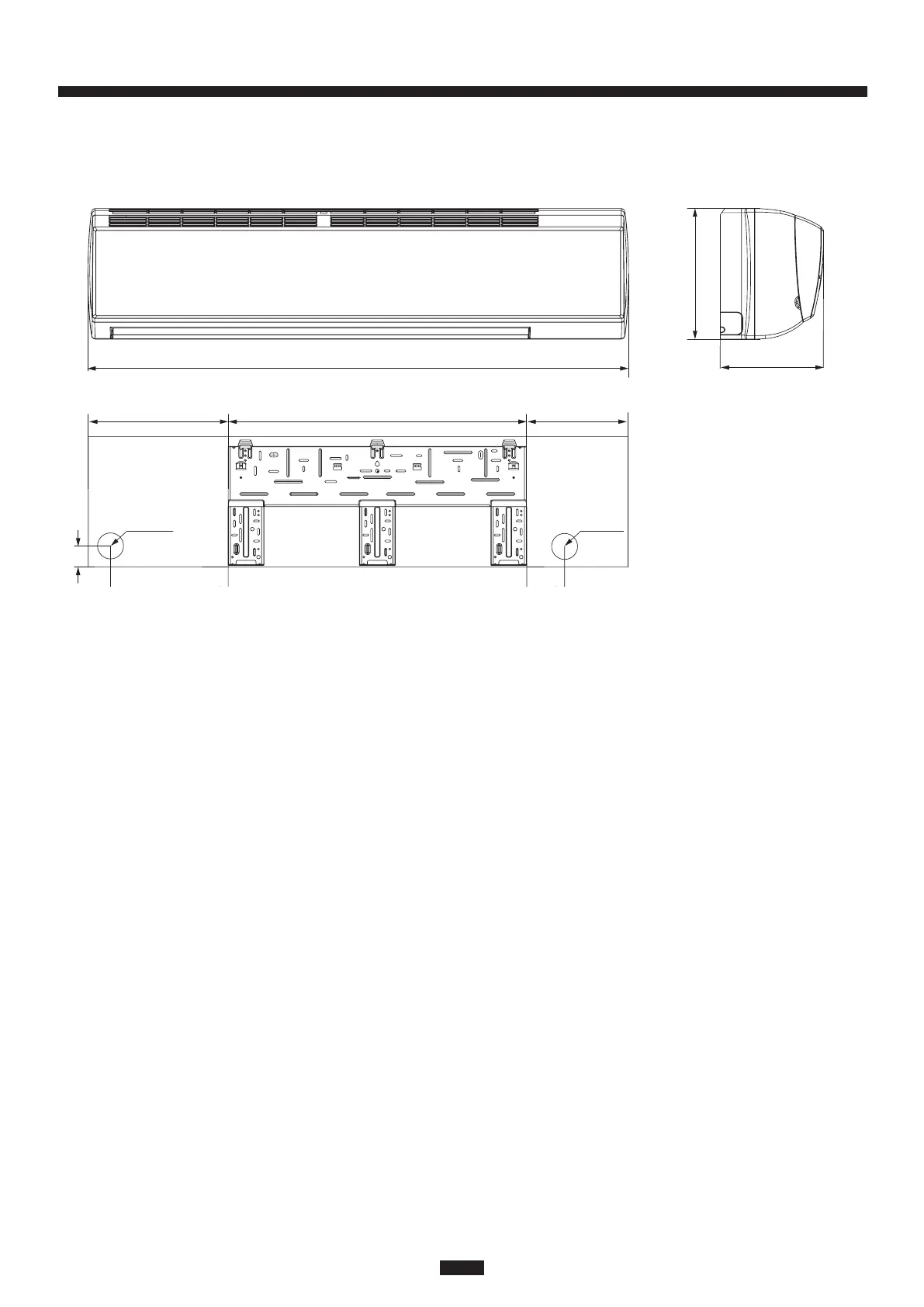

Indoor Unit Dimensions
30K-36K
53 1/8 (1349.4)
12 13/16 (325.4)
10 (254)
11 5/8 (295.3)
3 1/2 (88.9)
1 9/16
13 13/16 (350.8) 10 (254)29 3/8 (746.1)
Φ2 3/4 (69.9)
Φ2 3/4 (69.9)
Unit: inch (mm)
The dimensions in these drawings
are rounded according to standard
measurement.
