Trane 4NXCA024AC3HCA - Outline Drawings

18-AD28D1-2 9
Installer’s Guide

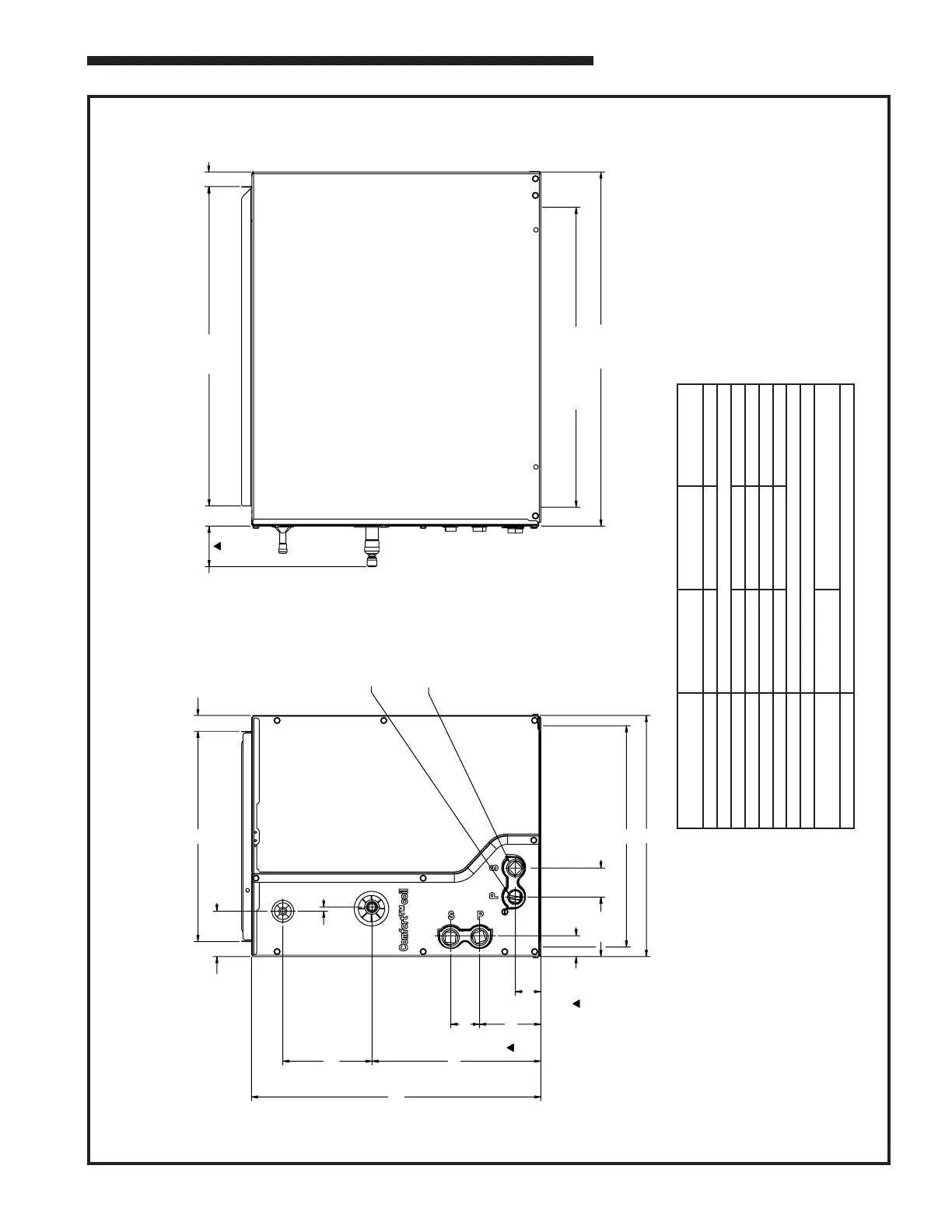

Outline Drawing for 4NXCA018AC3HCA, 4NXCA024AC3HCA, 4NXCB025AC3HCA, 4NXCB031AC3HCA,
4NXCB032AC3HCA, and 4NXCB036AC3HCA
(All dimensions are in inches)
MODEL
4NXCA018AC3HCA 4NXCA024AC3HCA
4NXCB025AC3HCA 4NXCB031AC3HCA
4NXCB032AC3HCA 4NXCB036AC3HCA
WEIGHT (LBS.) 32 36 38 REFRIGERANT CONTROL TXV (NON-BLEED) HEIGHT "A" (IN.) 17-1/2 18-1/4 22-1/2 OVERALL WIDTH "B" (IN.) 14-1/2 17-1/2 17-1/2 OPENING WIDTH "C" (IN.) 13-5/8 16-5/8 16-5/8 TOP OPENING "D" 12-3/4 15-3/4 15-3/4 GAS CONNECTION 3/4 BRAZE LIQUID CONNECTION 3/8 BRAZE MATCHED FURNACE WIDTH (NO ADAPTER REQUIRED)
14-1/2 17-1/2
DRAIN PAN PLASTIC
From Dwg. D344665
Dimension may vary slightly by coil model
15/16
D
2-3/4
1/4
5-3/8
A
1-3/4
3-11/16
1-9/16
1-1/4
3-5/8
1-3/4
C
PLUGGED SECONDARY DRAIN 3/4” NPT FOR VERTICAL POSITION
PRIMARY DRAIN 3/4” NPT FOR VERTICAL POSITION
B
18-1/8 OPENING IN WRAPPER
21-1/2
7/8
19-3/8
2-1/2
10-1/4
