88-4TCA4001-1C-EN
9

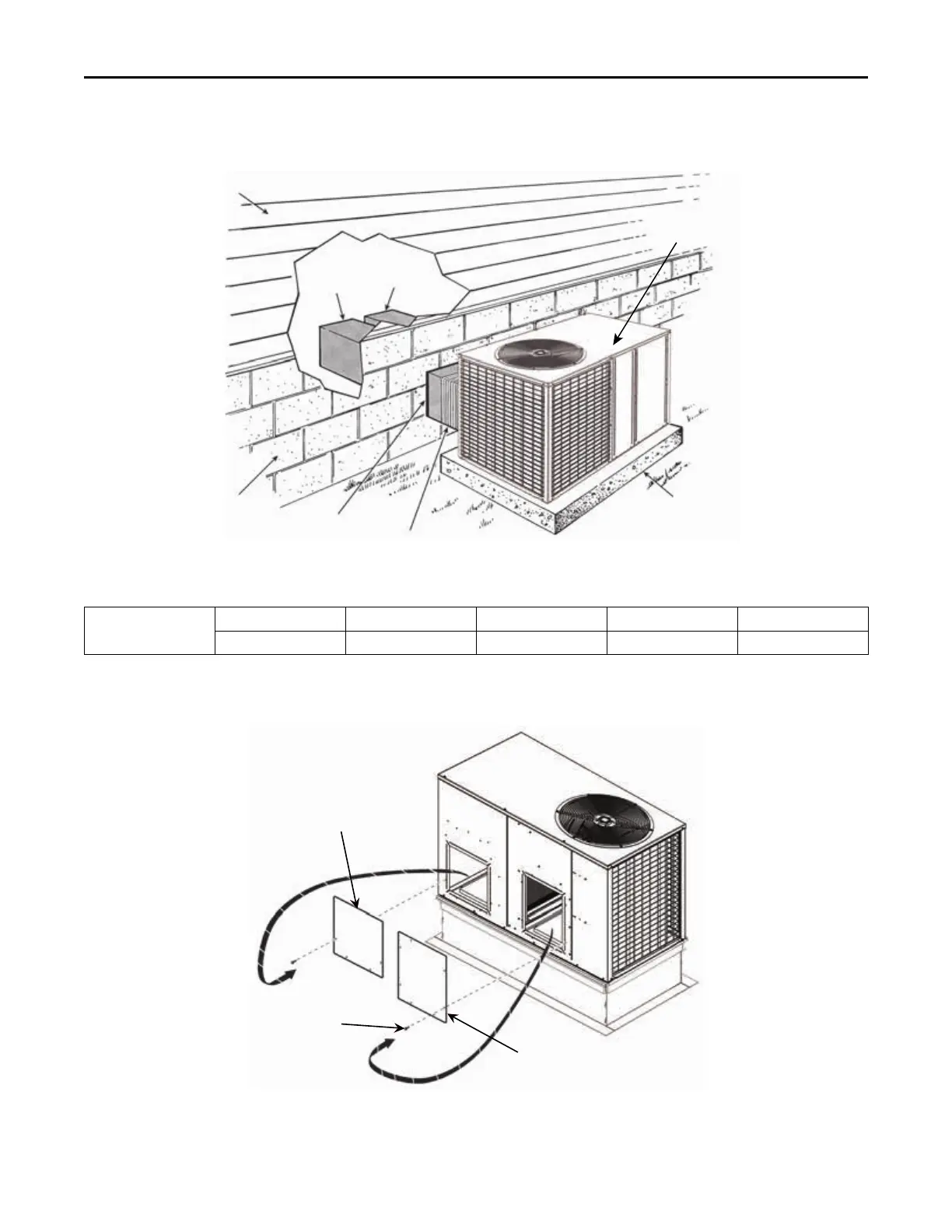

Figure 3. Typical Ground Level Application
NNoottee:: Use the extreme mounting kit, BAYEXMK003AA, to secure the unit to the slab.
SIDING
RETURN
AIR DUCT
SUPPLY
AIR DUCT
EXTERIOR
WALL INSULATE
WEATHERPROOF
OR RAIN SHIELD
FLEXIBLE DUCT
CONNECTORS
OUTDOOR
AIR DISCHARGE
SUPPORT PAD
FOUNDATION
Table 1. Recommended Service Clearance
Recommended
Service Clearance
BACK SIDE LEFT SIDE RIGHT SIDE FRONT SIDE TOP
0” 30” 42” 42” 36”
Figure 4. Converting Horizontal to Down Airflow
HORIZONTAL SUPPLY
AIR COVER
SHEET METAL
SCREWS
HORIZONTAL RETURN
AIR COVER
SStteepp 44 UUnniitt IInnssttaallllaattiioonn
