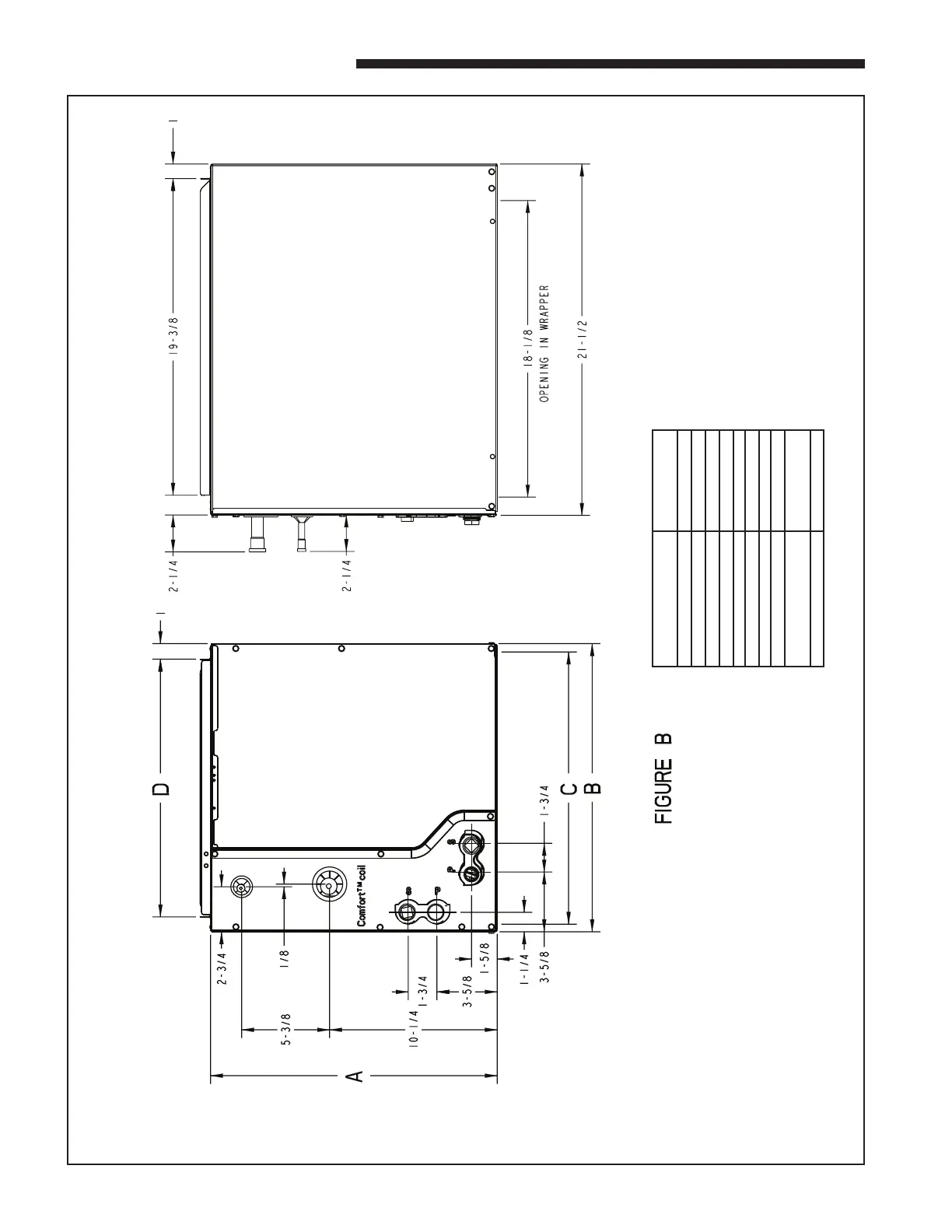

Trane 4TXCB004DS3HCA - Outline Drawing and Model Dimensions - Figure B

8 18-AD35D1-2D-EN
Installer’s Guide
From Dwg. D345686 RevA
MODEL 4TXCB003DS3
WEIGHT (LBS.) 50 REFRIGERANT CONTROL TXV (NON-BLEED) HEIGHT "A" (IN.) 17-1/2 OVERALL WIDTH "B" (IN.) 17-1/2 OPENING WIDTH "C" (IN.) 16-5/8 TOP OPENING "D" 15-3/4 GAS CONNECTION 3/4 LIQUID CONNECTION 3/8 MATCHED FURNACE WIDTH (NO ADAPTER REQUIRED)
17-1/2
DRAIN PAN PLASTIC
Outline Drawing for models: 4TXCB003DS3
