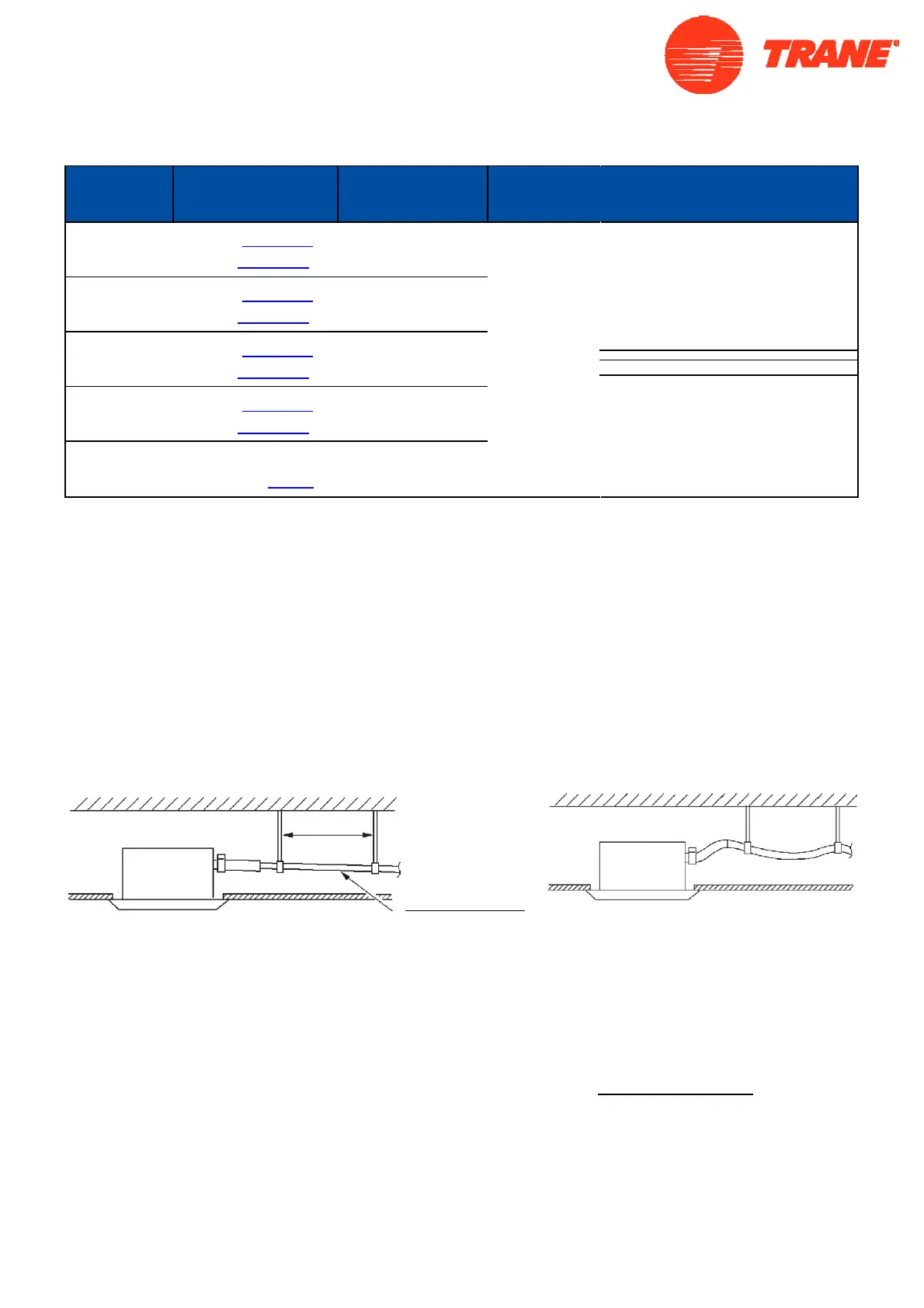

Pipe size Tighten torque A(mm)
Flare shape
4) 6.35
1420~1720N.cm
(144~176kgf.cm)
8.3-8.7
°°9050±.
R 0.4 ~ 0.8
4) 9.52
3270~3990N.cm
(333~407kgf.cm)
12.0-12.4
4) 12.7
4950~6030N.cm
(490~500kgf.cm)
12.4-16.6
4) 15.88
6180~7540N.cm
(630~770kgf.cm)
18.6-19.0
4) 19.05
9720-11860 N.cm
(990-1210 kgf.cm)
22.9-23.3
Installation of drain pipe
(1) Install drain pipe
Diameter of the drain pipe shall be greater than or equal to that of the connecting pipe .
(PE pipe: size: 25mm; O .D .: 32mm)
The drain pipe shall be short and have a downward slope of at least 1/100 to prevent pockets .
If it is impossible to provide sufficient slope to the drain pipe, a drain lift pipe shall be installed .
To avoid bending of the drain pipe, hangers shall be kept 1-1 .5m away from each other .
lo
Correct Wrong
Use a drain hose and clamp .
Insert the drain hose into the drainage outlet until it reaches the white tape . Then tighten the clamp .
Correct Wro
Large-s ze sealing gaske
For heat insulation, wind the drain hose with sealing gaskets . Provide heat insulation to indoor drain hose .
(accessory)
Large-size sealing gasket
(accessory)
