Trane BAYECON103AA - Economizer Wiring Diagrams (W7212 Logic); 4 YCZ6 Connection Diagram

11
INSTALLER’S GUIDE

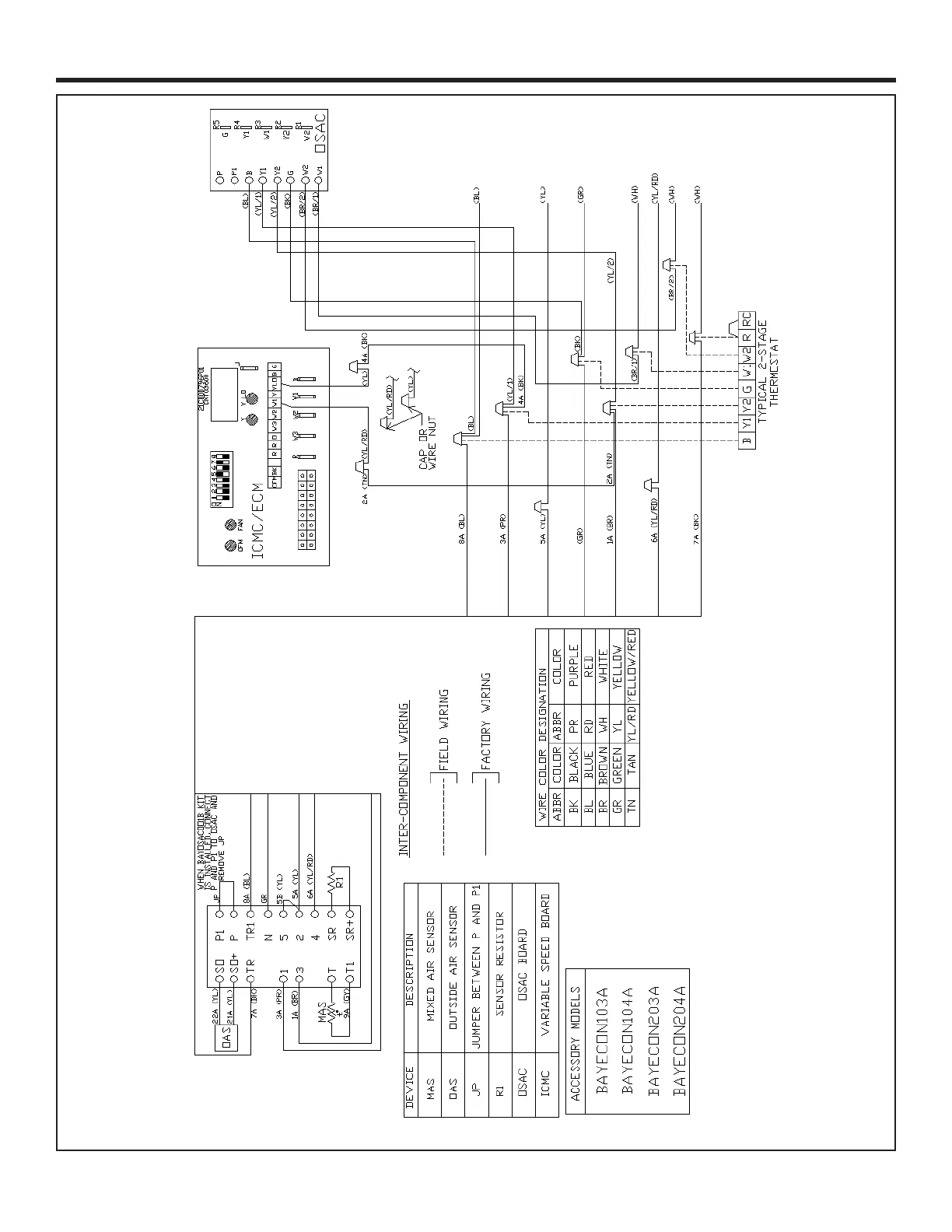

Figure 15. 4YCZ6 Economizer Connection Diagram
IMPORTANT-Retain this wiring diagram; please return this document to service information pack upon completion of work.
Wiring Diagram for Economizer Using a Honeywell W7212 Logic
