Trane BAYECON103AA - Illustrations; Remove Panels

3
4WCZ6, 4YCZ6, or 4DCZ6 Unit
Top Sealing
Flange
Horizontal
Return Air
Panel
Down Flow
Return Air
Panel
Coils Access
Panel
Blower Access Panel
Control Box
Access Panel

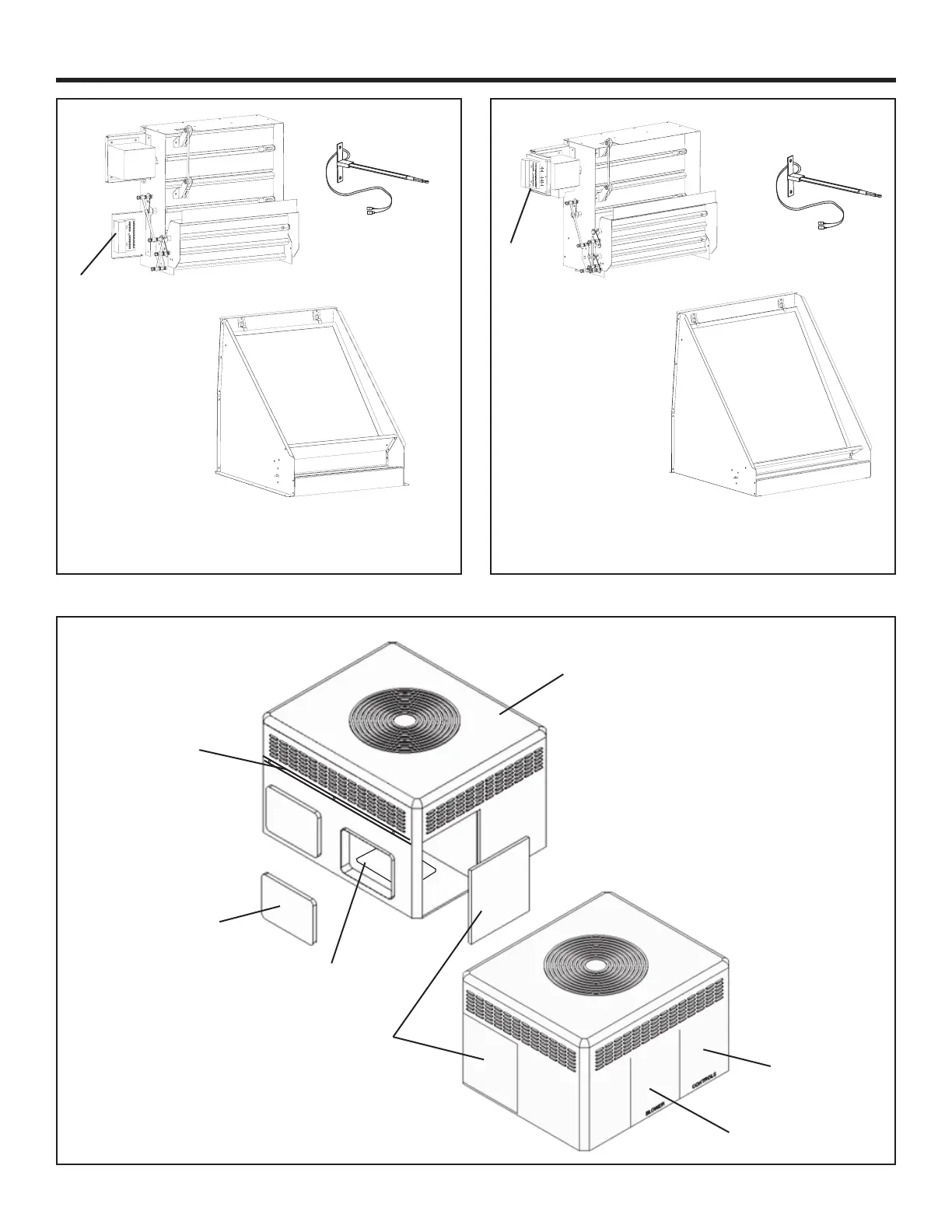

Figure 3. Remove Panels
INSTALLER’S GUIDE
Figure 1. BAYECON103AA/AB Economizer Kit Components
4WCZ6, 4YCZ6, & 4DCZ6036
Figure 2. BAYECON104AA/AB Economizer Kit Components
4WCZ6, 4YCZ6, & 4DCZ6048-060
Mixed Air Sensor
Mixed Air Sensor
Logic
Module
Logic
Module
Economizer Assembly
Economizer Assembly
Return Air Damper
Flange Screw and
two (2) Mixed Air
Sensor
Sheetmetal Screws
(not shown)
Return Air Damper
Flange Screw and
two (2) Mixed Air
Sensor
Sheetmetal Screws
(not shown)
Mist
Eliminator
(Filter)
Mist
Eliminator
(Filter)
Rainhood Assembly
Rainhood Assembly
