6
INSTALLER’S GUIDE

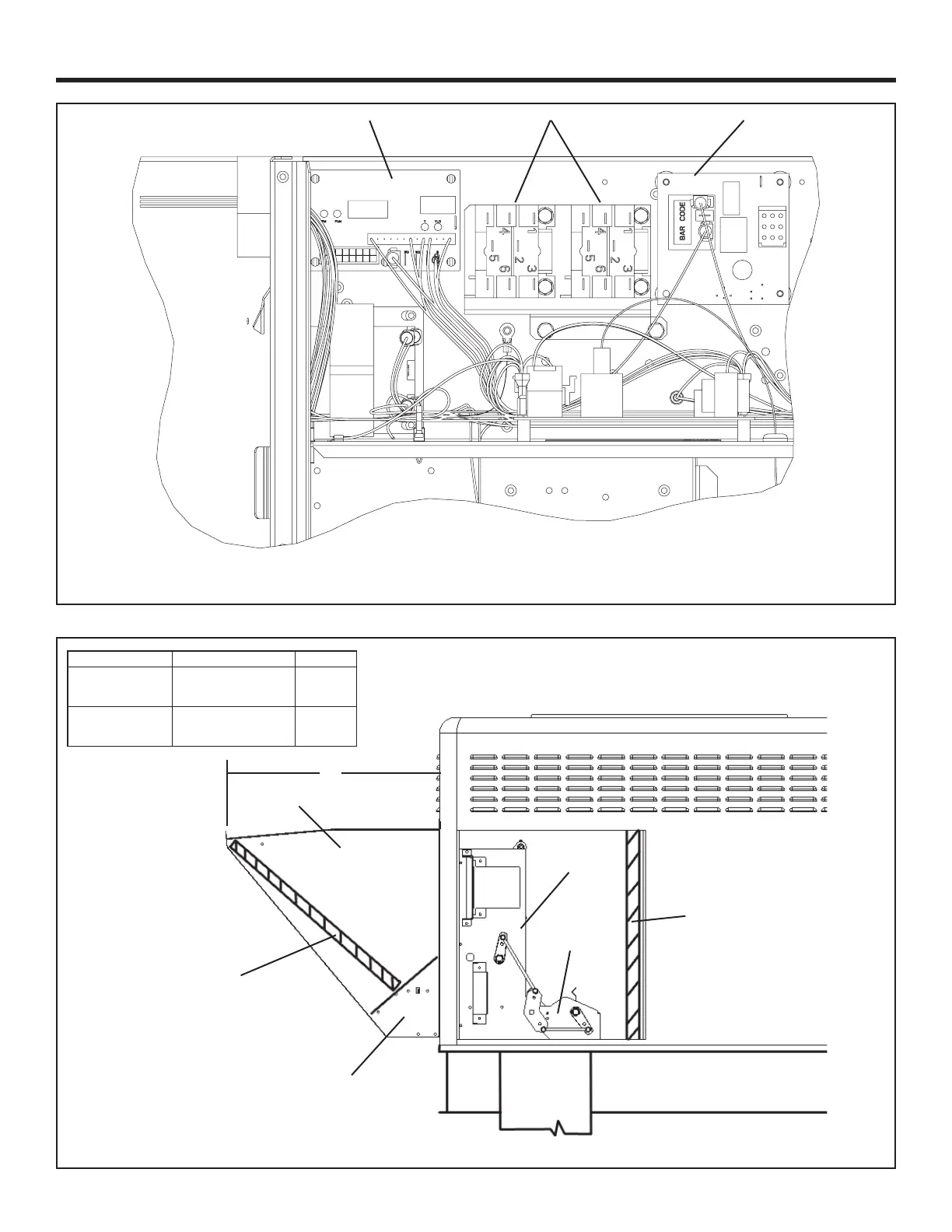

Figure 8. Mount BAYRLAY006A
ICMC Board Relays
DFC
Figure 9. Rain Hood, Economizer, and Filter
Economizer Rain
Hood
A
Mist Eliminator
(lter)
Relief Damper
Return Duct
Roofcurb
Required lter kit,
order separately
Outside air
dampers
Return air
dampers
Economizer Unit Application Models A
BAYECON103AA/AB
4WCZ6036A
4DCZ6036A
4YCZ6036A
20 1/8”
BAYECON104AA/AB
4WCZ6048-060A
4DCZ6048-060A
4YCZ6048-060A
24 3/8”
