INSTALLER'S GUIDE
Important: The BAYEV* electric heat accessory may include up to a combination of three 30 and/or 60 amp circuit break-
ers to provide an electrical disconnect for service personnel that is intended to help protect internal electrical components
in the event of a short circuit or ground fault. As designed, the circuit breakers supplied in the BAYEV* accessory DO NOT
provide overcurrent protection of the branch circuit. Therefore, the branch circuit(s) shall be sized and protected according
to the unit nameplate.

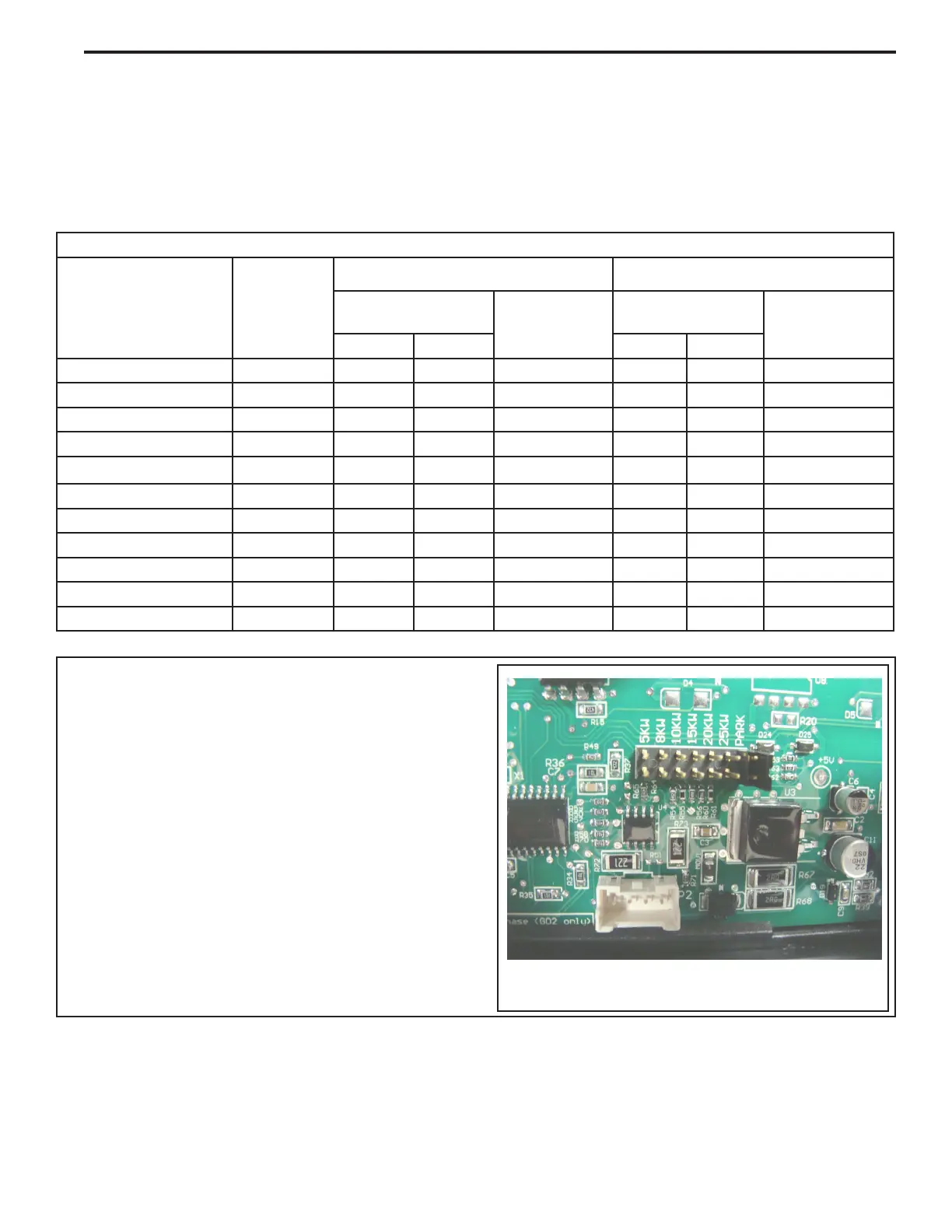

Control Board Jumper Settings
When the heater comes from the factory, the jumper will be
in the PARK position. The board is already configured for the
heater size that is required, so no adjustments are necessary.
NOTE: If the jumper is moved to another kW rating and
power is applied, the factory programming on the PARK
position is lost. The jumper must then be applied to the
appropriate rating per the heater model number.
Heater Data
Table 3.1 BAYEV -- HEATER DATA
Heater Model No.
Number of
Circuits
240 VOLT 208 VOLT
Capacity
Heater Amps
per Circuit
Capacity
Heater Amps
per Circuit
kW BTUH kW BTUH
BAYEVAC05BK1AA 1 4.80 16400 20 3.60 12300 17.3
BAYEVAC05LG1AA 1 4.80 16400 20 3.60 12300 17.3
BAYEVAC08BK1AA 1 7.68 26200 32 5.76 19700 27.7
BAYEVAC08LG1AA 1 7.68 26200 32 5.76 19700 27.7
BAYEVAC10BK1AA 1 9.60 32800 40 7.20 24600 34.6
BAYEVAC10LG1AA 1 9.60 32800 40 7.20 24600 34.6
BAYEVBC15BK1AA 2 14.40 49200 40/20 10.80 36900 34.6/17.3
BAYEVBC20BK1AA 2 19.20 65600 40/40 14.40 49200 34.6/34.6
BAYEVAC10LG3AA 1-3 PH 9.60 32800 23.1 7.20 24600 20.0
BAYEVBC15LG3AA 1-3 PH 14.40 49200 34.6 10.80 36900 30.0
BAYEVCC25BK1AA 3 24.00 82000 40/40/20 18.00 61500 34.6/34.6/17.3
