CDHF-SVU01C-EN
8
General
Information

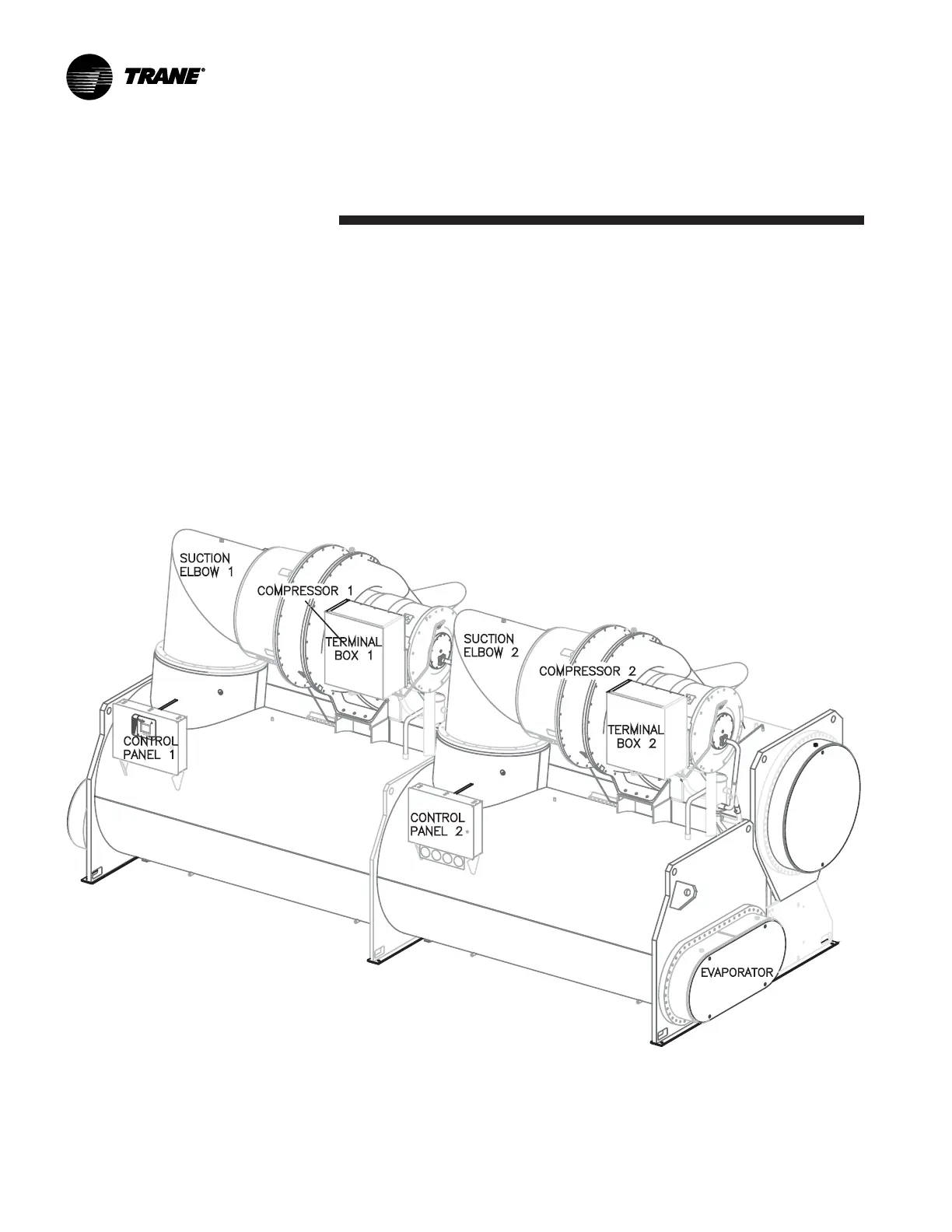

Figure 1. General Duplex unit components - front view
Overview
CDHF - CDHG
See Figure 1 for General Unit
components. Each Chiller unit is
composed of the following
components as viewed when facing
the control panel front side:
• Common Evaporator and Common
Condenser
• Compressors and Motor 1 (Left
hand), and 2 (Right hand)
• Economizers 1(LH), and 2 (RH),
• Purge 1(LH), and 2 (RH),
• Oil Tank/ Refrig. Pump 1 (LH), and 2
(RH),
• Control Panel 1 (LH), and 2 (RH)
• And when specified Unit mounted
Starters 1 (LH) and 2 (RH) (not
shown).
