Trane CleanEffects Air Filtration System User Manual

32-5035-02 2
User’s Information

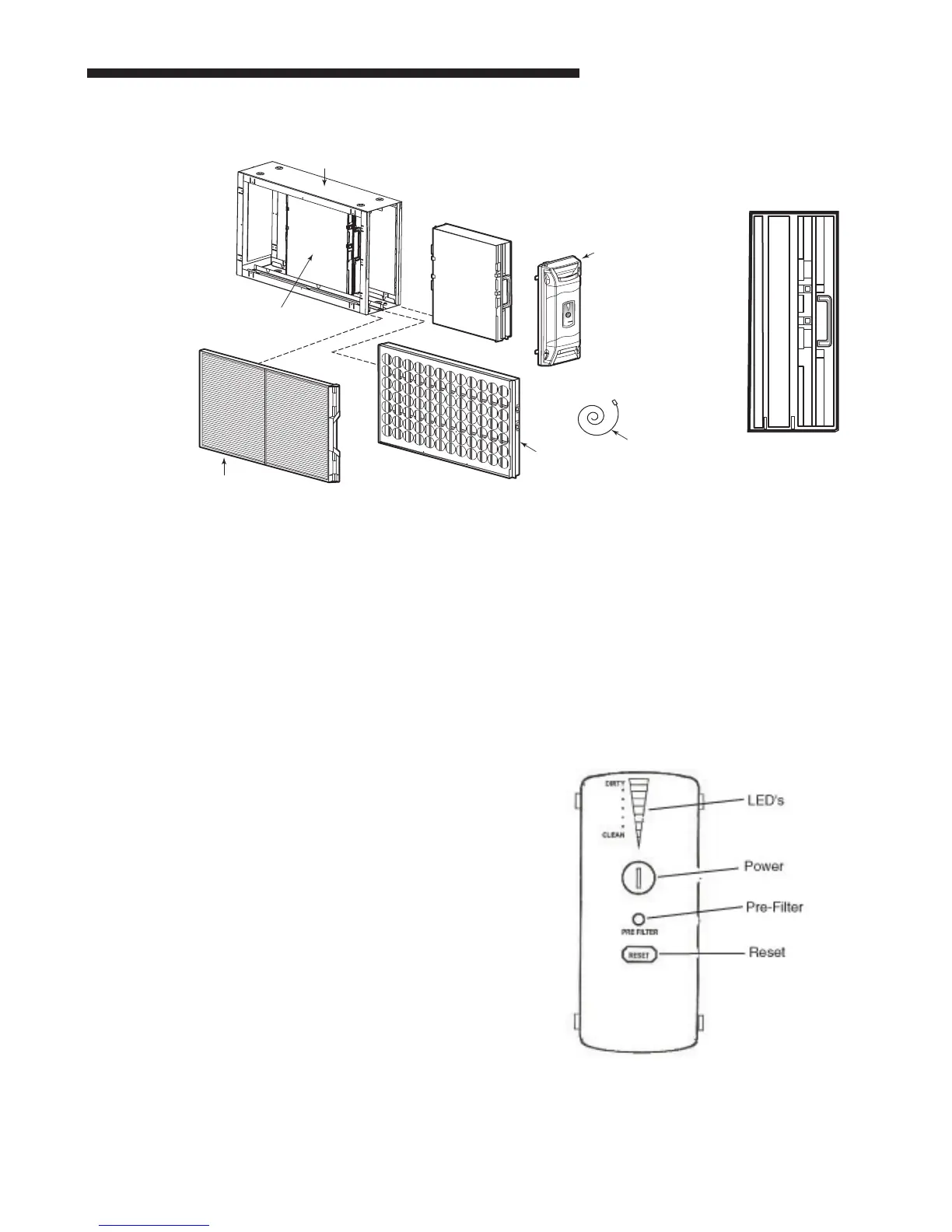

Figure 1. COMPONENTS OF THE TRANE CLEANEFFECTS
TM
1) Pre-filter - Traps large particles such as hair and lint
before they can enter the cell section.
2) Field Charger - Charges the contaminants. Only to be
serviced by a qualified technician.
3) Collection Cell (2) - Removes and collects very small
impurities from the air.
4) Cabinet - Mounts between the furnace or air handler
and return air duct work and houses the collection cells,
field charger and pre-filter.
3
2
4
5
1
3
6
5) Power Door - The solid state power supply components
that convert the 24 Volt AC to the high-voltage, direct
current required to power the field charger and cells.
Allows access to the collection cells, field charger and pre-
filter.
6) 24 Volt Power Cable
DISPLAY FEATURES
The air cleaner display (Fig. 2) has the
following functions:
LED and Pre-filter lights display the operating
status of the air cleaner, indicating when to
clean the pre-filter or collection cells.
The LED display is also used in the set-up
mode, see page 5.
1 2 3
Fig. 1
Fig. 2
