A control must be used with the Dehumidier. Santa Fe oers the DEH 3000 proprietary control. The DEH
3000 allows homeowners to monitor and control relative humidity and proper ventilation levels in their
home. This control is also available with a remote sensing option.
Note: The DEH 3000 is sold separately and can be purchased through your local dealer or online. Other
thermostats are compatible with the Dehumidier.
CONTROLS
CAUTION!CAUTION!
DO NOT ALLOW THE 24V TERMINAL FROM THE DEHUMIDIFIER TO CONTACT
THE COM TERMINAL ON THE DEHUMIDIFIER OR DAMAGE TO THE
TRANSFORMERS WILL RESULT.
Circuit Breaker
To prevent damage to the 24 volt control
transformer, the Dehumidier comes with a
resettable circuit breaker. Check wiring for any
electrical short and repair before
resetting breaker. Resetting the circuit breaker
without correcting the electrical short may
result in transformer damage. Be sure to
check the electrical schematic in this manual
or inside the access panel of the
Dehumidier before making any control
connections. The reset button for the circuit
breaker can be found on the back of the unit.
Wiring Controls

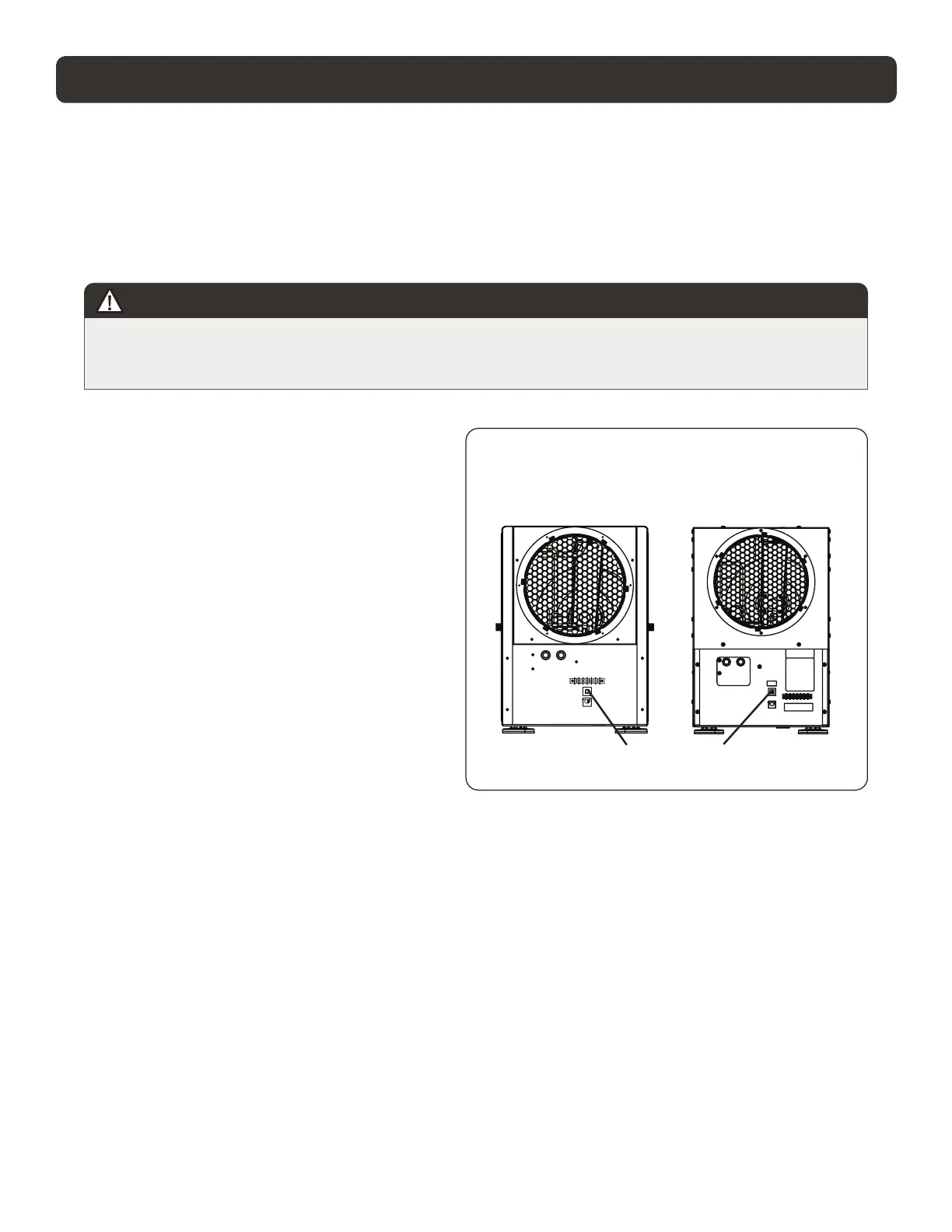

Rear View
EDHUM120
Circuit Breaker Reset Button
EDHUM098
