6 Numbers in [brackets] are for 50 Hz international systems. EAC-SF-13
Service Facts
WARNING
!
HAZARDOUS VOLTAGE! DISCONNECT ALL ELECTRIC
POWER, INCLUDING REMOTE DISCONNECTS BEFORE
SERVICING. FOLLOW PROPER LOCKOUT/TAGOUT
PROCEDURES TO ENSURE THE POWER CAN NOT BE
INADVERTENTLY ENERGIZED. FAILURE TO
DISCONNECT POWER BEFORE SERVICING COULD
RESULT IN DEATH OR SERIOUS INJURY.
PROCEDURE:
1) Remove electrical power going into the air handler.
2) On the communicating systems air handler, remove
the blower access panel.
3) Connect Red stripped wire to "R" terminal on the
air handler terminal strip.
4) Connect Blue stripped wire to "B" terminal on the
air handler terminal strip.
5) Connect the brown wire from the air cleaner
harness to the "D" terminal on the Communicating
Systems Air Handler.
6) Connect the Black wire from the air cleaner wire
harness to earth ground by attaching the wire to a
grounded screw that is connected to the metal air
handler chassis or control plate assembly.
7) The Green and White wires on the air cleaner
wiring harness are unused in this application and
should be insulated separately.
8) Replace the blower access panel.
9) Reconnect electrical power to the air handler.
10) Check air cleaner and air handler operation.

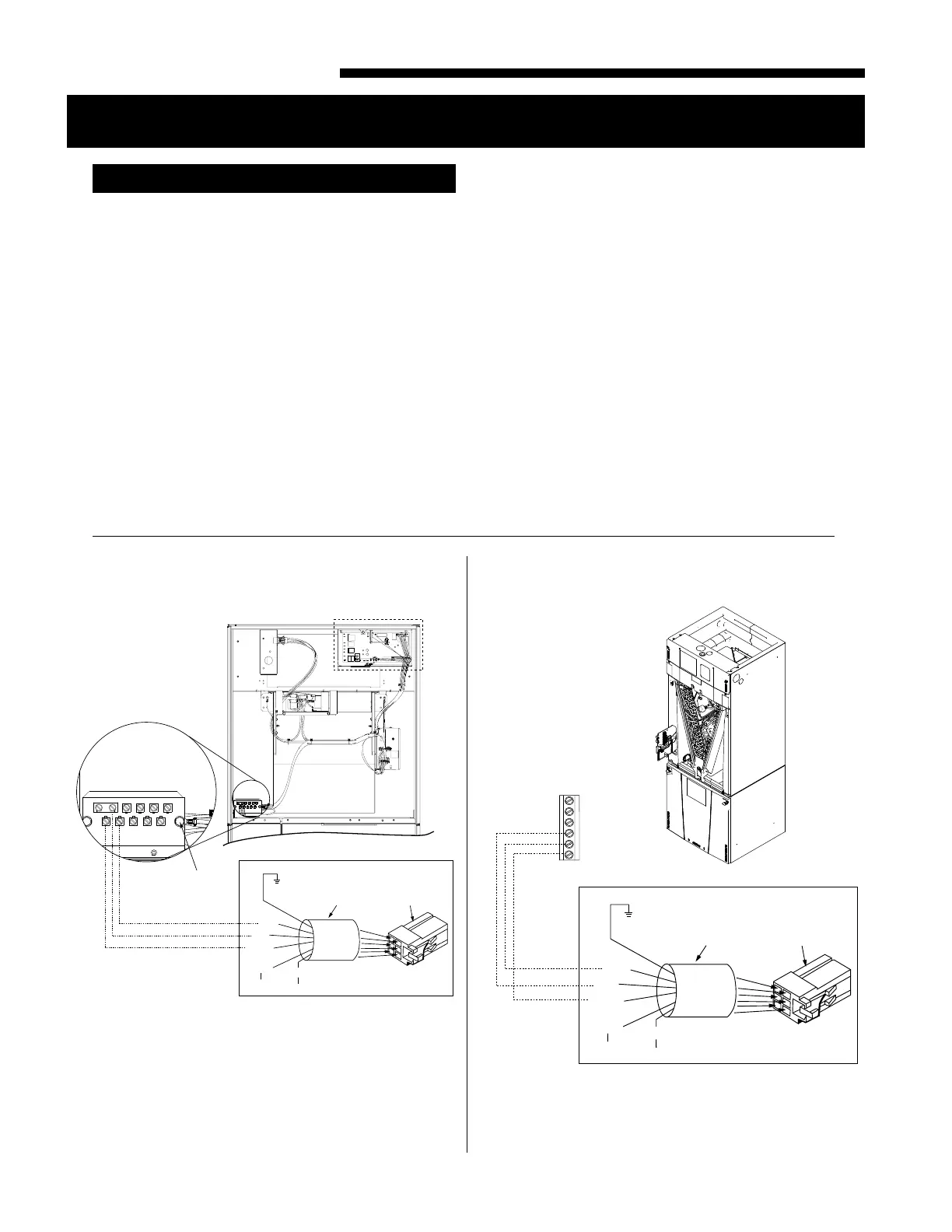

ELECTRICAL CONNECTIONS TO A COMMUNICATING SYSTEMS AIR HANDLER
IN COMMUNICATING MODE
4TEE3C A/TAM8
Indoor Unit
24V Terminal
Strip Detail
Control box panel cover
(Shown removed)
For use with Whole House
Air Cleaner
RED
BLUE
GREEN
WHITE
Unused
Black wire to
chassis
ground
Unused
BLACK
GRD
Air Cleaner
Plug
BROWN /
Dataline
Power / Control
Wiring Cable and Plug
For use with Whole House
Air Cleaner
RED
BLUE
GREEN
WHITE
Unused
Unused
BLACK
GRD
Air Cleaner
Plug
BROWN /
Dataline
Power / Control
Wiring Cable and Plug
O
D
R
B
Y1
Y2
