ACC-SVN240C-EN 9
Installation

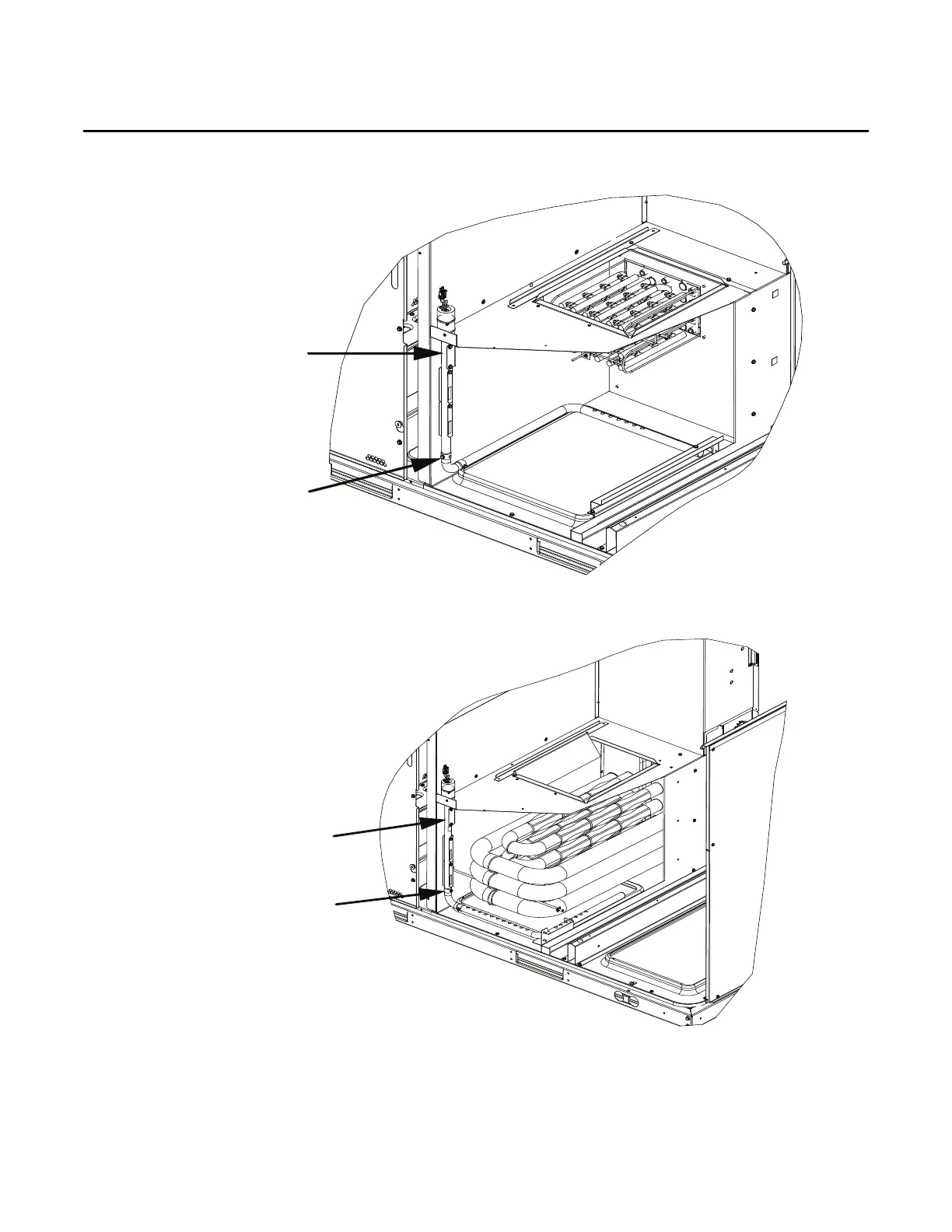

Figure 2. Vertical tube through the DAS hole - FIADAST001*
Figure 3. Vertical tube through the DAS hole - FIADAST002*
Insert the tube
through DAS hole
Use screw to connect
tube assemblies
Insert the tube
through DAS hole
Use screw to connect
tube assemblies
