Trane ProSpace PTHG0901GAA - Unit Disassembly (Continued); Component Removal Steps 26-32

30
PTAC-SVX004A-EN

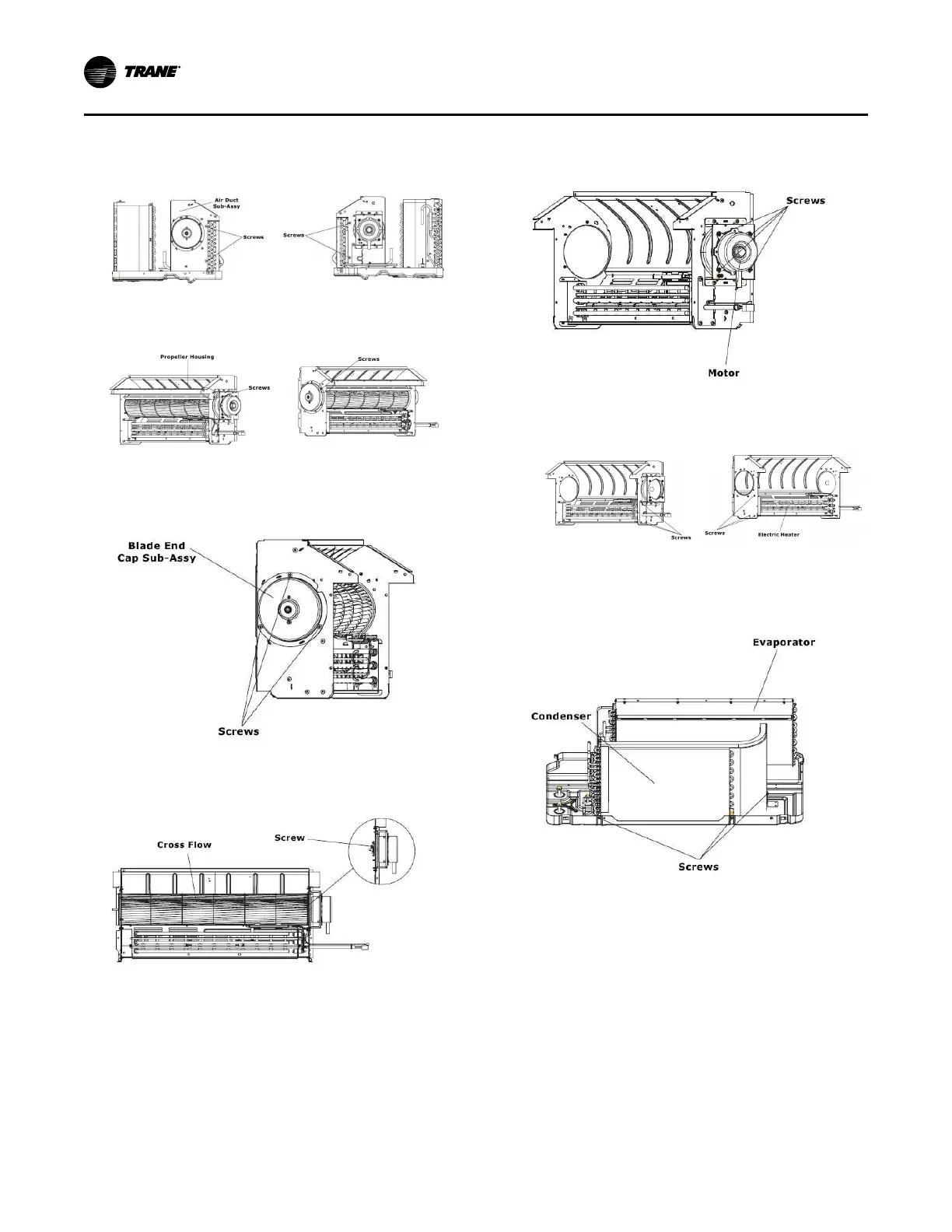

26. Remove four (4) screws holding the middle
connection board and then remove the middle
connection board.
27. Remove four (4) screws holding the propeller
housing and then remove the propeller housing.
28. Remove three (3) screws holding the blade end cap
sub-assembly and then remove the blade end cap
sub-assembly.
29. Remove screw holding the cross-flow blade and
then remove the cross-flow blade.
30. Remove four (4) screws holding the motor and then
remove the motor.
31. Remove six (6) screws holding the electric heater
and then remove the electric heater.
32. Pull the evaporator upwards to remove, the remove
three (3) screws holding the condenser. Pull
upwards to remove the condenser.
