RT-PRC007-EN34
Dimensional
Data

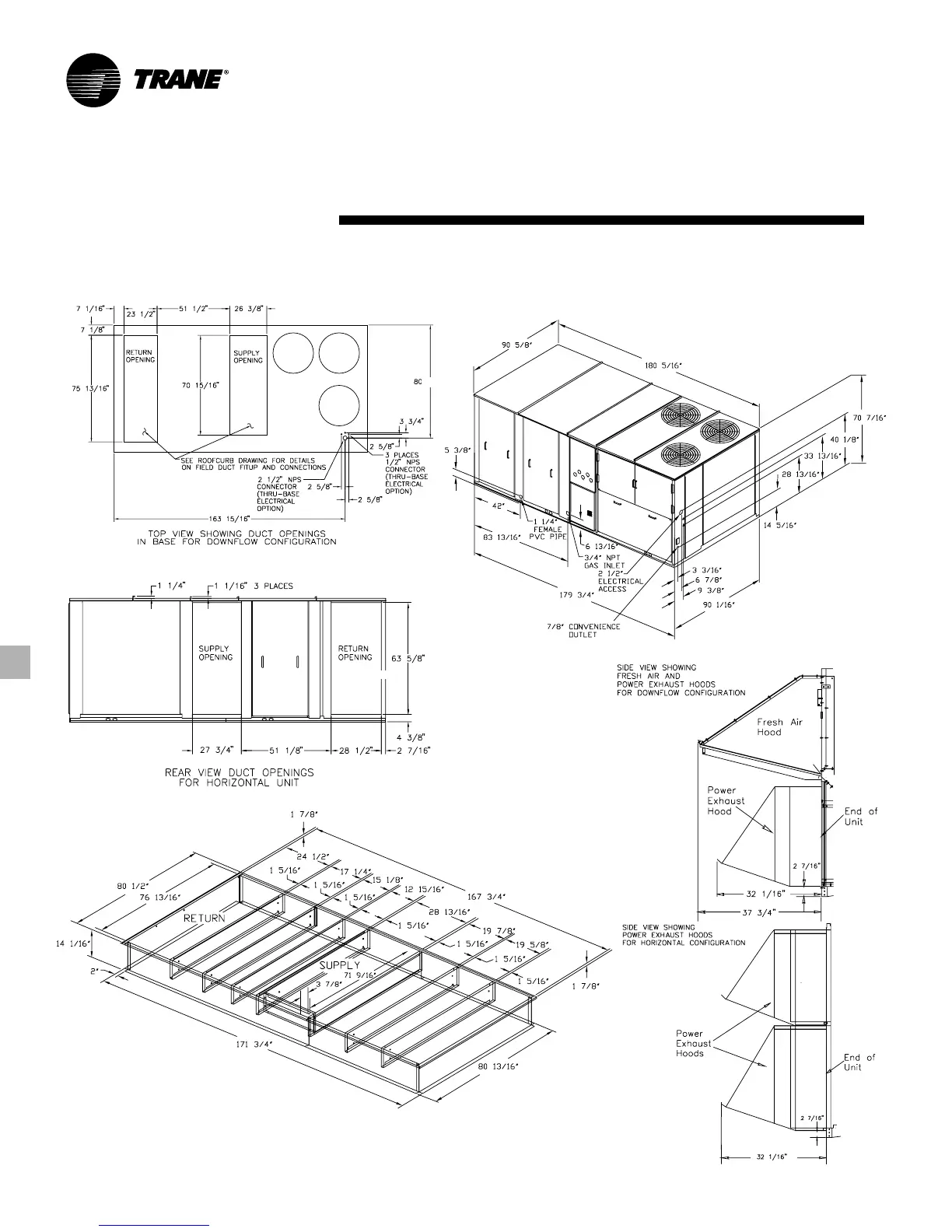

Figure DD-1 — 27 1/2 - 35 Tons (TC, TE, YC Low Heat)
NOTE: The Two Horizontal Power
Exhaust Hoods and the three
Horizontal Fresh Air Hoods are
located side by side. The Fresh
Air Hoods (not shown) extend only
23 15/16” from the end of the unit.
NOTES:
1. ALL DIMENSIONS INCHES.
2. THRU-BASE ELECTRICAL LOCATIONS
ARE PRESENT ONLY WHEN OPTION
IS ORDERED.
1/16
