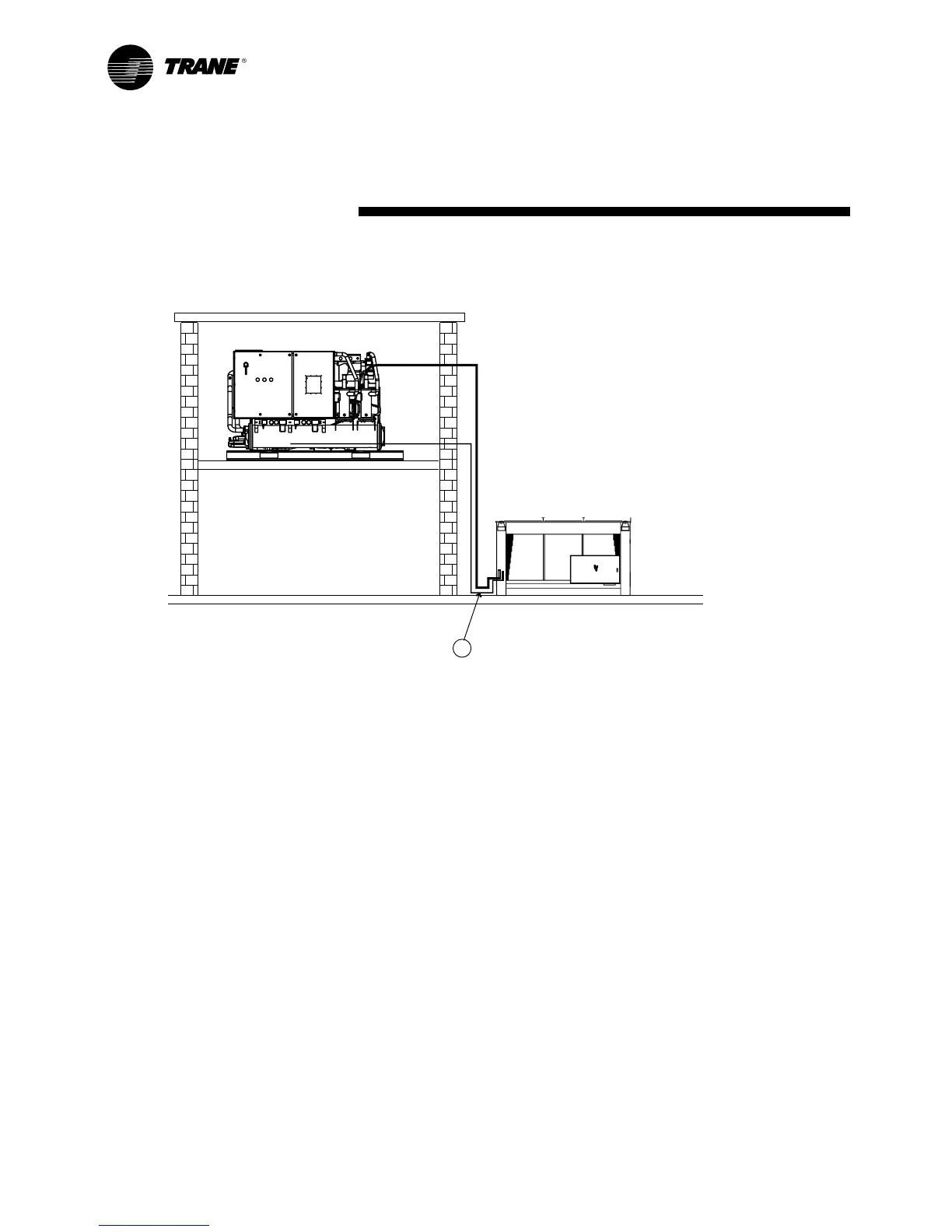

Figure 13: RTCA (or other manufacturer's condenser) below the RTUB
Limitations:The distance between the two units must not exceed 60 m in reality or the equivalent of 90 m taking into
account pressure drops. The height of the liquid line in relation to the condenser base must be less than 5 m.
Legend for Figures 11-12-13:
1 Discharge line connections
2 Liquid line connections
3 Trap
4 Counter-trap
RLC-SVX03A-E4
