Trane RunTru 17 Series

30 5/8
21 1/4
12 5/8
82
11 1/4
20
10 1/8
Unit: inch
35
13 3/8
27 5/8
15 1/4
38
14 1/4
22
9K-12K Outdoor Units
18K-24K Outdoor Units

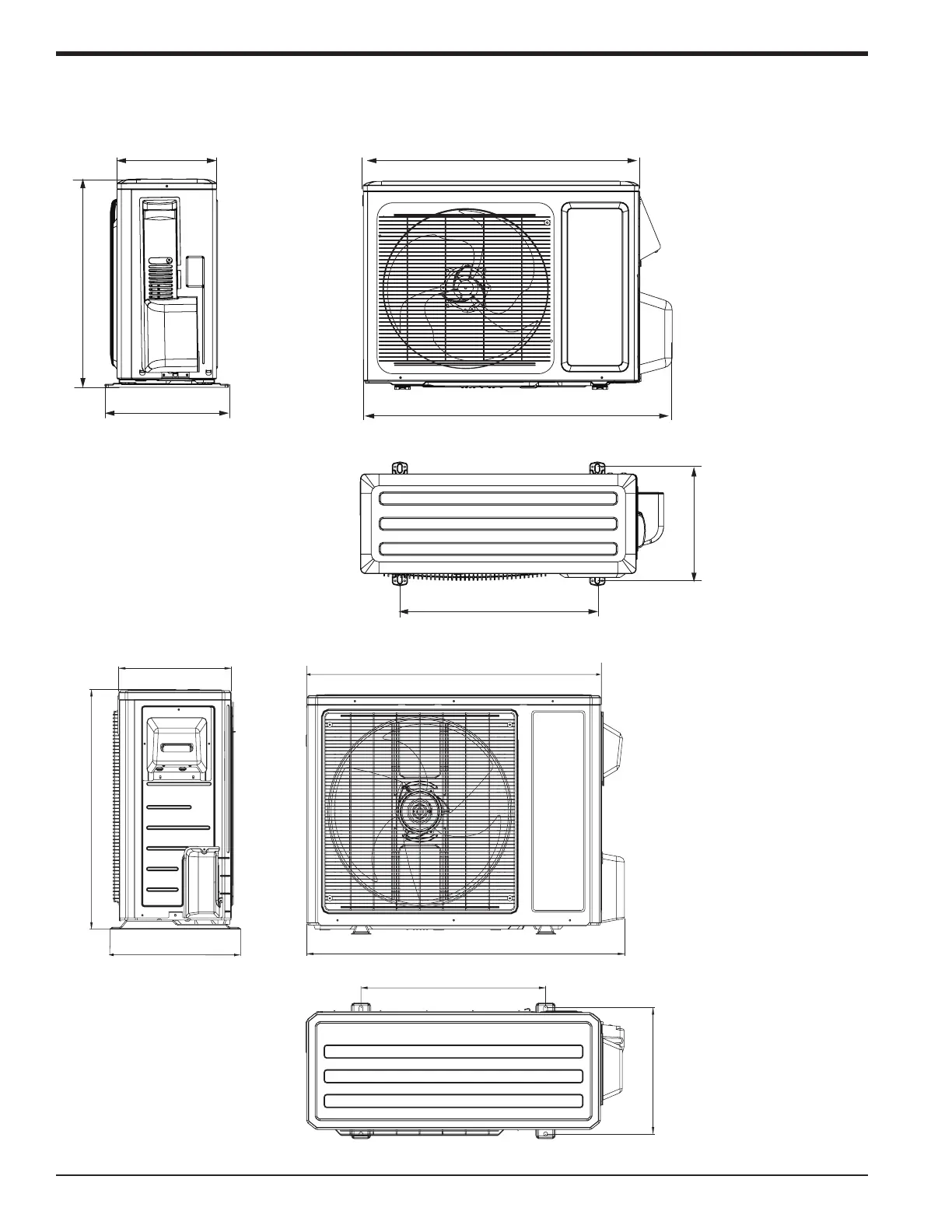

Outdoor Unit Dimensions
The dimensions in these drawings
are rounded according to standard
measurement.
