Furnace General Installation
The following sections give general instructions for the
installation of the gas furnaces.
S-Series Furnace Panel Removal
Note: For the S8X2 furnace, a 5/16” Allen wrench is required to
remove the four latches on the front panel.
Note: For the S8X1 furnace, a 1/4" nut driver is required to remove
the two screws at the top of the front panel. The front panel can
then be removed by lifting upwards.
Note: Tinnerman clips are provided in the doc pack if the door panel
flange hole(s) becomes stripped.

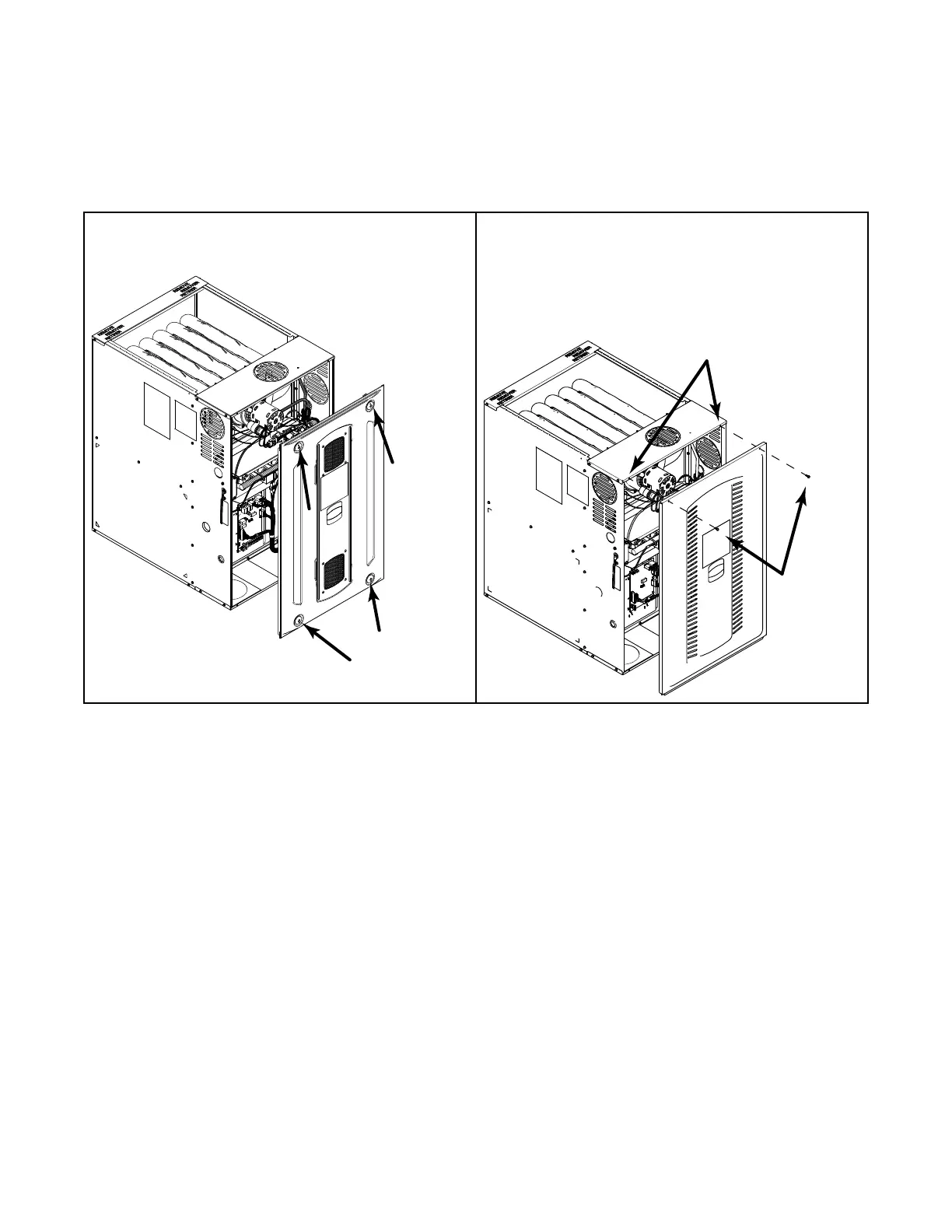

Tinnerman clip locations
(if needed)
